INSPECTION PROCEDURE K-1: Flasher Timer: Turn-Signal Lights Do Not Flash When The Turn-Signal Light Switch Is Operated.: Notes

NOTE: This troubleshooting procedure requires the use of scan tool MB991958 and SWS monitor kit MB991862. For details on how to use the SWS monitor, refer to "HOW TO USE SWS MONITOR ."

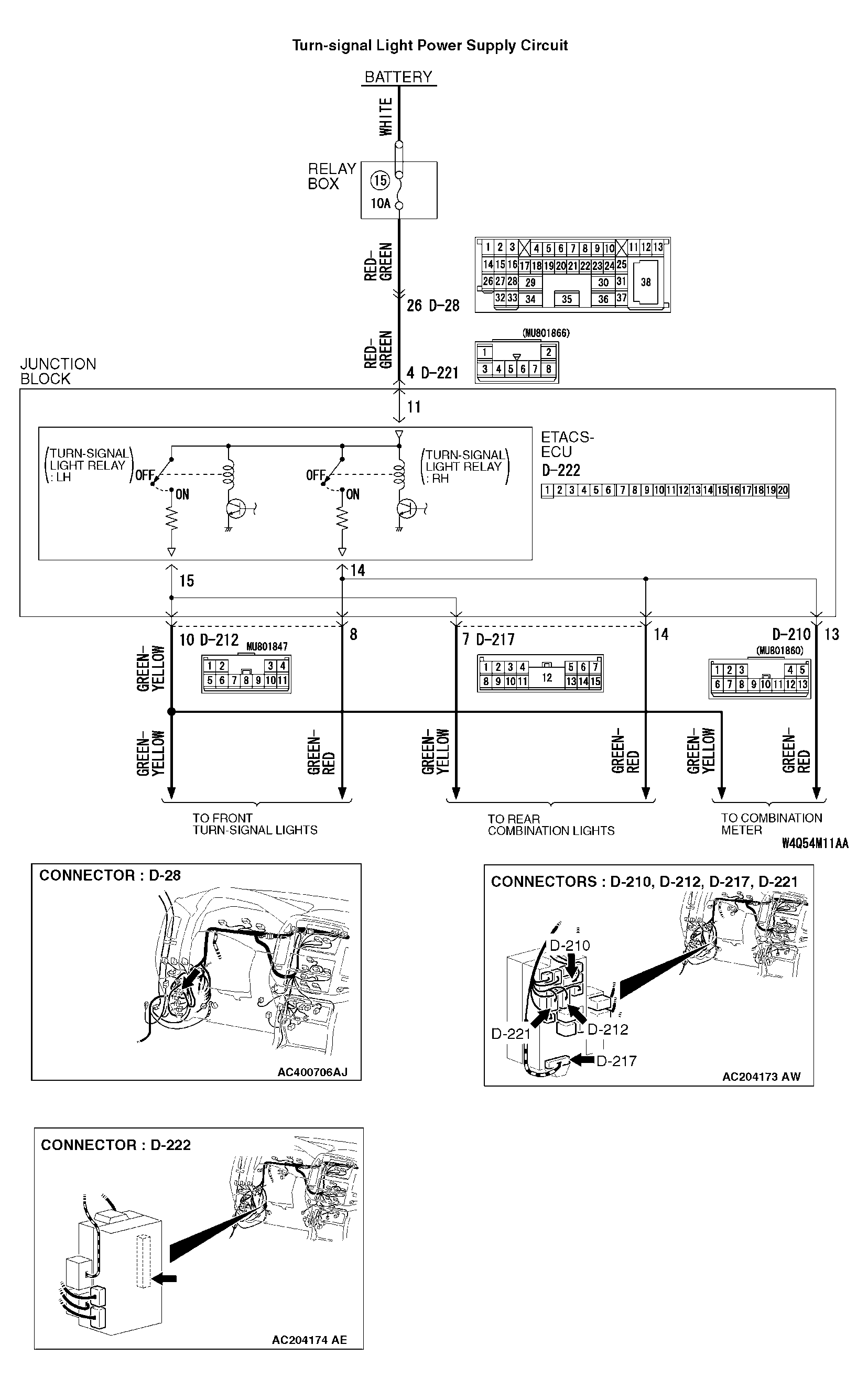

Fig 1: Turn-Signal Light Power Supply Circuit Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
