INSPECTION PROCEDURE D-5: Power Window: Front Passenger's And Rear Power Windows Do Not Work Normally By Operating The Power Window Main Switch.: Notes

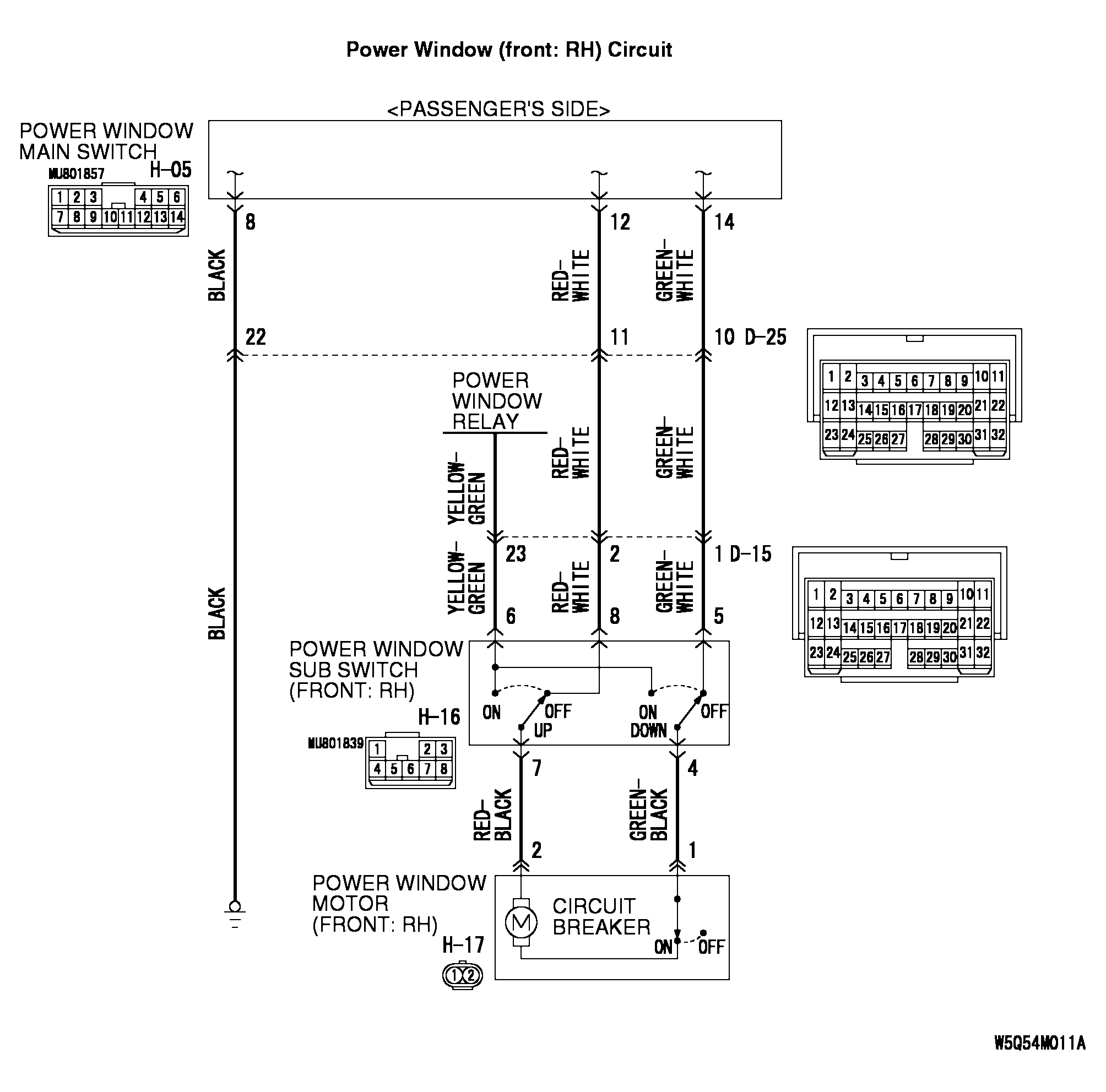

Fig 1: Power Window (Front: RH) Circuit Diagram
G04117348Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

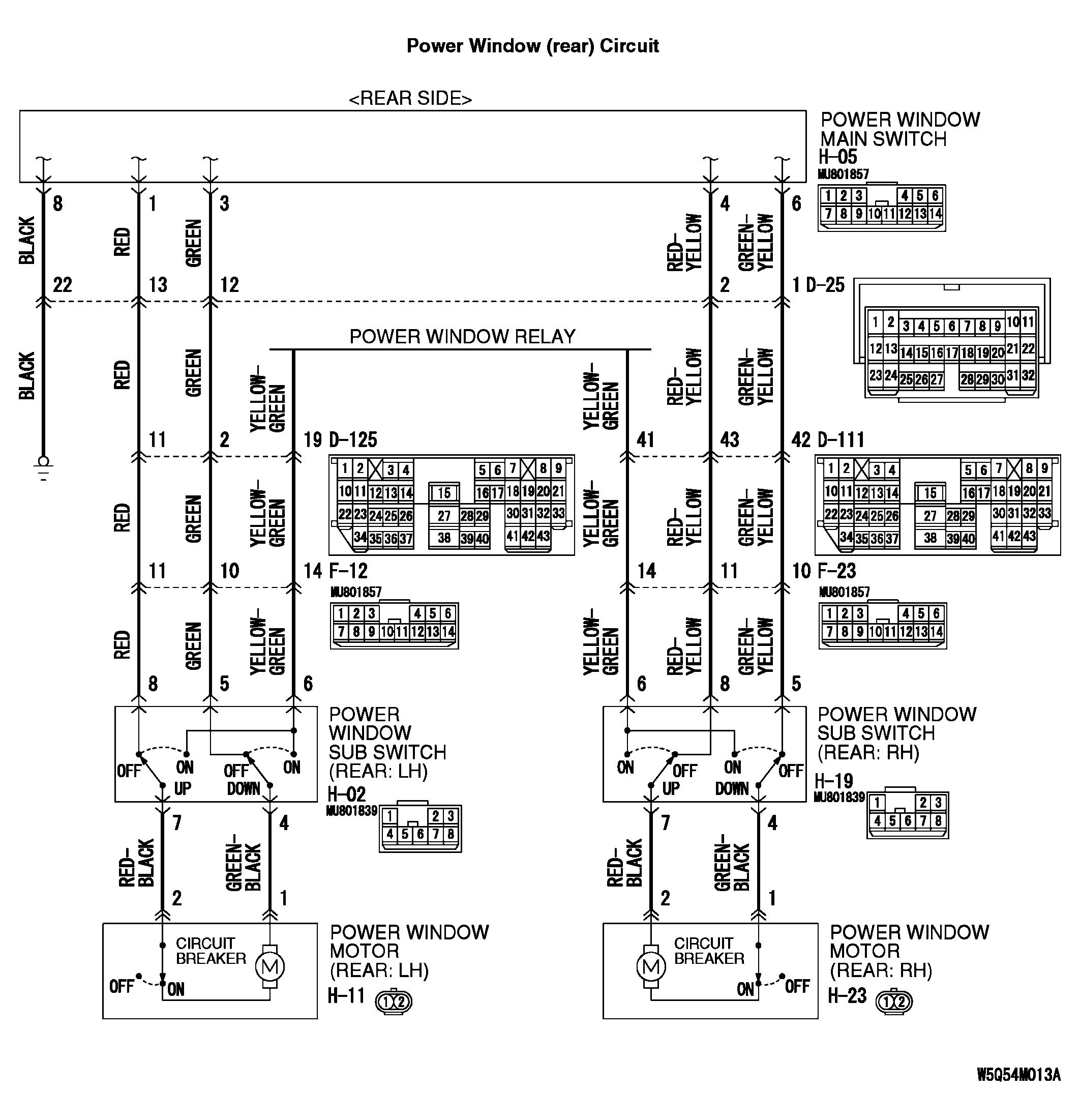

Fig 2: Power Window (Rear) Circuit Diagram
G04117349Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
