Fuel Level Sensor Resistance

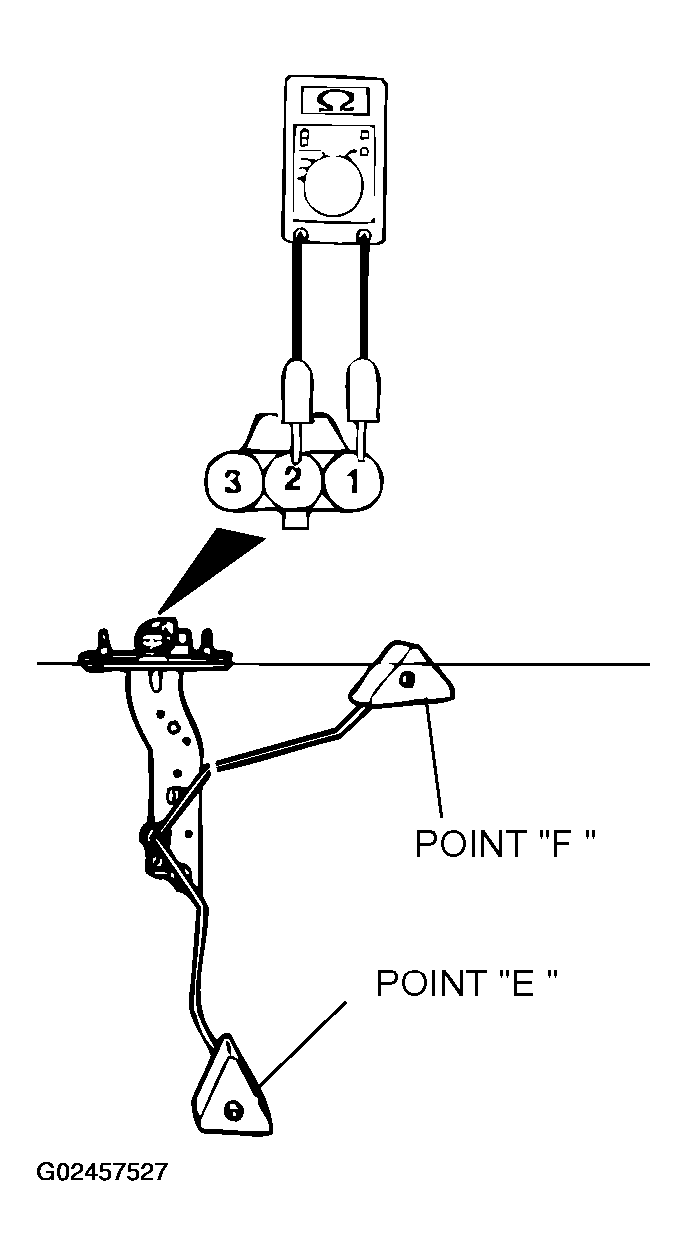

- Check that resistance value between the fuel gauge terminal and ground terminal is at the standard value when the fuel level sensor float is between point
- Standard value:
- Point "F": 3 - 10.1 Ω
- Point "E": 90 - 110 Ω
- Check that resistance value changes smoothly when the float moves slowly between point
- If all checks are correct, go to FUEL LEVEL SENSOR FLOAT HEIGHT CHECK . If any check is not correct, replace the fuel level sensor.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
