DTC 11, 12, 13, 14: ABS Sensor (Open/Short Circuit): Notes

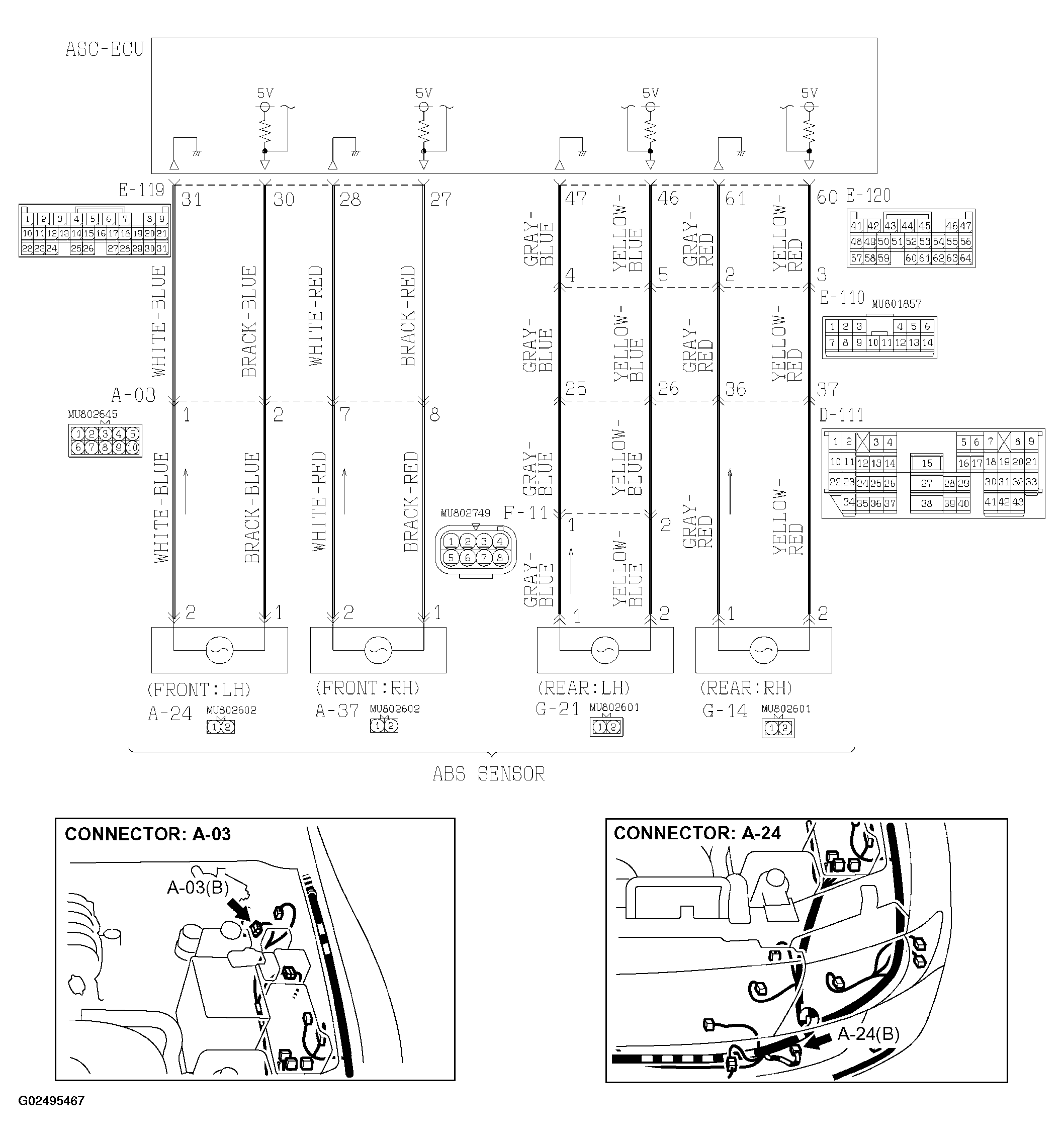

Fig 1: ABS Sensor - Circuit Diagram (1 Of 2)
G02495467Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

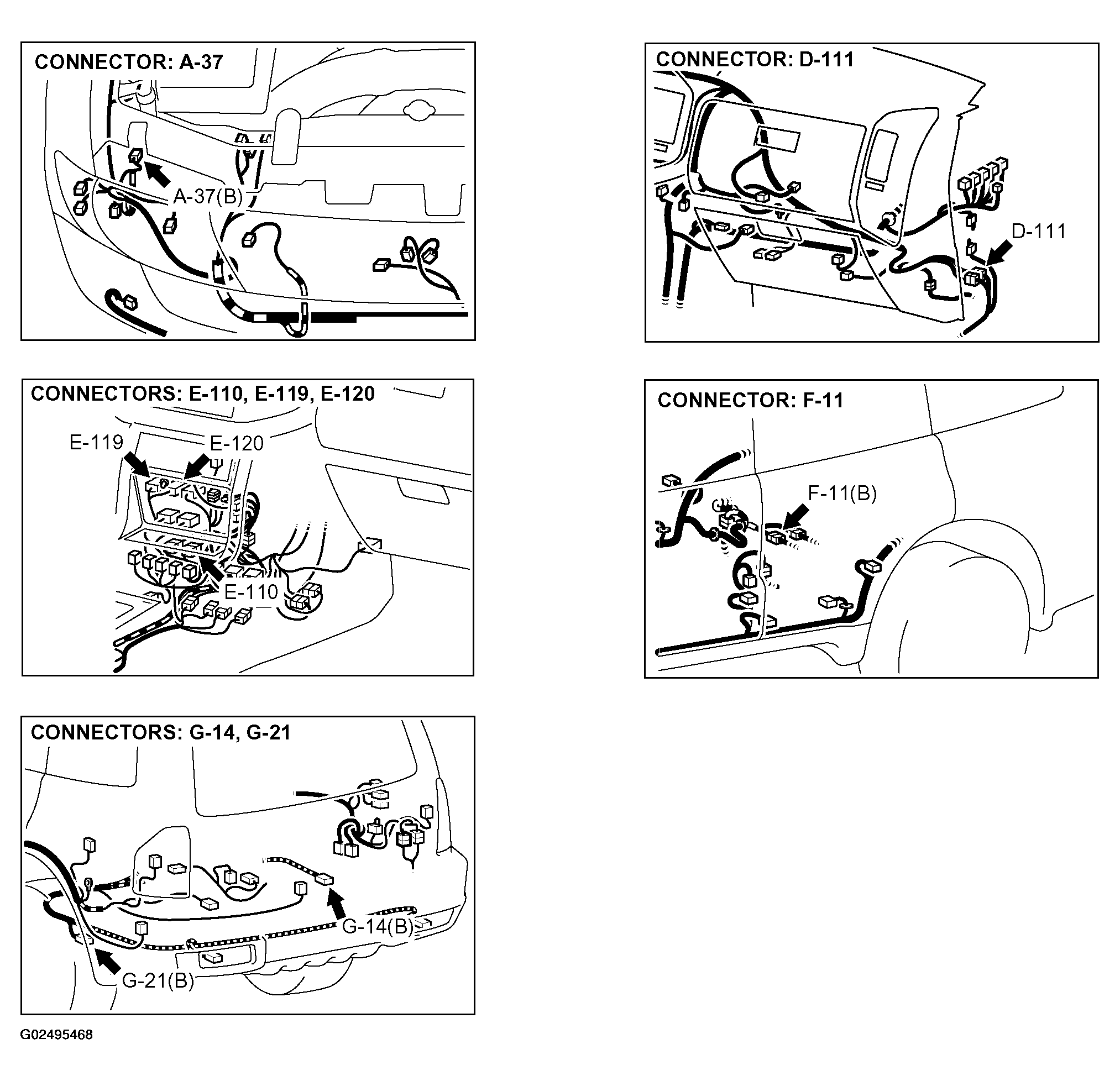

Fig 2: ABS Sensor - Circuit Diagram (2 Of 2)
G02495468Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
