<< A >> FCC Removal

When disconnecting the FCC, always pull the cable by gripping the connector, not the cable.

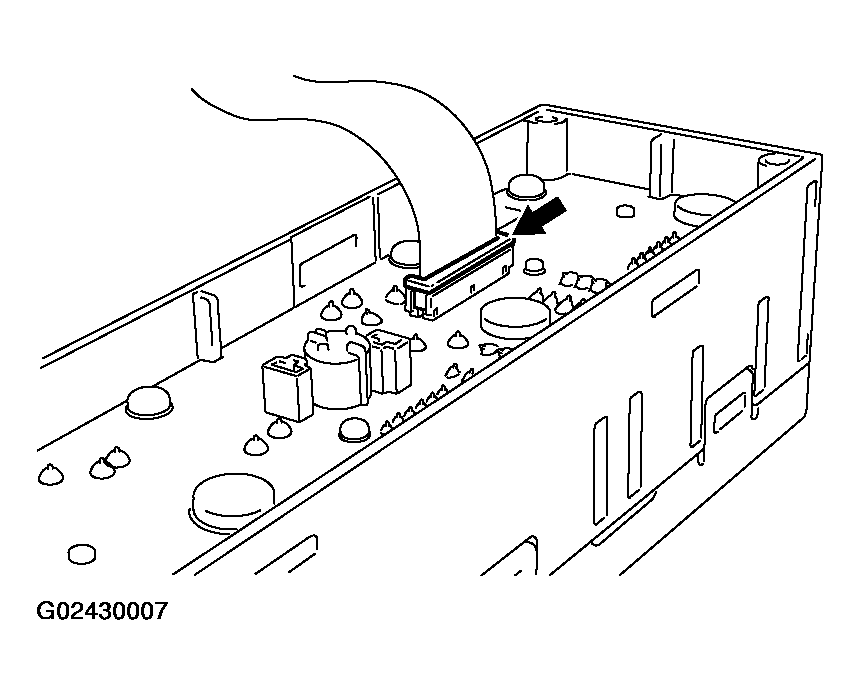

Fig 1: Identifying Connector Cable
G02430007Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
