A/C Switch

There should be continuity between terminals 10 and 13 while the switch is pushed.

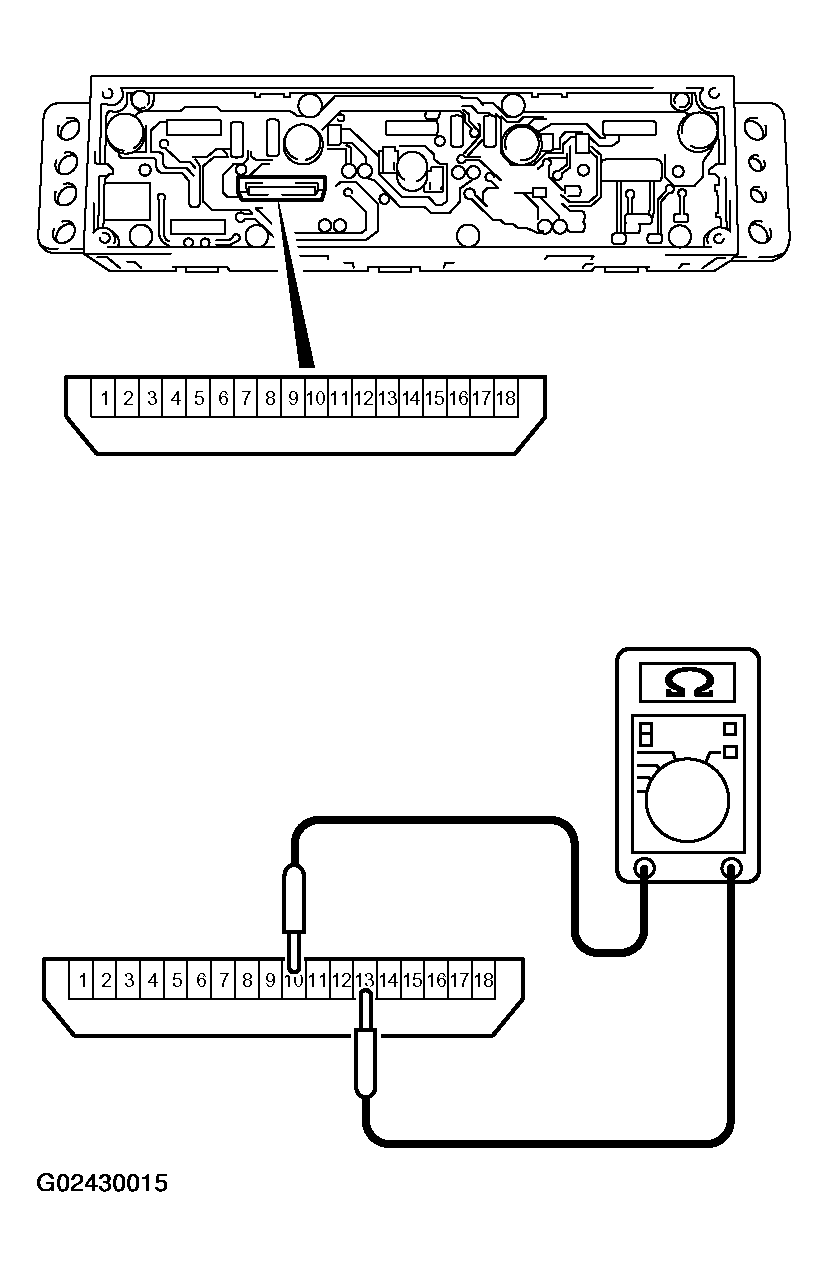

Fig 1: Checking Continuity Between Terminals 10 And 13
G02430015Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
