Temperature Adjustment Switch Continuity Check

Follow the table below to check the temperature adjustment switch for continuity.

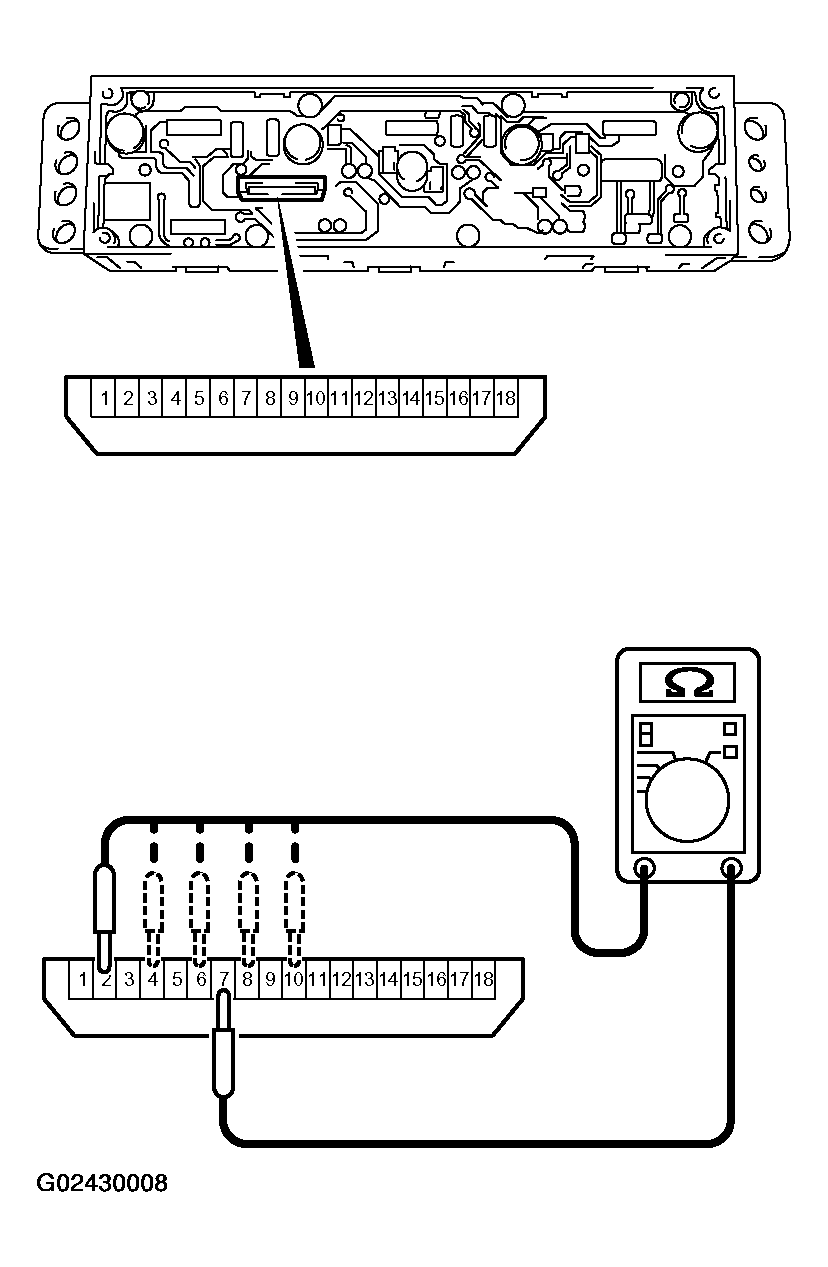

Fig 1: Checking Temperature Switch Continuity

G02430008

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

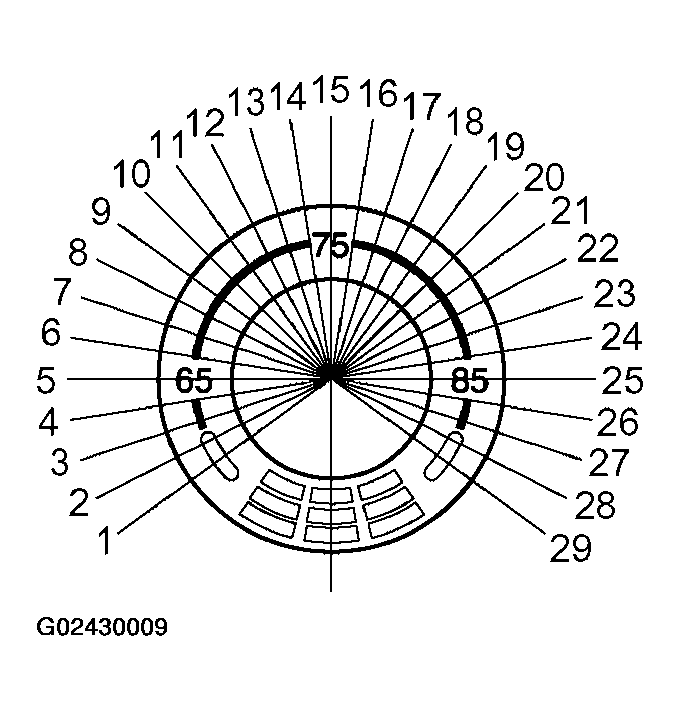

Fig 2: Identifying Temperature Adjustment Switch

G02430009

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

TEMPERATURE ADJUSTMENT SWITCH CONTINUITY CHECK

SWITCH POSITION	TESTER CONNECTION	SPECIFIED CONDITION
1	7 - 10	Less than 2 ohms
2	7 - 8, 7 - 10	Less than 2 ohms
3	7 - 8	Less than 2 ohms
4	6 - 7, 7 - 8	Less than 2 ohms
5	6 - 7, 7 - 8, 7 - 10	Less than 2 ohms
6	6 - 7, 7 - 10	Less than 2 ohms
7	6 - 7	Less than 2 ohms
8	4 - 7, 6 - 7	Less than 2 ohms
9	4 - 7, 6 - 7, 7 - 10	Less than 2 ohms
10	4 - 7, 6 - 7, 7 - 8, 7 - 10	Less than 2 ohms
11	4 - 7, 6 - 7, 7 - 8	Less than 2 ohms
12	4 - 7, 7 - 8	Less than 2 ohms
13	4 - 7, 7 - 8, 7 - 10	Less than 2 ohms
14	4 - 7, 7 - 10	Less than 2 ohms
15	4 - 7	Less than 2 ohms
16	2 - 7, 4 - 7	Less than 2 ohms
17	2 - 7, 4 - 7, 7 - 10	Less than 2 ohms
18	2 - 7, 4 - 7, 7 - 8, 7 - 10	Less than 2 ohms
19	2 - 7, 4 - 7, 7 - 8	Less than 2 ohms
20	2 - 7, 4 - 7, 6 - 7, 7 - 8	Less than 2 ohms
21	2 - 7, 4 - 7, 6 - 7, 7 - 8, 7 - 10	Less than 2 ohms
22	2 - 7, 4 - 7, 6 - 7, 7 - 10	Less than 2 ohms
23	2 - 7, 4 - 7, 6 - 7	Less than 2 ohms
24	2 - 7, 6 - 7	Less than 2 ohms
25	2 - 7, 6 - 7, 7 - 10	Less than 2 ohms
26	2 - 7, 6 - 7, 7 - 8, 7 - 10	Less than 2 ohms
27	2 - 7, 6 - 7, 7 - 8	Less than 2 ohms
28	2 - 7, 7 - 8	Less than 2 ohms
29	2 - 7, 7 - 8, 7 - 10	Less than 2 ohms
