DTC 32: Potentiometer System of Air Outlet Changeover Damper Control Motor Assembly.: Notes

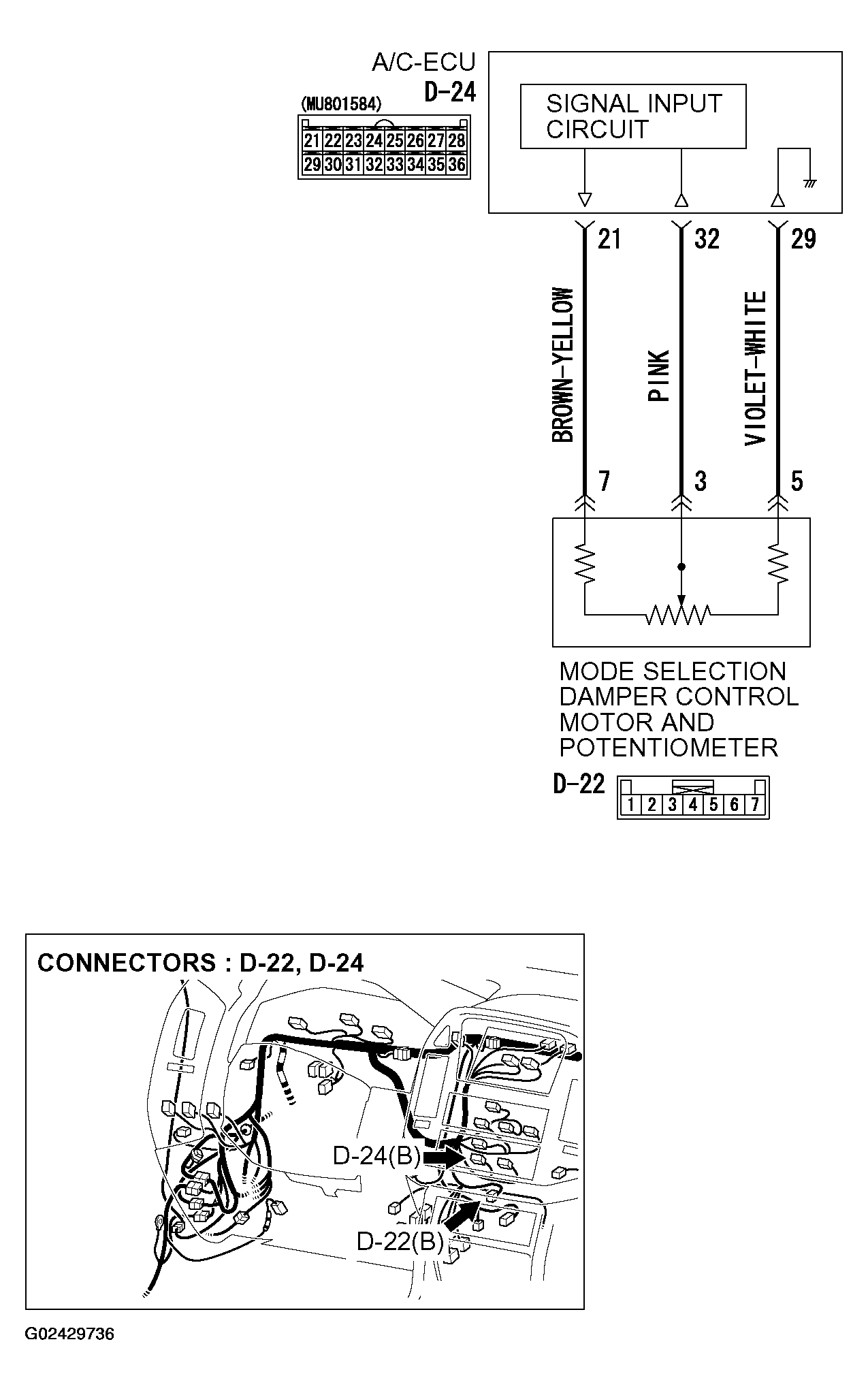

Fig 1: Air Outlet Changeover Damper Potentiometer Circuit Diagram
G02429736Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
