INSPECTION PROCEDURE 2: Air Conditioning does not Operate.: Notes

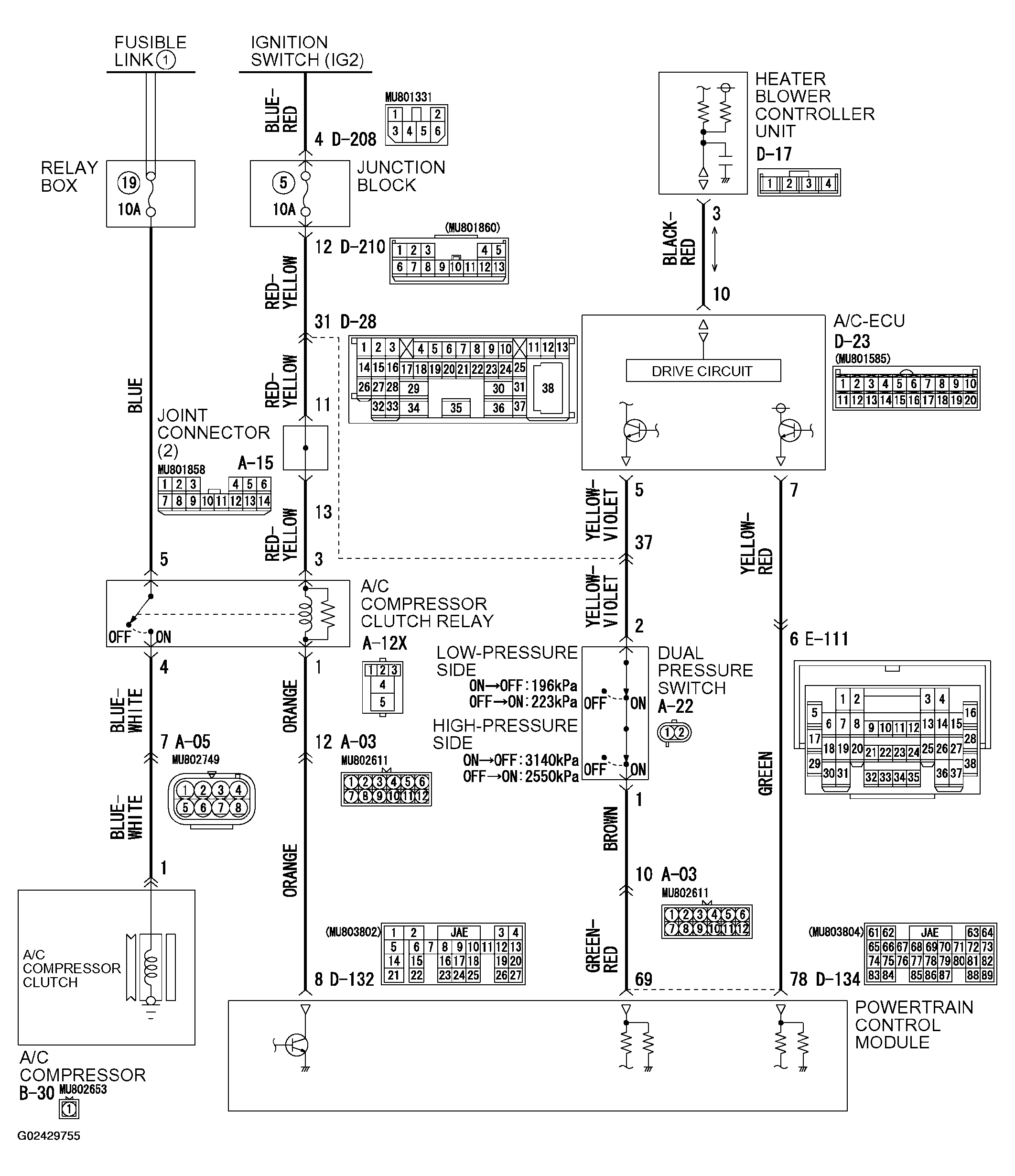

Fig 1: A/C Compressor Circuit Diagram (1 Of 2)
G02429755Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

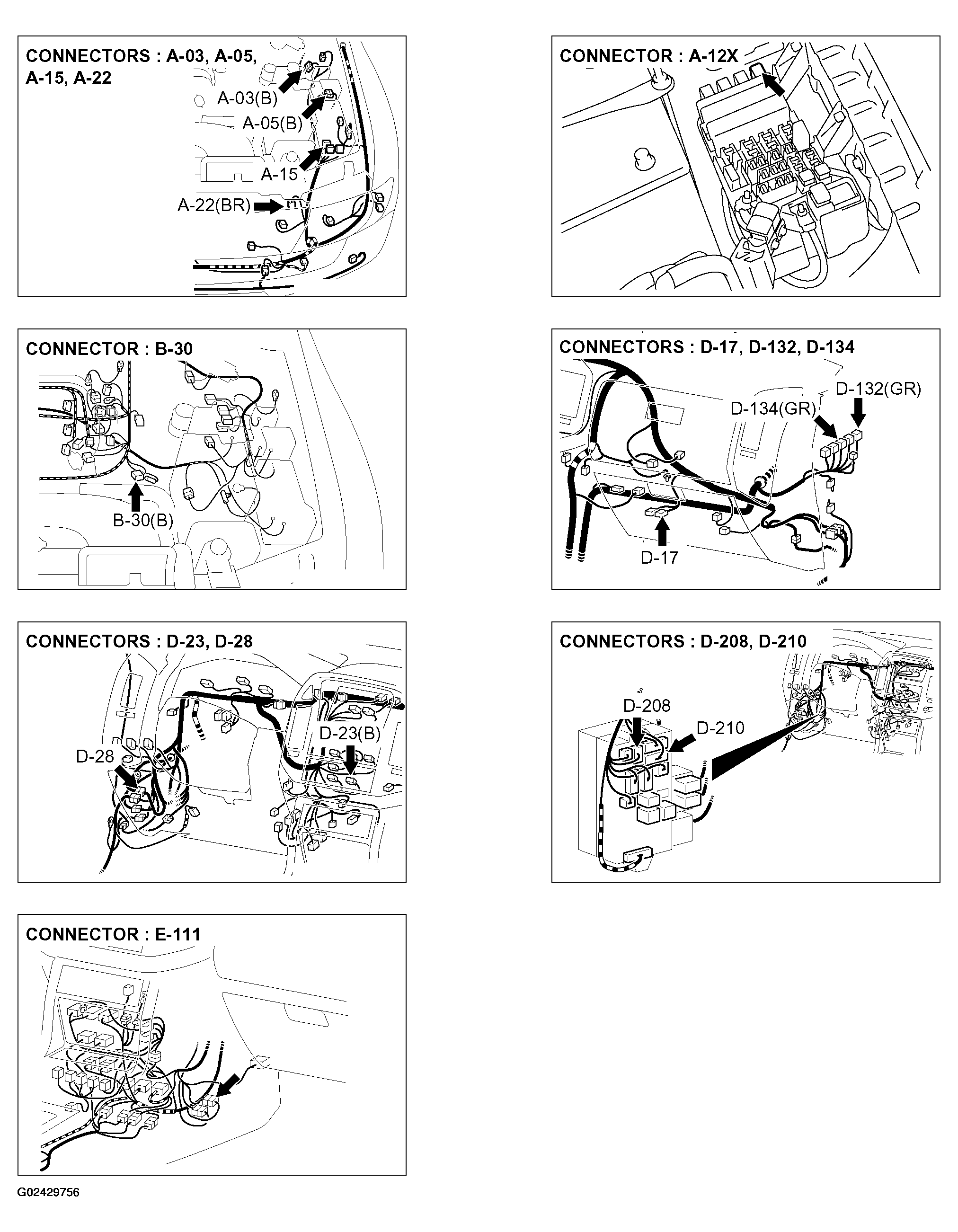

Fig 2: A/C Compressor Circuit Diagram (2 Of 2)
G02429756Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
