Air Bag Module (Driver's Side) And Clock Spring>

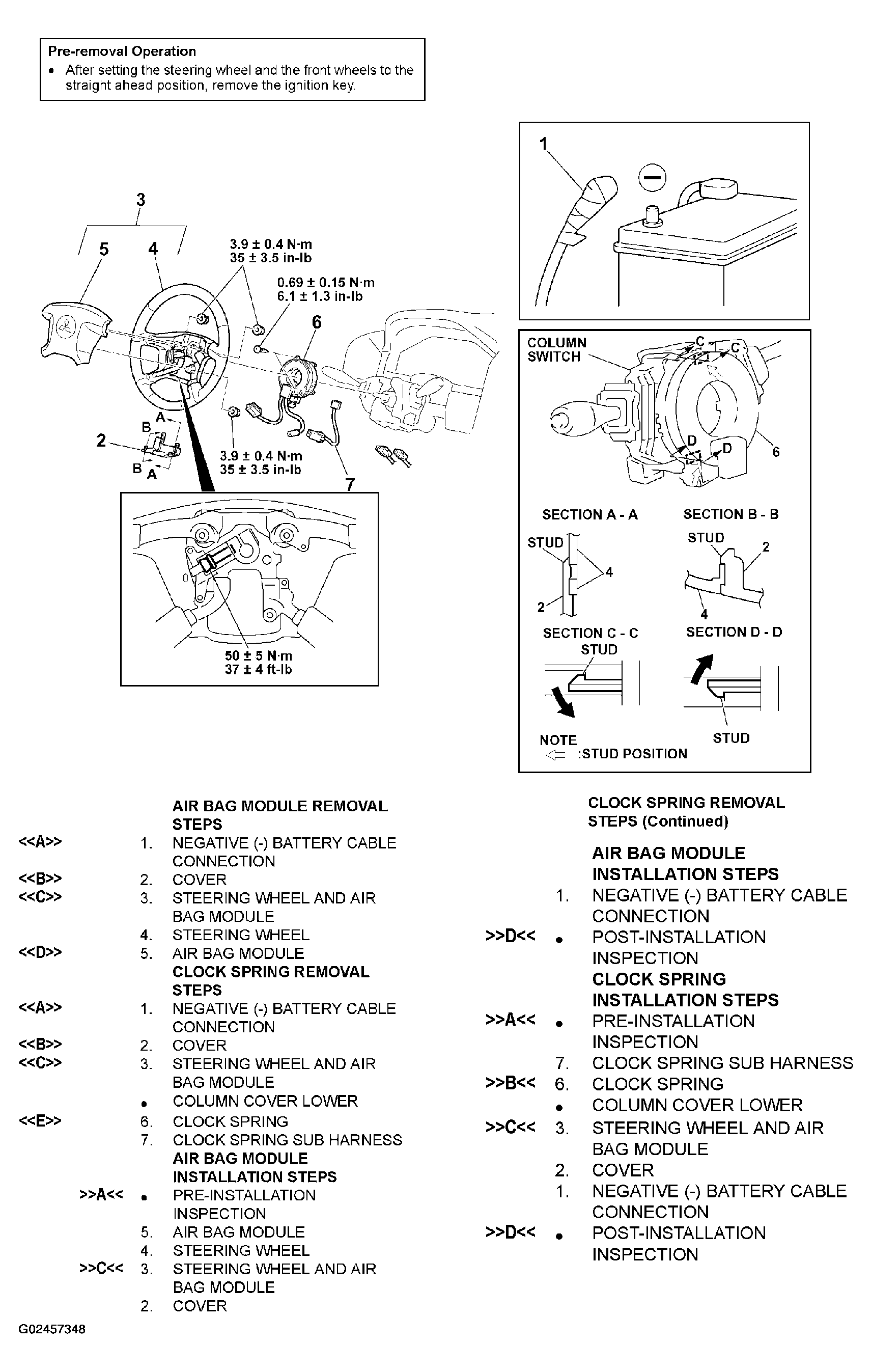

Fig 1: Removal Steps Of Air Bag Module (Driver Side) And Clock Spring
G02457348Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
