Mating Mark Alignment>

Turn the clock spring clockwise fully. Then turn it back approximately 3 3/4 turns counterclockwise to align the mating marks.

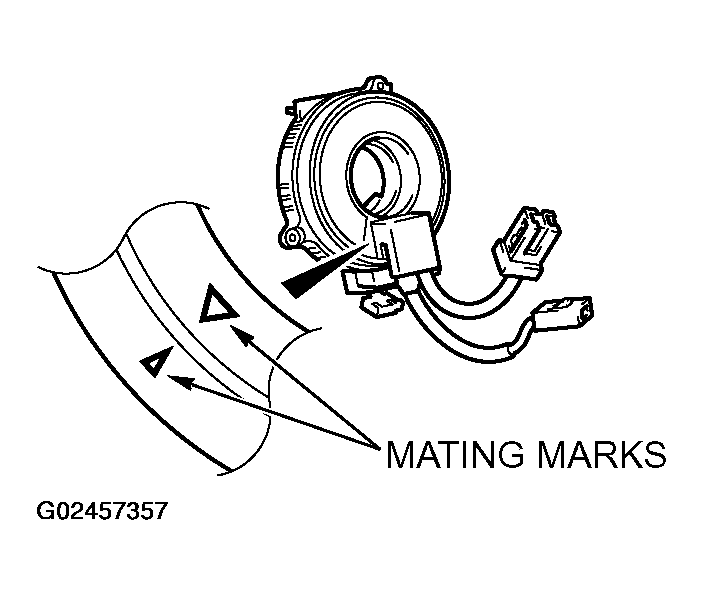

Fig 1: Aligning Mating Marks Of Cock Spring
G02457357Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
