>> D << Oil Seal/Rack Bushing Installation

  1. Use special tool MB990927 to press fit oil seal until it touches rack bush end.
  2. Apply a coating of GENUINE MITSUBISHI POWER STEERING FLUID to the outside of the oil seal and O-ring.

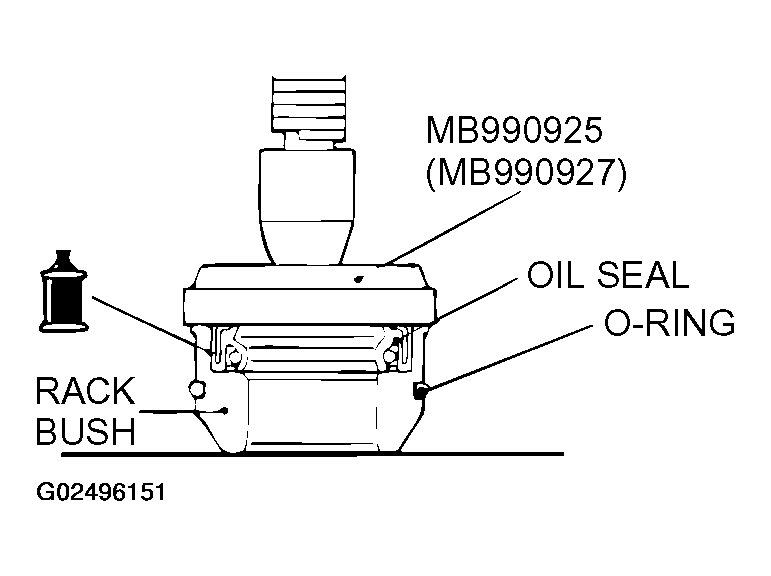

    Fig 1: Applying Power Steering Fluid To Outside Of Oil Seal And O-Ring
    G02496151Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
    CAUTION: Do not allow oil seal retainer spring to slip out.
  3. Wrap the rack end with vinyl tape, apply a coating of GENUINE MITSUBISHI POWER STEERING FLUID, and then install the rack bushing and rack stopper.

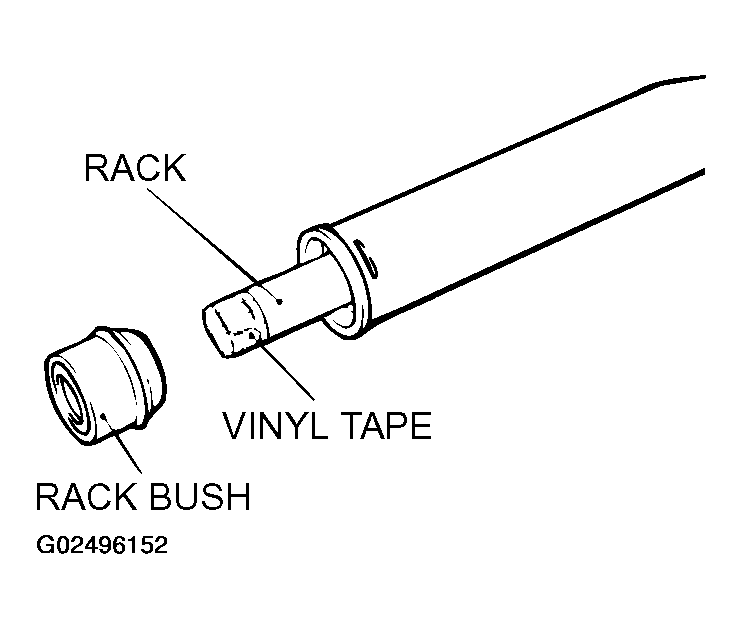

    Fig 2: Wrapping Rack End With Vinyl Tape
    G02496152Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
