>> J << Rack Support Cover/Lock Nut Installation

CAUTION: Apply the sealant to the entire threaded part. Ensure that no excess is squeezed out into the gear housing.
  1. Apply 3M™ AAD Part number 8672, 8679, 8678, 8663, 8661 or equivalent to the threaded part of the rack support cover.
  2. Use special tool MB991204 to tighten the rack support cover to 12 +/- 2 N.m (106 +/- 21 in-lb).
  3. Turn the rack support cover 10 degree angle counterclockwise.
  4. Use special tool MB991204 to hold the rack support cover, and then tighten the lock nut to 59 +/- 10 N.m (44 +/- 7 ft-lb).

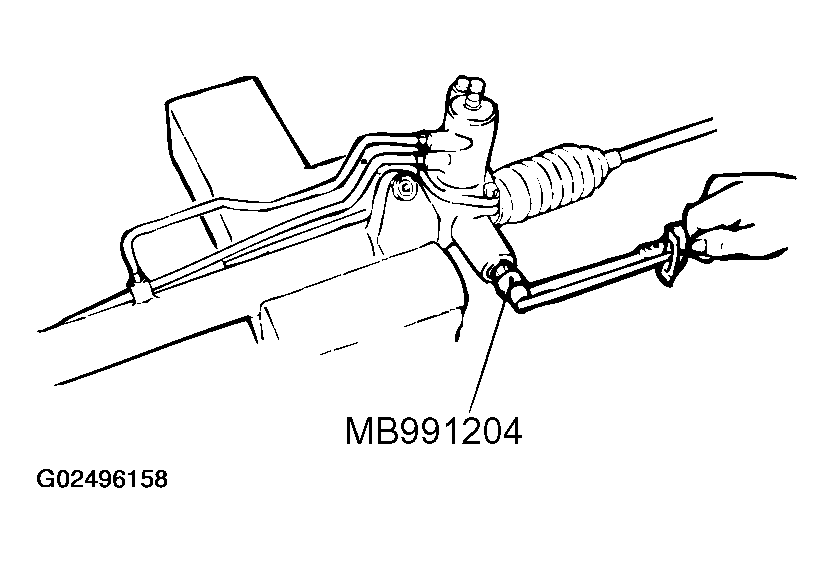

    Fig 1: Tightening Rack Support Cover Using Special Tool
    G02496158Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
