>> O << Gear Mount Rubber Installation

Install the gear mount rubber on the race housing so that the dimension shown in the illustration can be obtained.

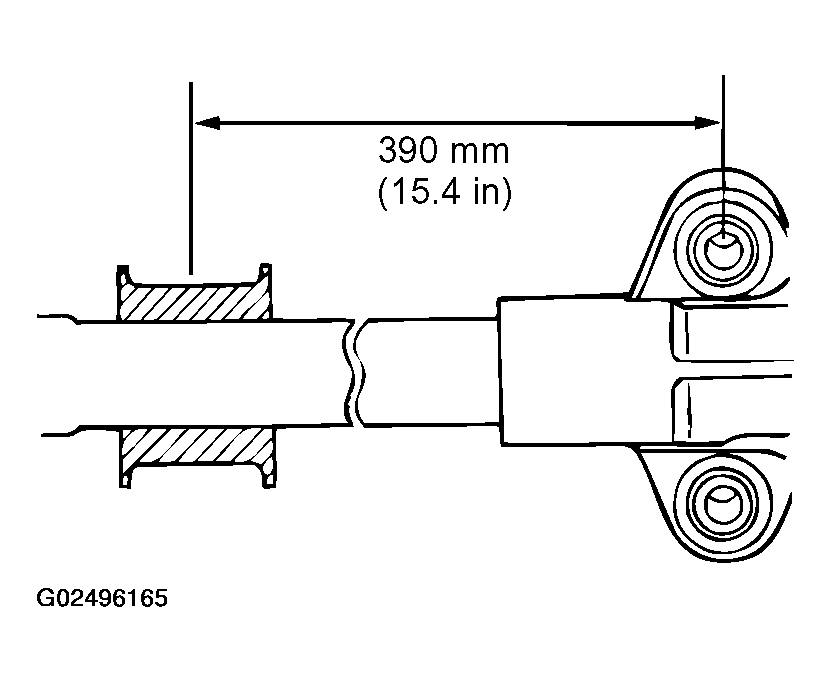

Fig 1: Identifying Dimension Of Gear Mount Rubber
G02496165Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
