Lubrication And Sealing Points

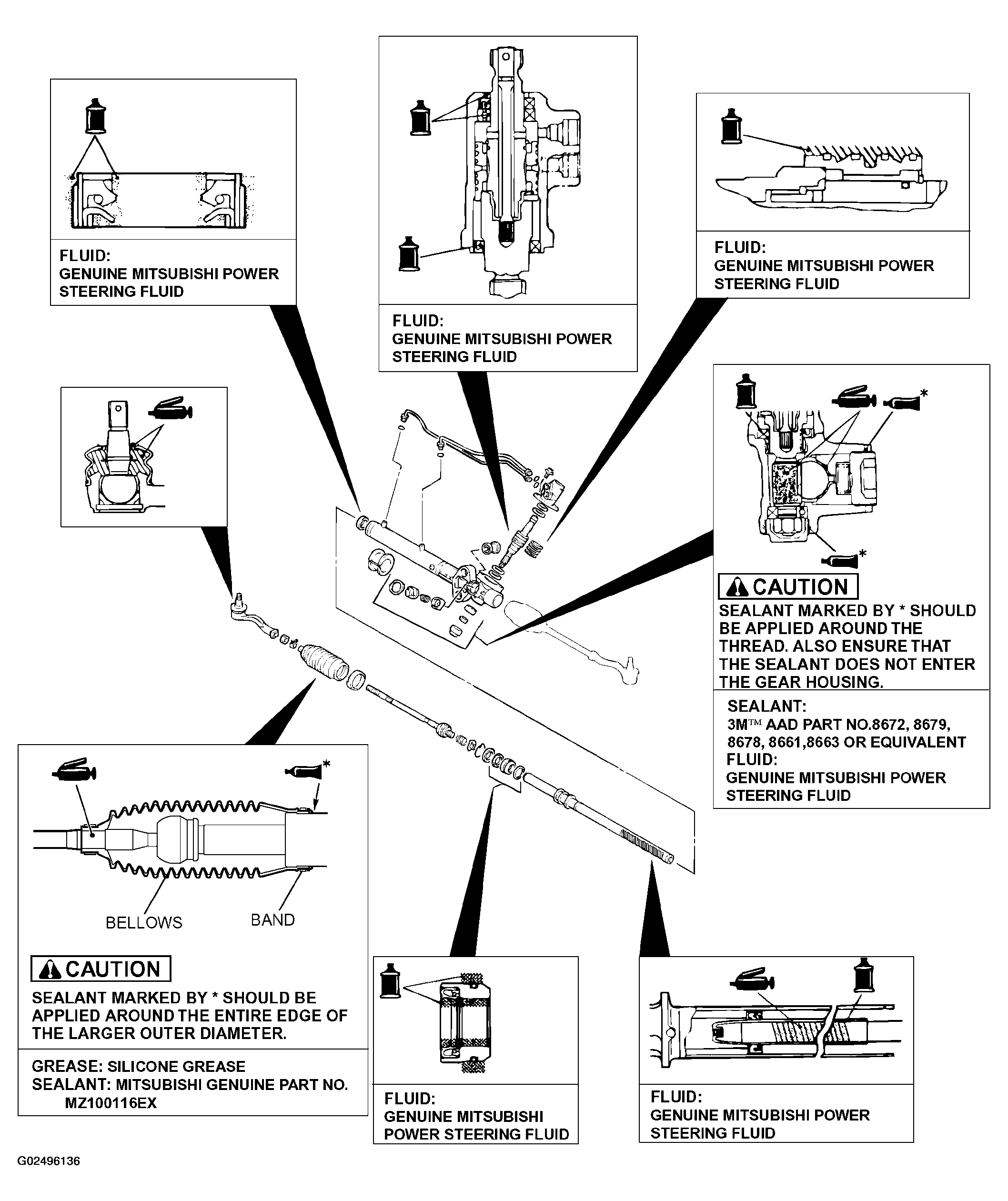

Fig 1: Locating Lubrication And Sealing Points Of Steering System
G02496136Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
