Disassembly And Assembly: Notes

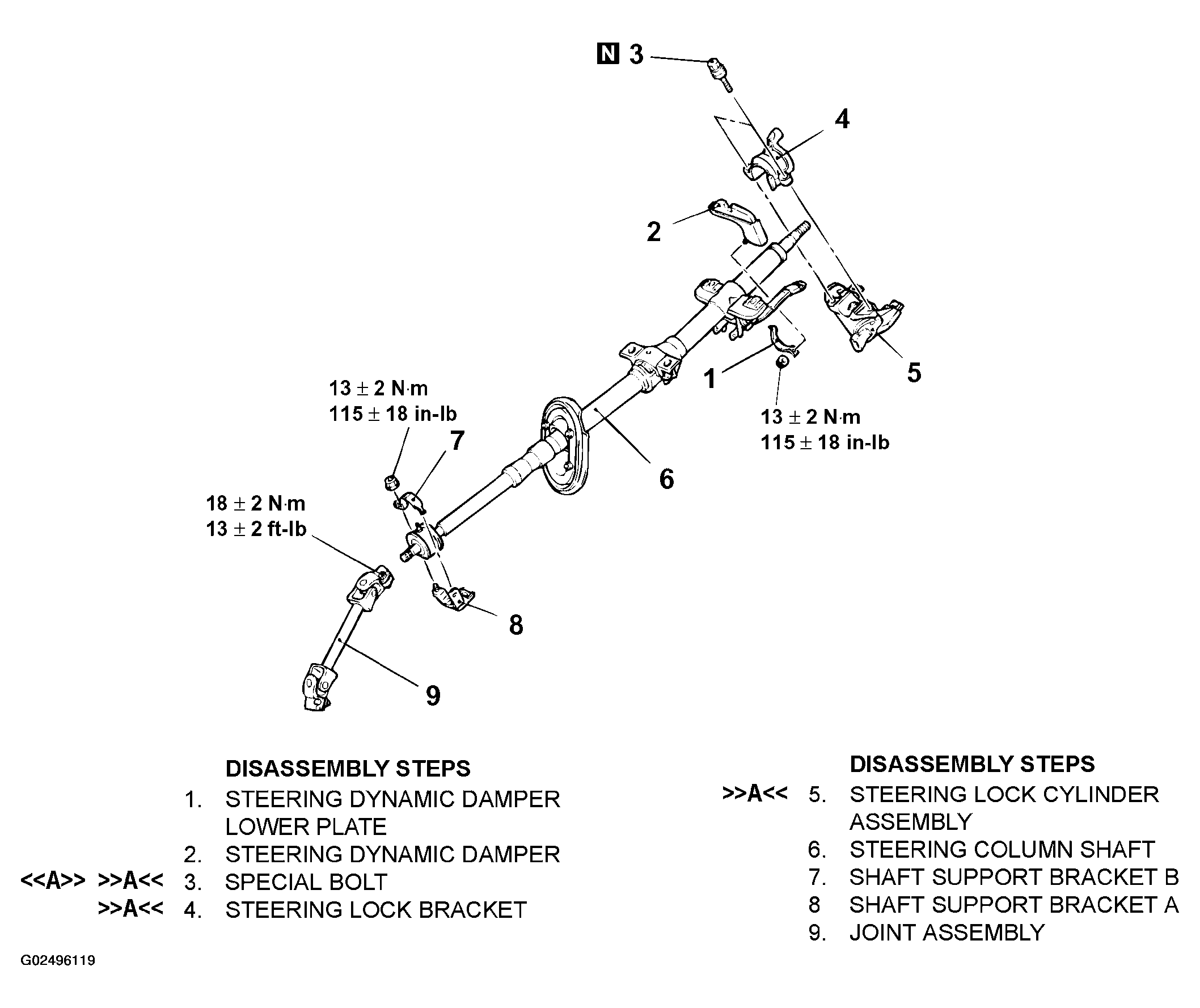

Fig 1: Identifying Steering Cover Shaft Assembly Components
G02496119Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
