<< B >> Spring Bracket Assembly Installation

Install the spring bracket assembly which faces the shock absorber as shown in the illustration.

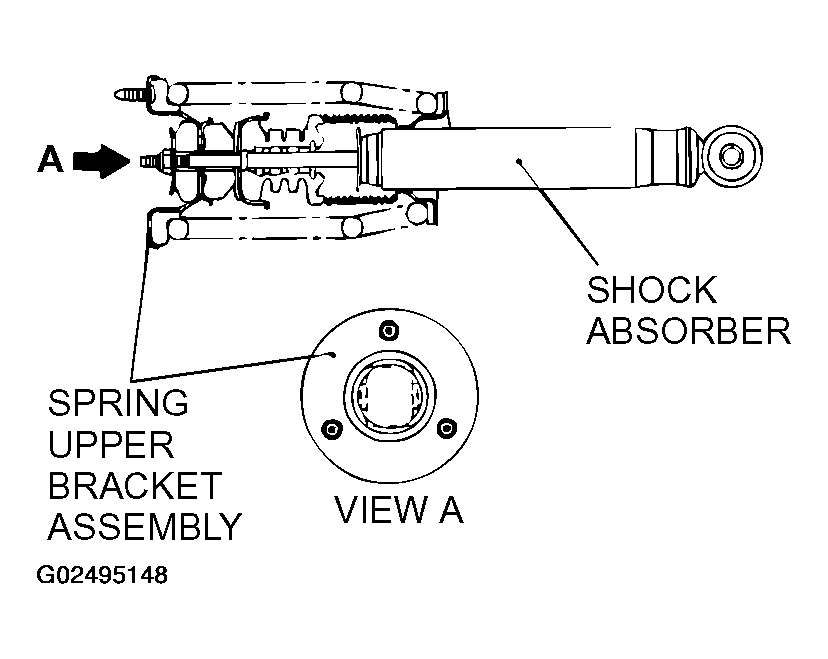

Fig 1: Installing Spring Bracket Assembly
G02495148Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
