INSPECTION PROCEDURE 2: The TPMS Warning Light Flashes.: Notes

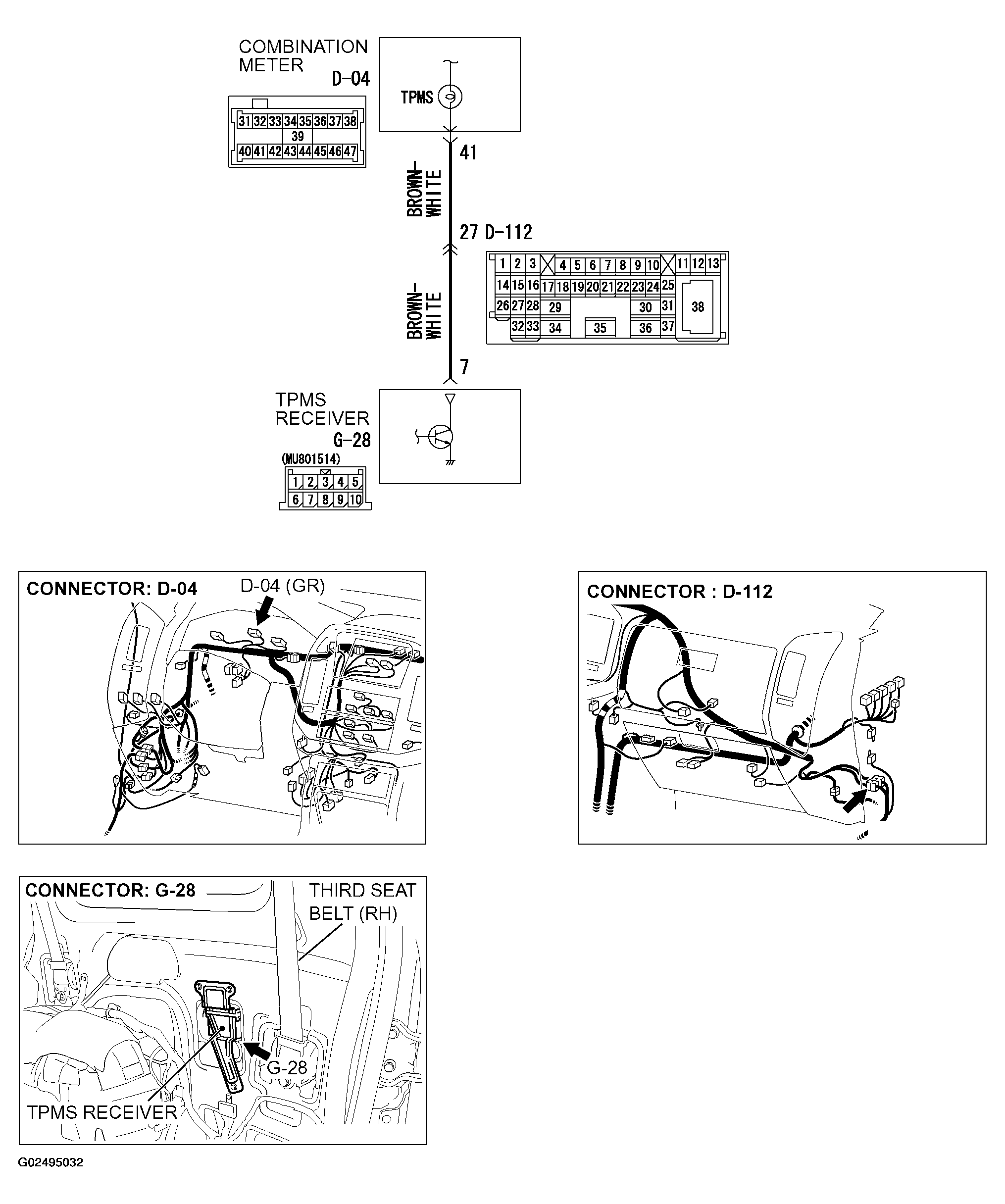

Fig 1: TPMS Warning Light Signal Circuit Diagram
G02495032Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
