INSPECTION PROCEDURE 5: Communication between the Scan Tool and the TPMS is not Possible.: Notes

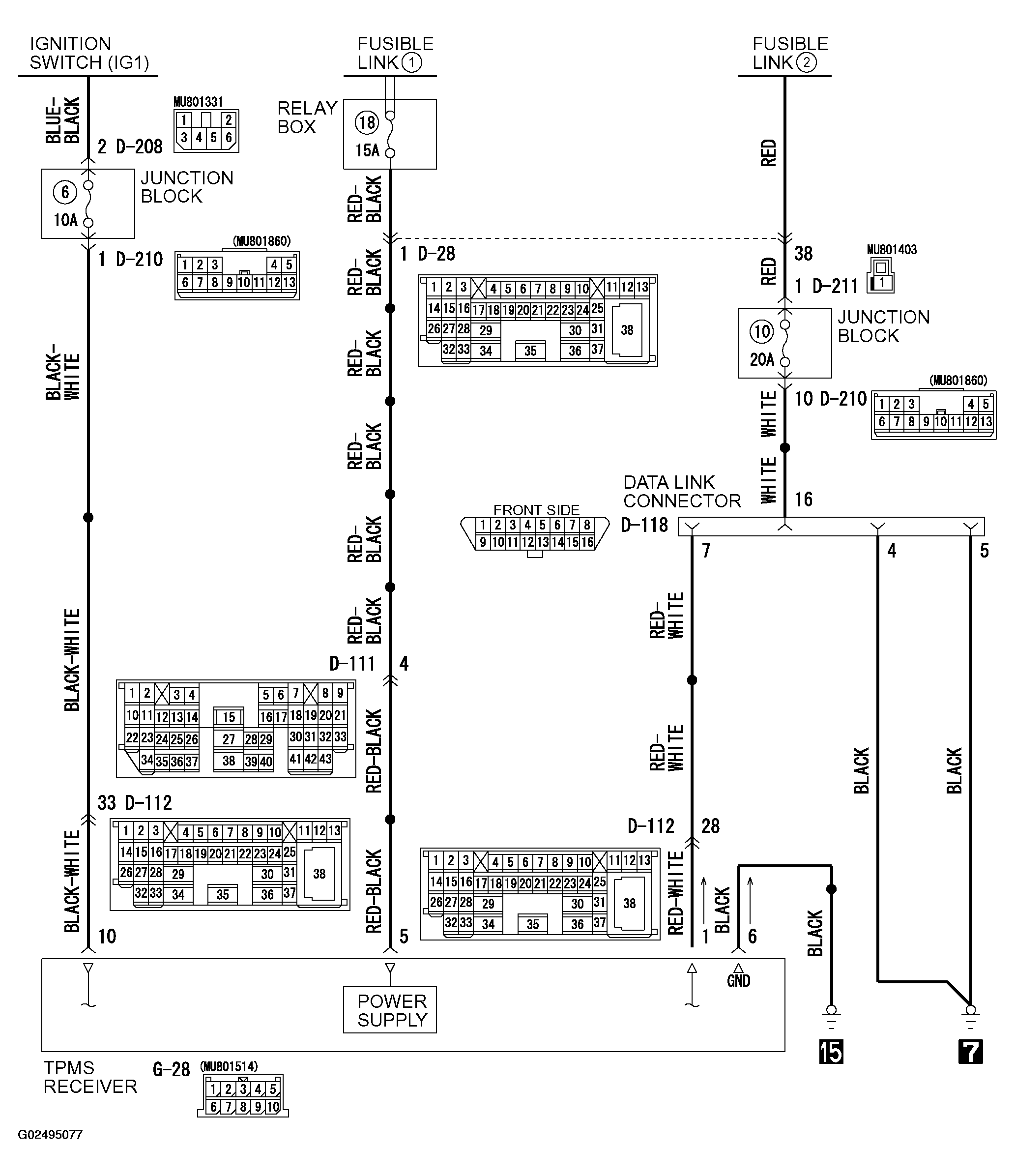

Fig 1: Data Link Connector Circuit Diagram
G02495077Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

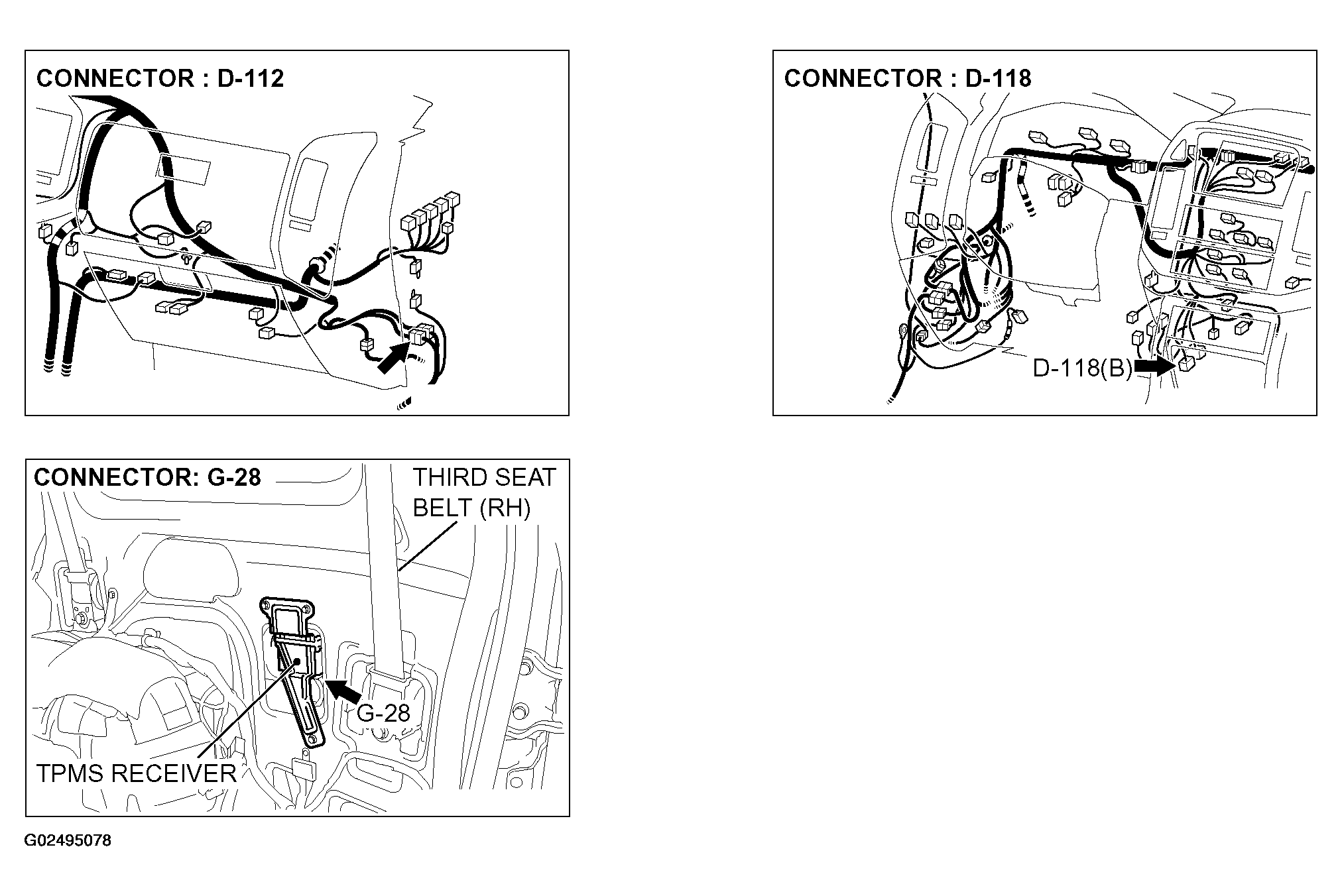

Fig 2: Identifying Connector D-112 And D-118
G02495078Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
