INSPECTION PROCEDURE 17: Shift Switch Assembly System: Notes

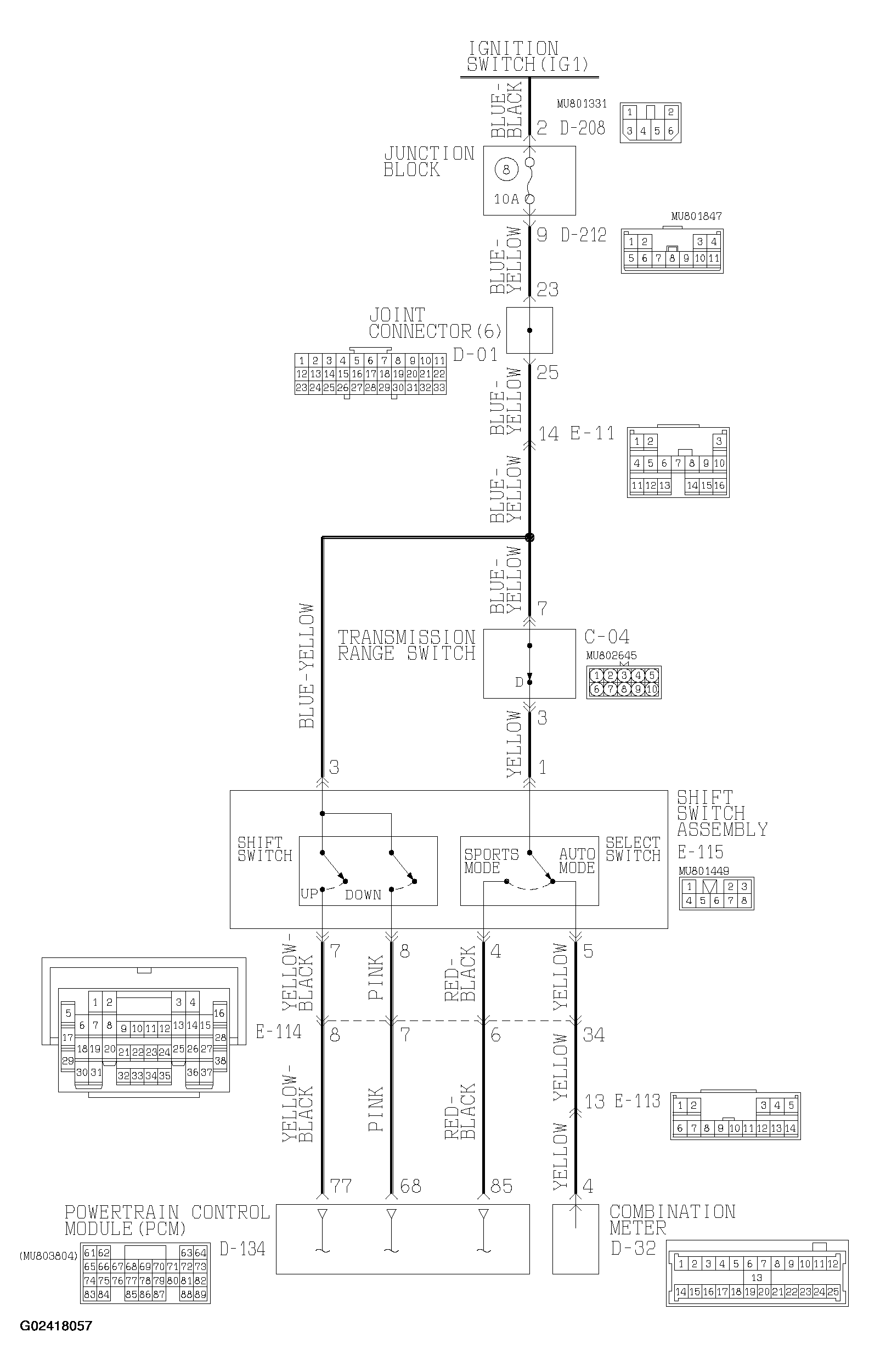

Fig 1: Shift Switch Assembly System Circuit - Wiring Diagram (1 Of 3)
G02418057Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

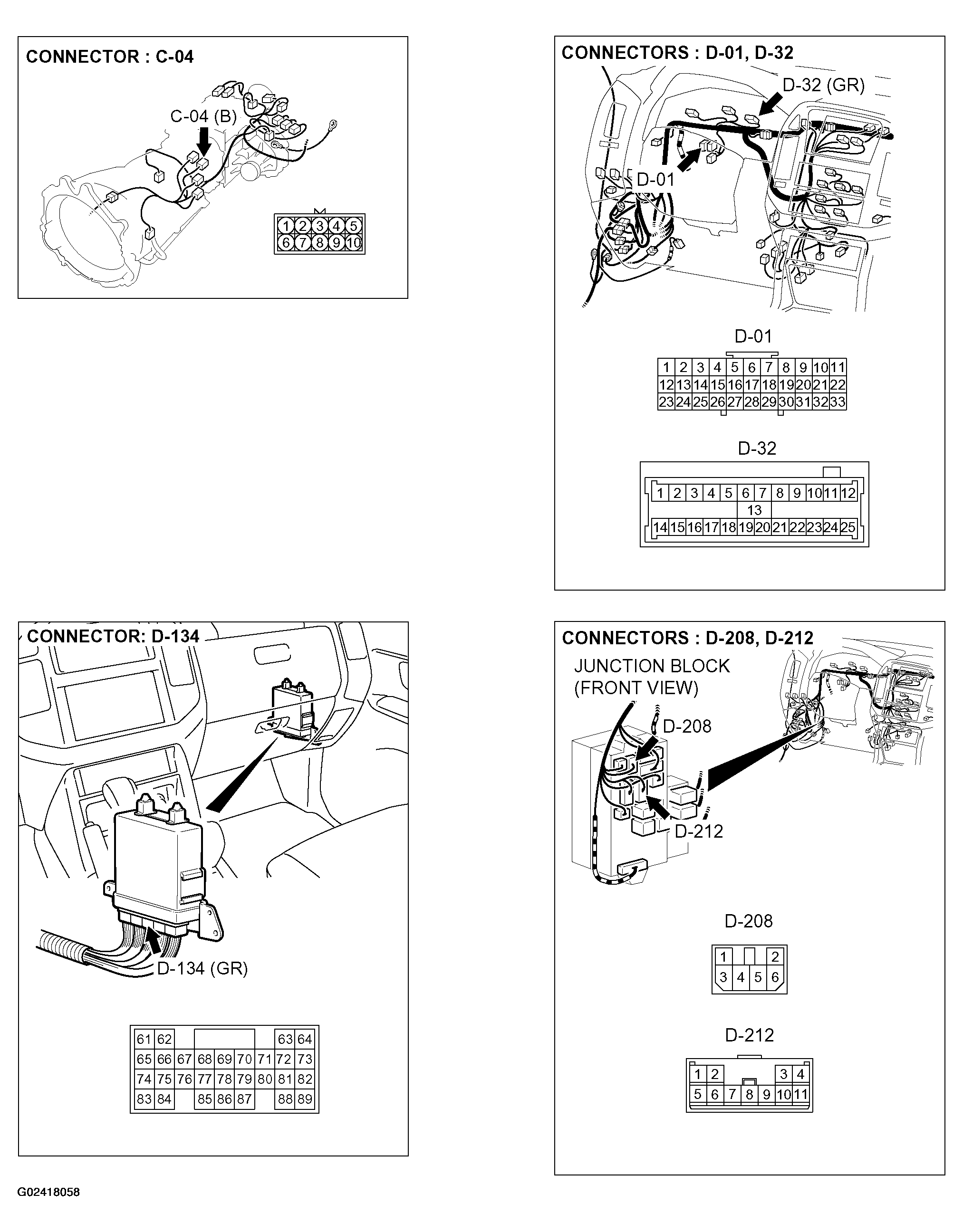

Fig 2: Shift Switch Assembly System Circuit - Wiring Diagram (2 Of 3)
G02418058Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

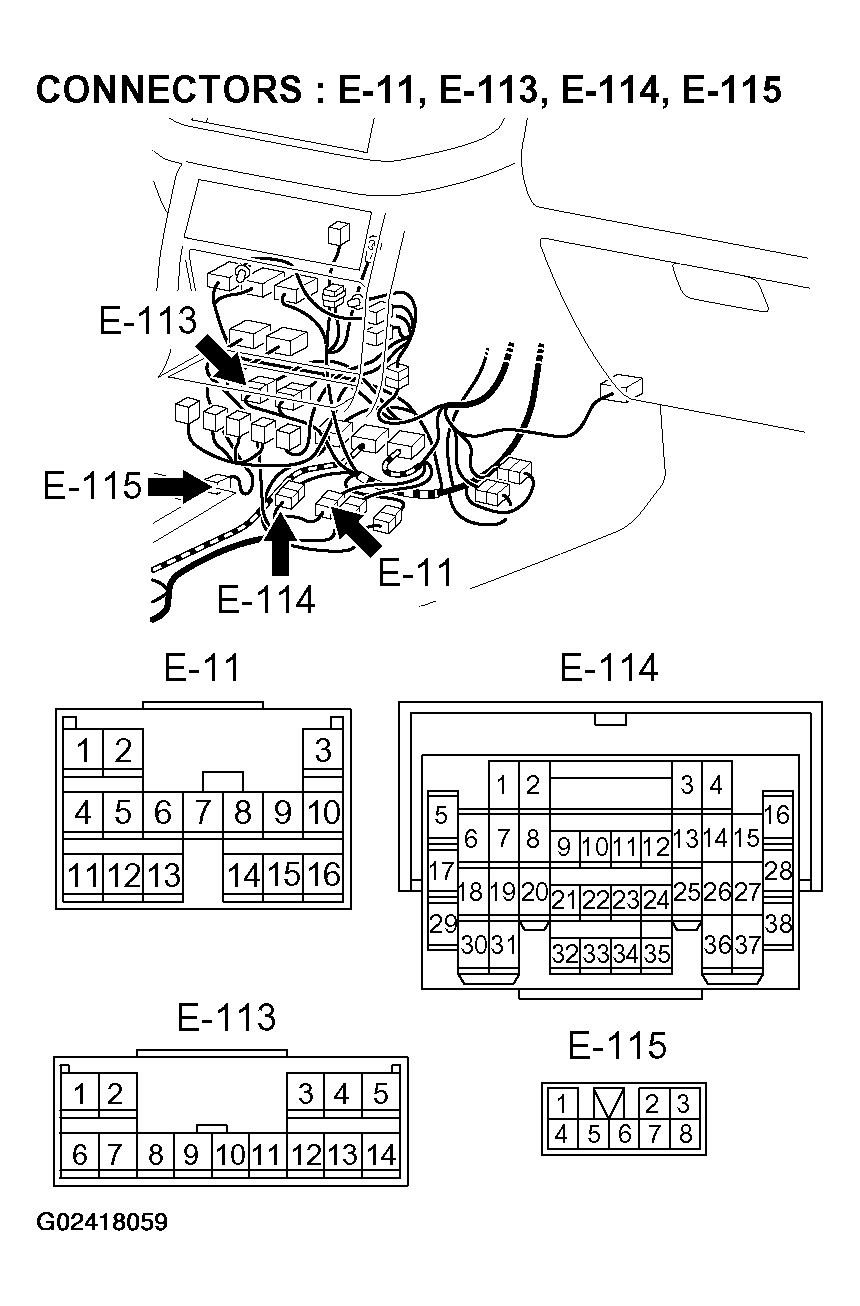

Fig 3: Shift Switch Assembly System Circuit - Wiring Diagram (3 Of 3)
G02418059Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
