A/T Control Relay Check

  1. Remove the A/T control relay.

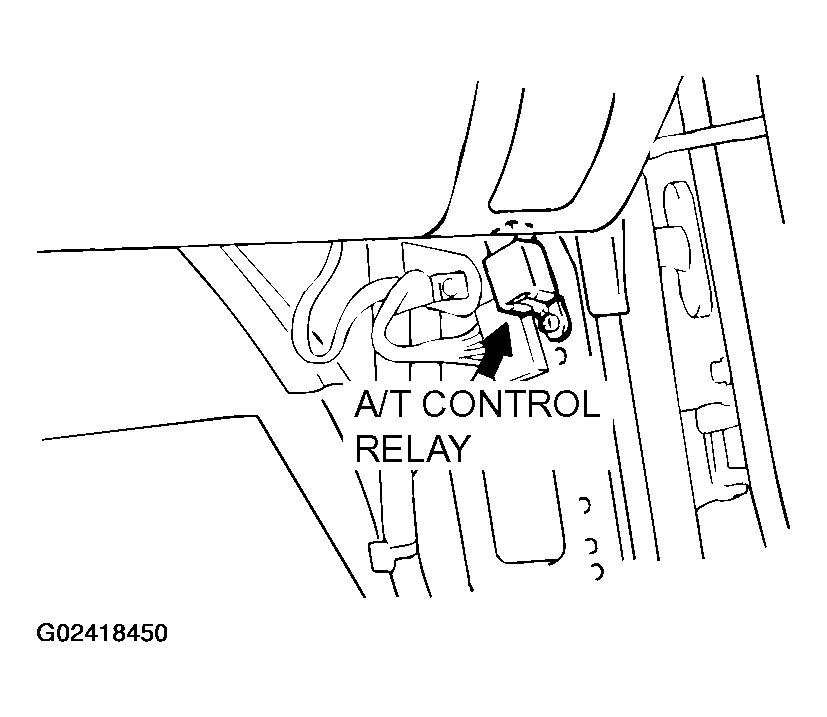

    Fig 1: Removing A/T Control Relay
    G02418450Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  2. Use jumper wires to connect A/T control relay terminal 2 to the negative battery terminal and terminal 4 to the positive battery terminal.
  3. Check for continuity between A/T control relay terminals 1 and 3 when the jumper wires are connected to and disconnected from the battery.
    A/T CONTROL RELAY CHECK

    JUMPER WIRE CONTINUITY BETWEEN TERMINALS NO. 1 AND NO. 3
    Connected Less than 2 ohms
    Disconnected Open circuit

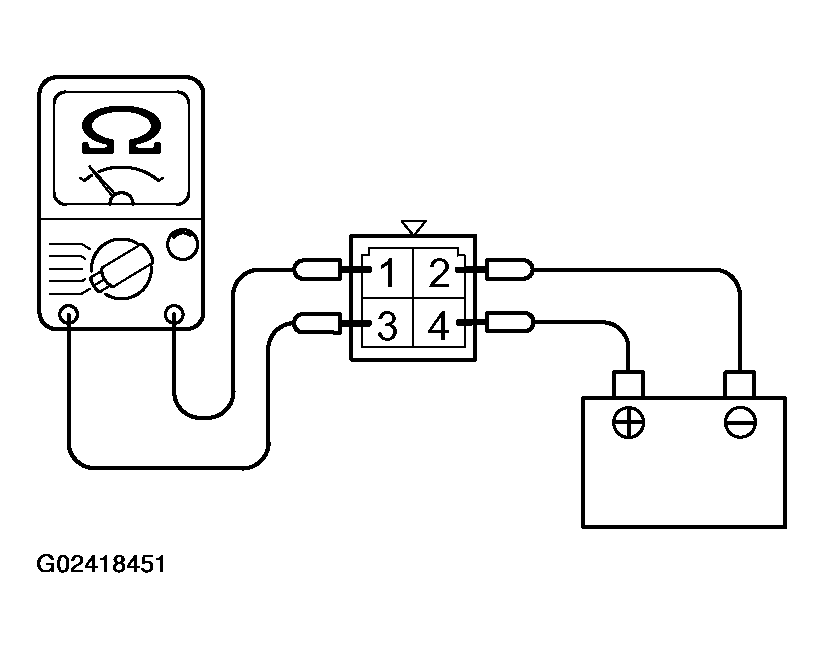

    Fig 2: Checking Continuity Between A/T Control Relay Terminals 1 And 3
    G02418451Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
  4. If there is any problem with the A/T control relay, replace it.
