DTC 32, 33: Transfer Detection Switch System: Notes

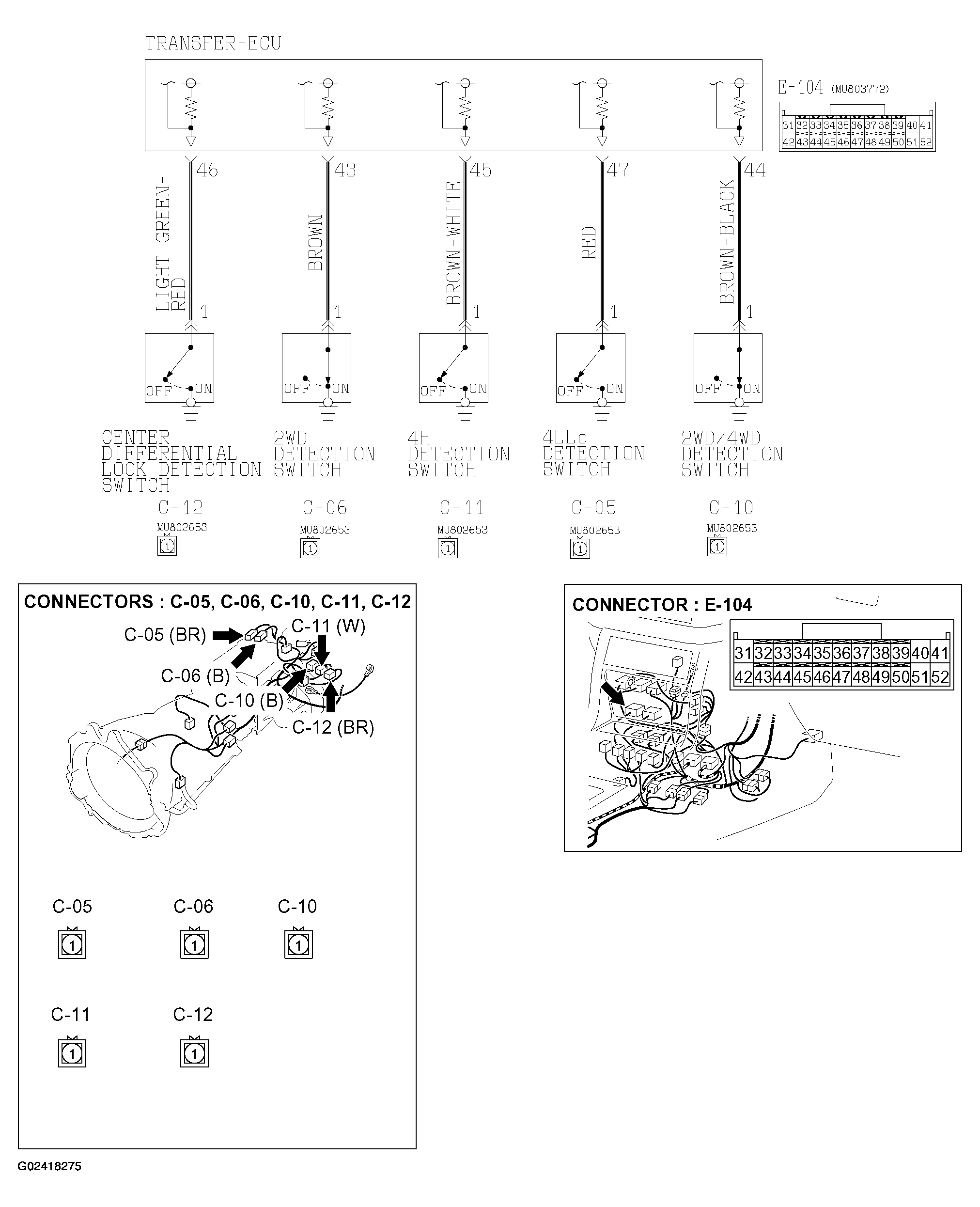

Fig 1: Transfer Detection Switch System Circuit - Wiring Diagram
G02418275Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
