Data List Reference Table

CAUTION:

When shifting the selector lever to D range, the brakes should be applied so that the vehicle does not move forward.
Driving tests always need two persons: one driver and one observer.

NOTE: *:Disconnect the throttle position sensor connector, and then delete the diagnostic trouble code that was recorded during the inspection with the use of the MB991502 scan tool after the inspection has been completed.

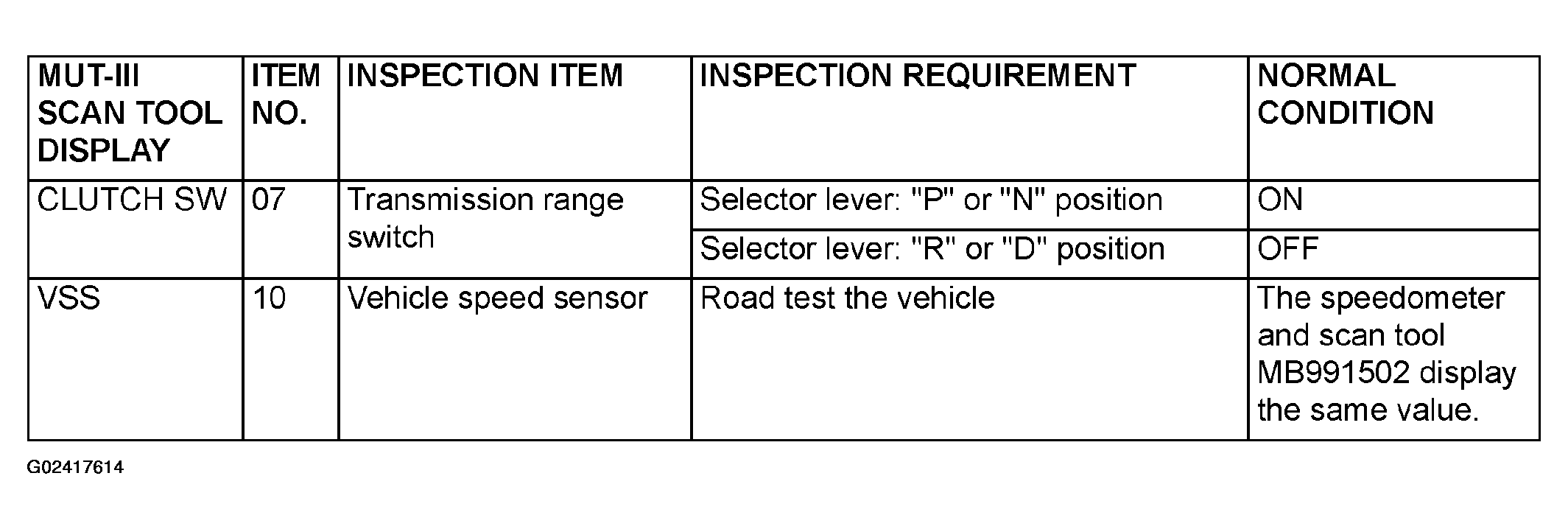

Fig 1: Data List Reference Table (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

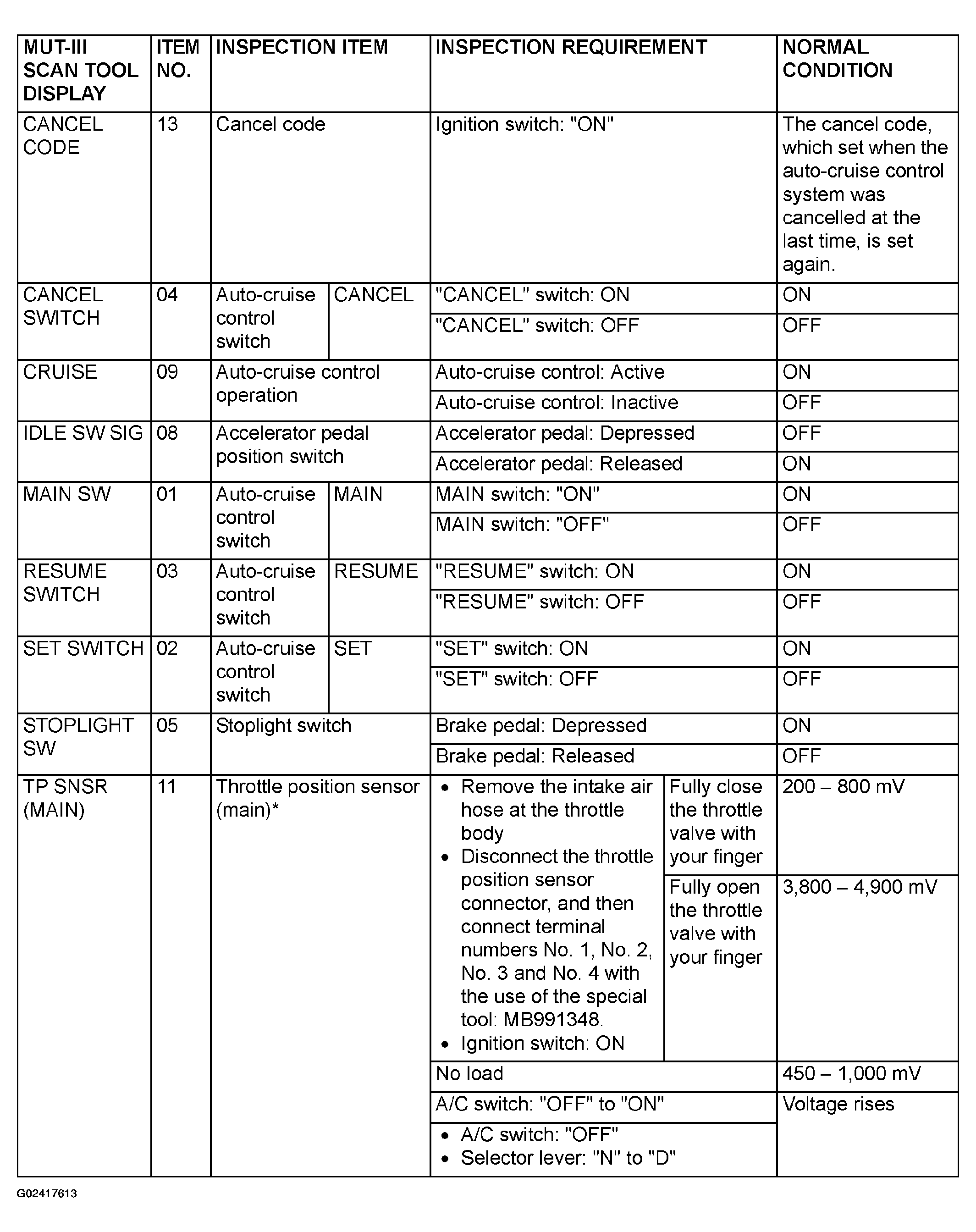

Fig 2: Data List Reference Table (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

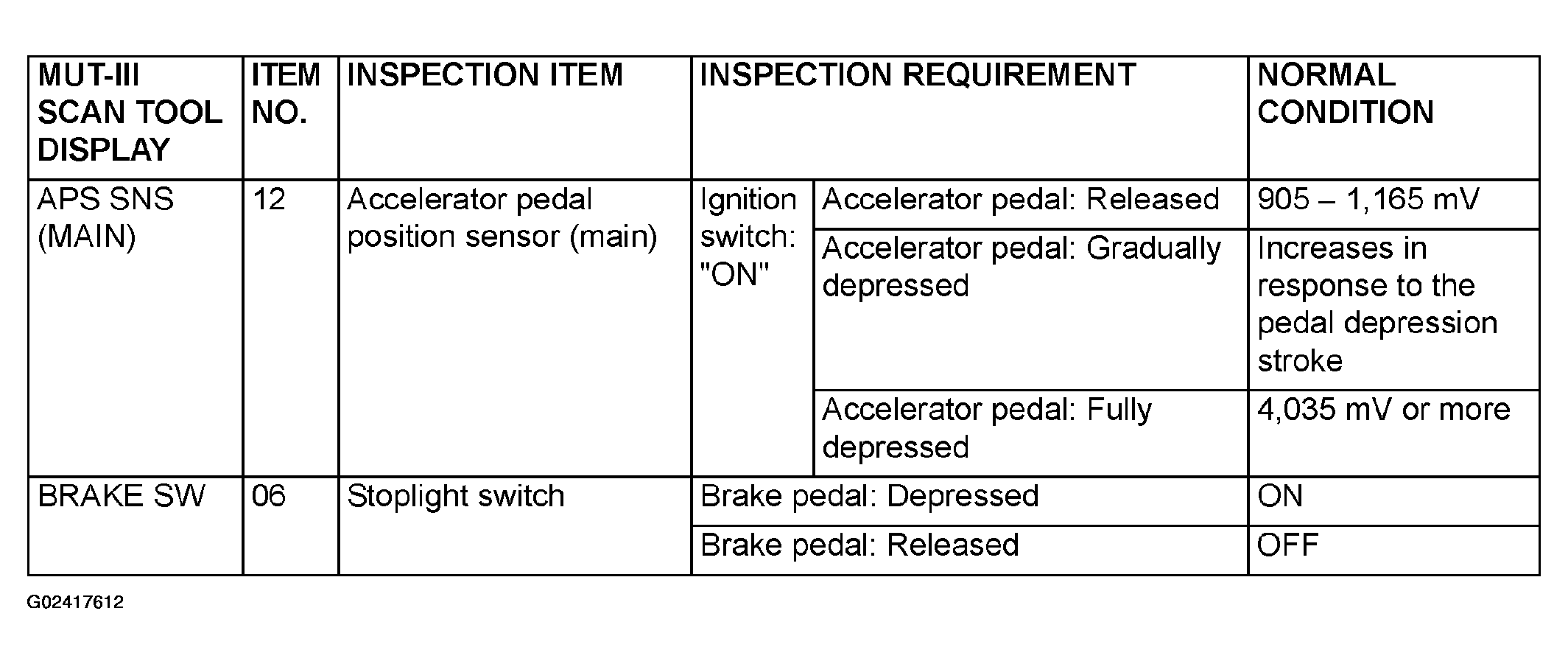

Fig 3: Data List Reference Table (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
