DTC 22: Stoplight Switch System: Notes

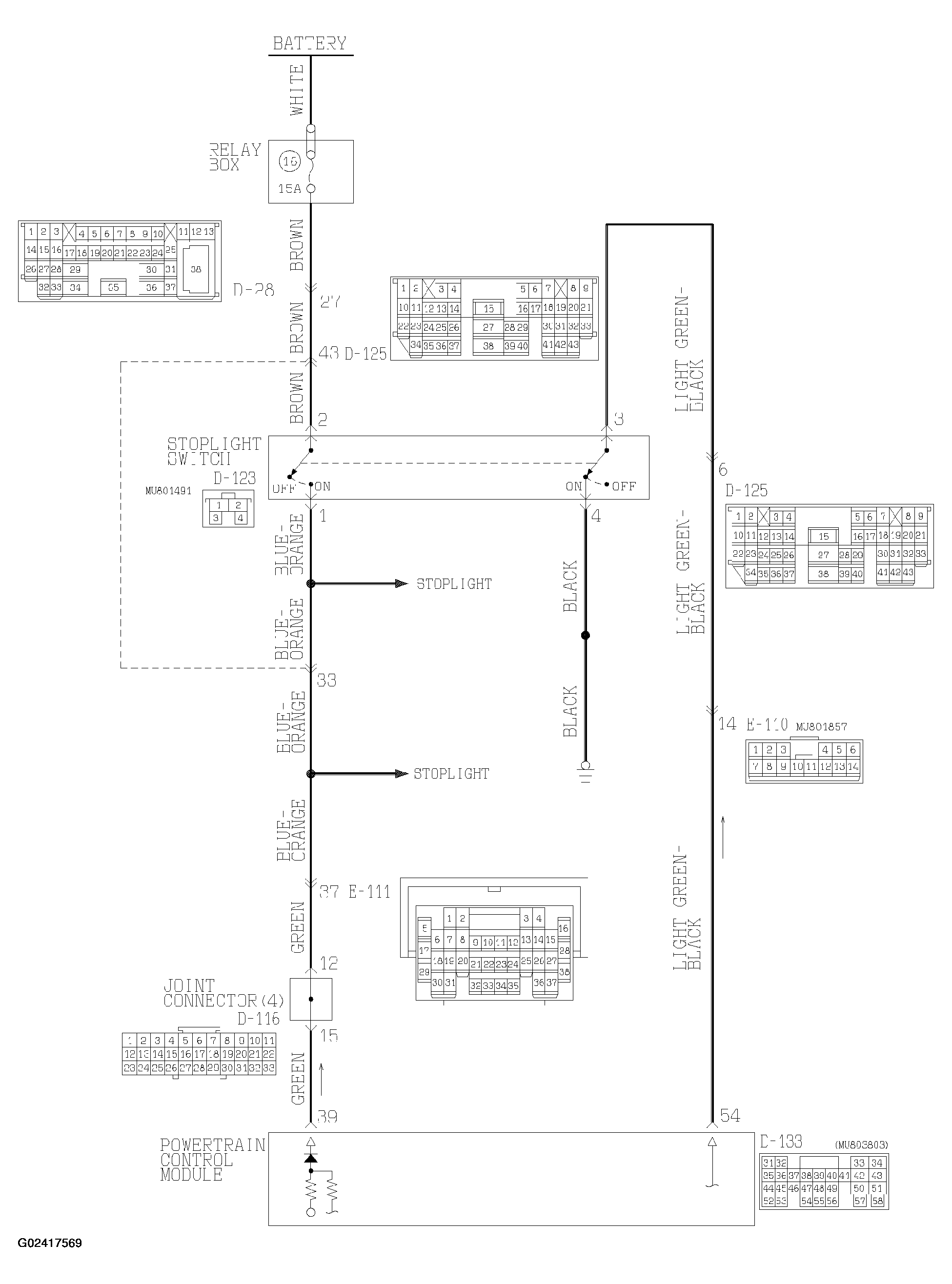

Fig 1: Stoplight Switch System Circuit (1 Of 3)
G02417569Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

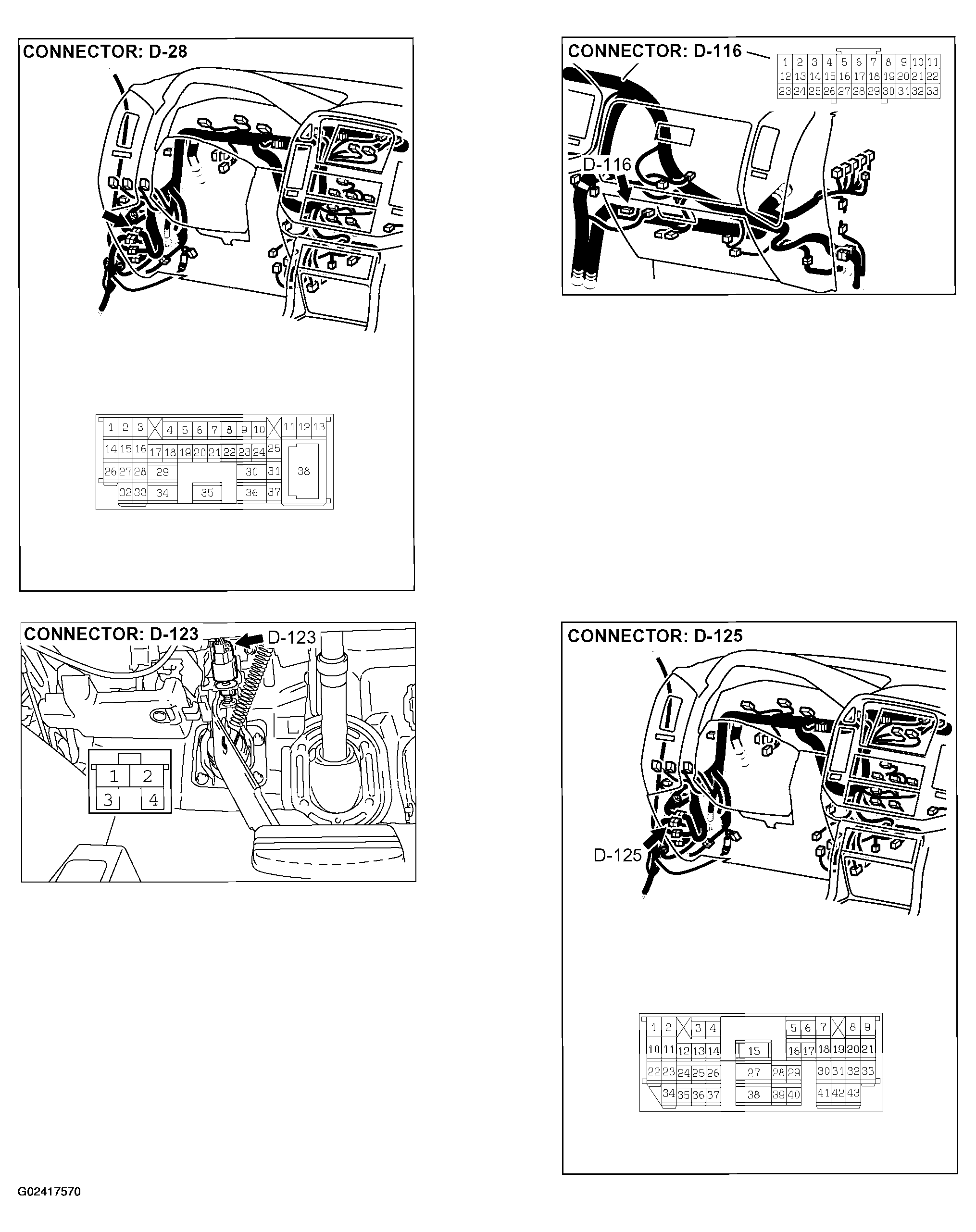

Fig 2: Stoplight Switch System Circuit (2 Of 3)
G02417570Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

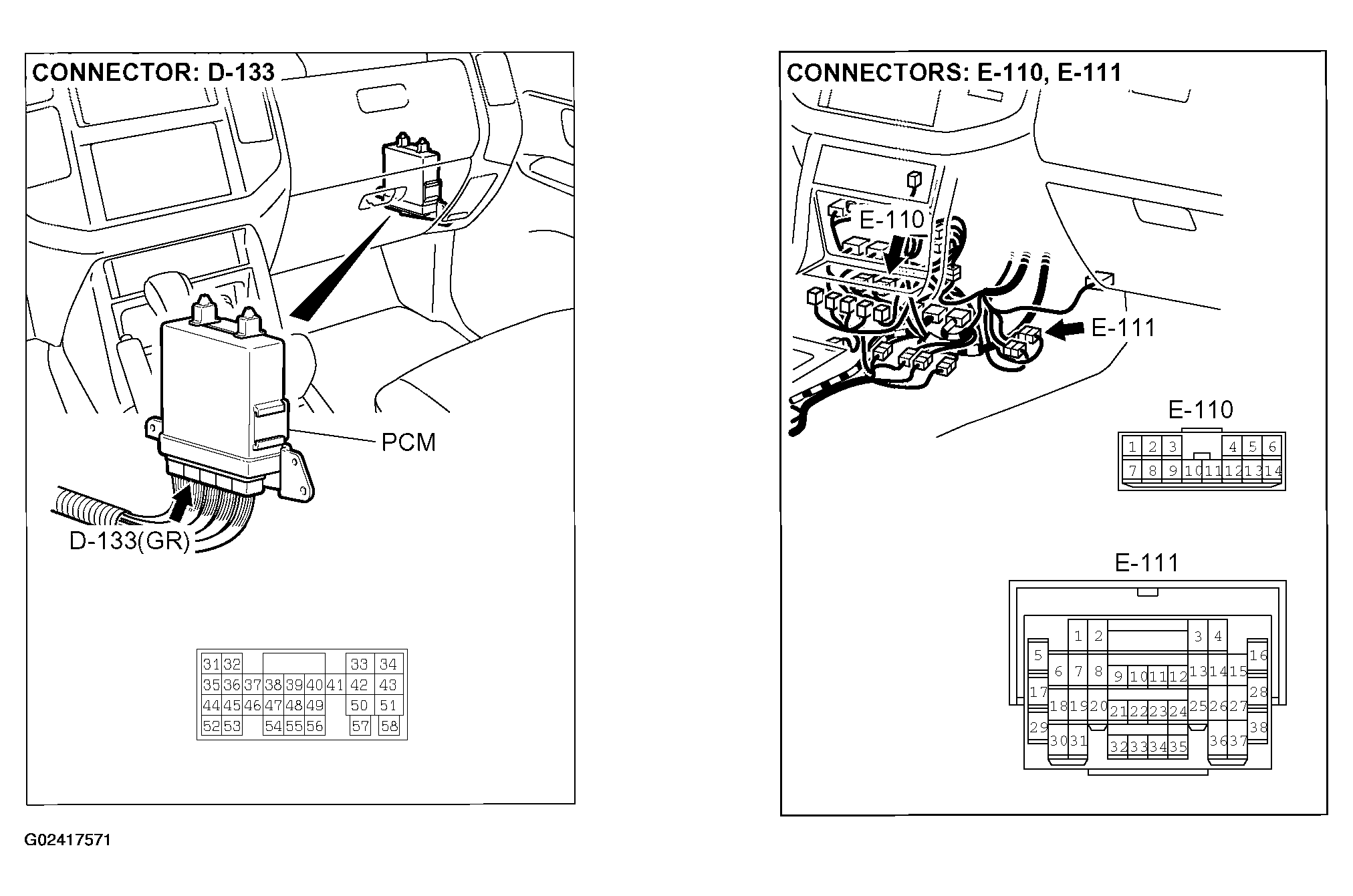

Fig 3: Stoplight Switch System Circuit (3 Of 3)
G02417571Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
