DTC 22: Stoplight Switch System: Notes

WARNING: This page is about a different car, the 2006 Mitsubishi Montero. However, it is still accessible from the selected car via links, so may be relevant.

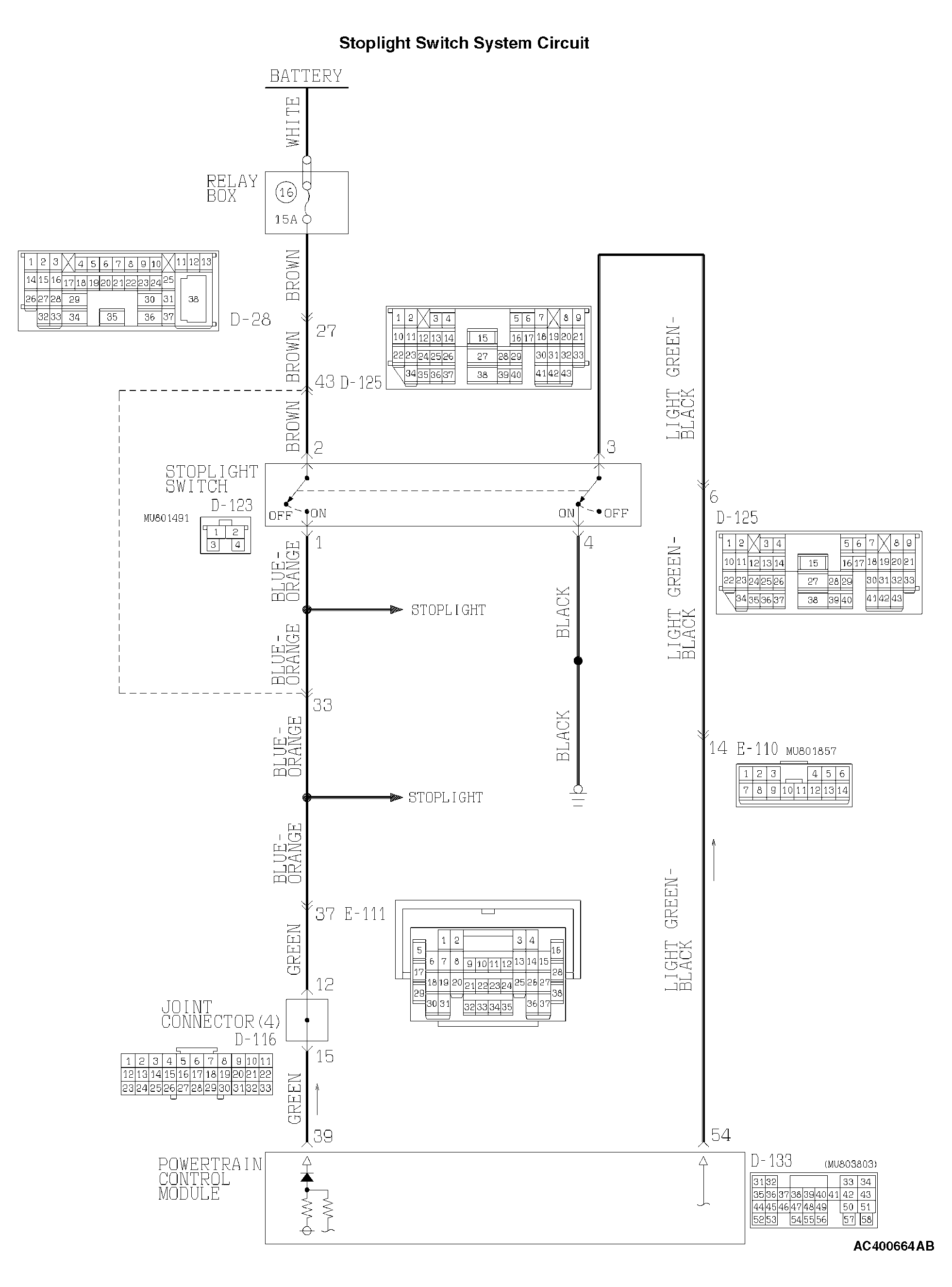

Fig 1: Stoplight Switch System Circuit (1 Of 2)
G04265171Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Stoplight Switch System Circuit (2 Of 2)
G04265172Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
