Removal And Installation: Notes

WARNING: Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .

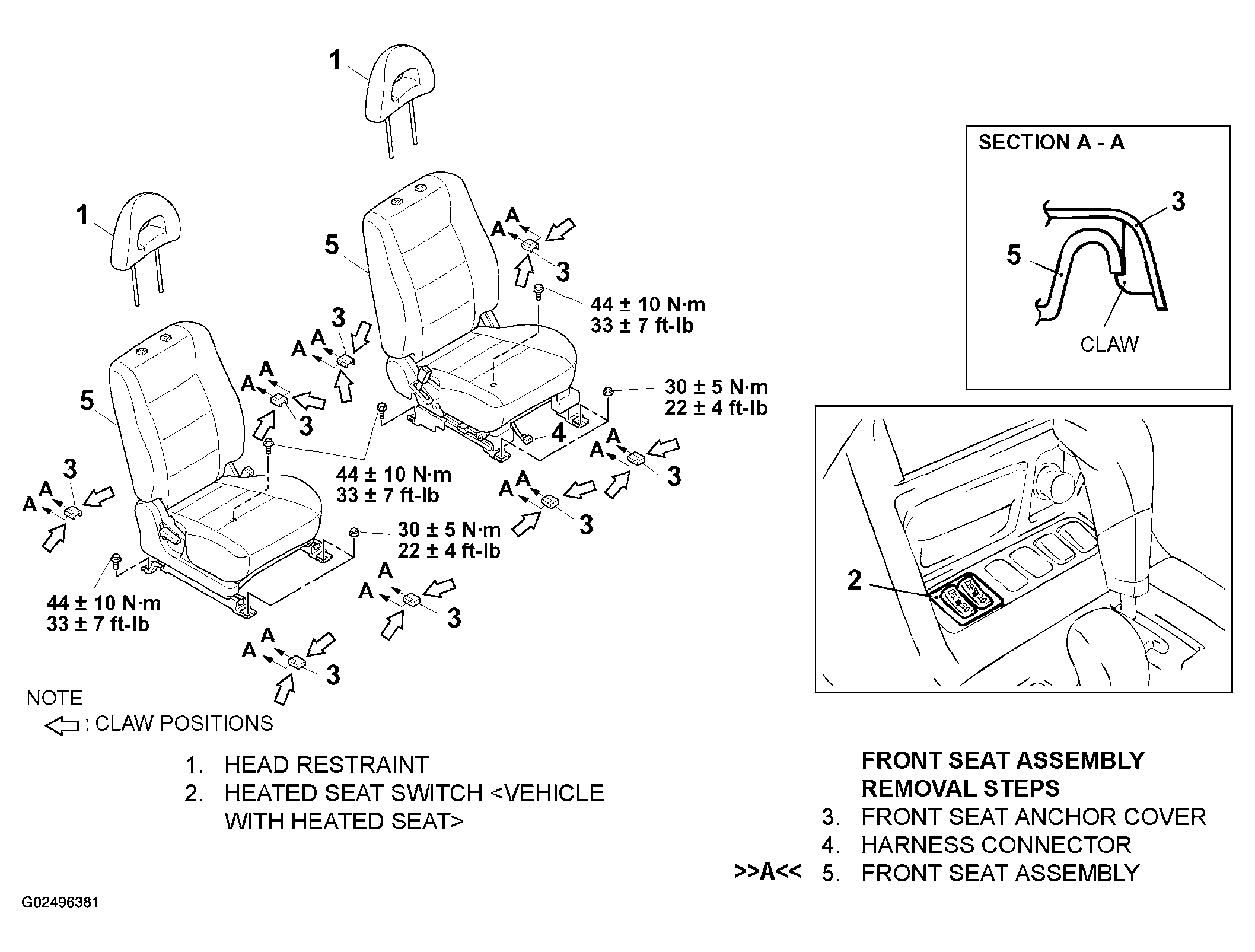

Fig 1: Removing/Installing Front Seat Assembly
G02496381Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
