Disassembly And Assembly

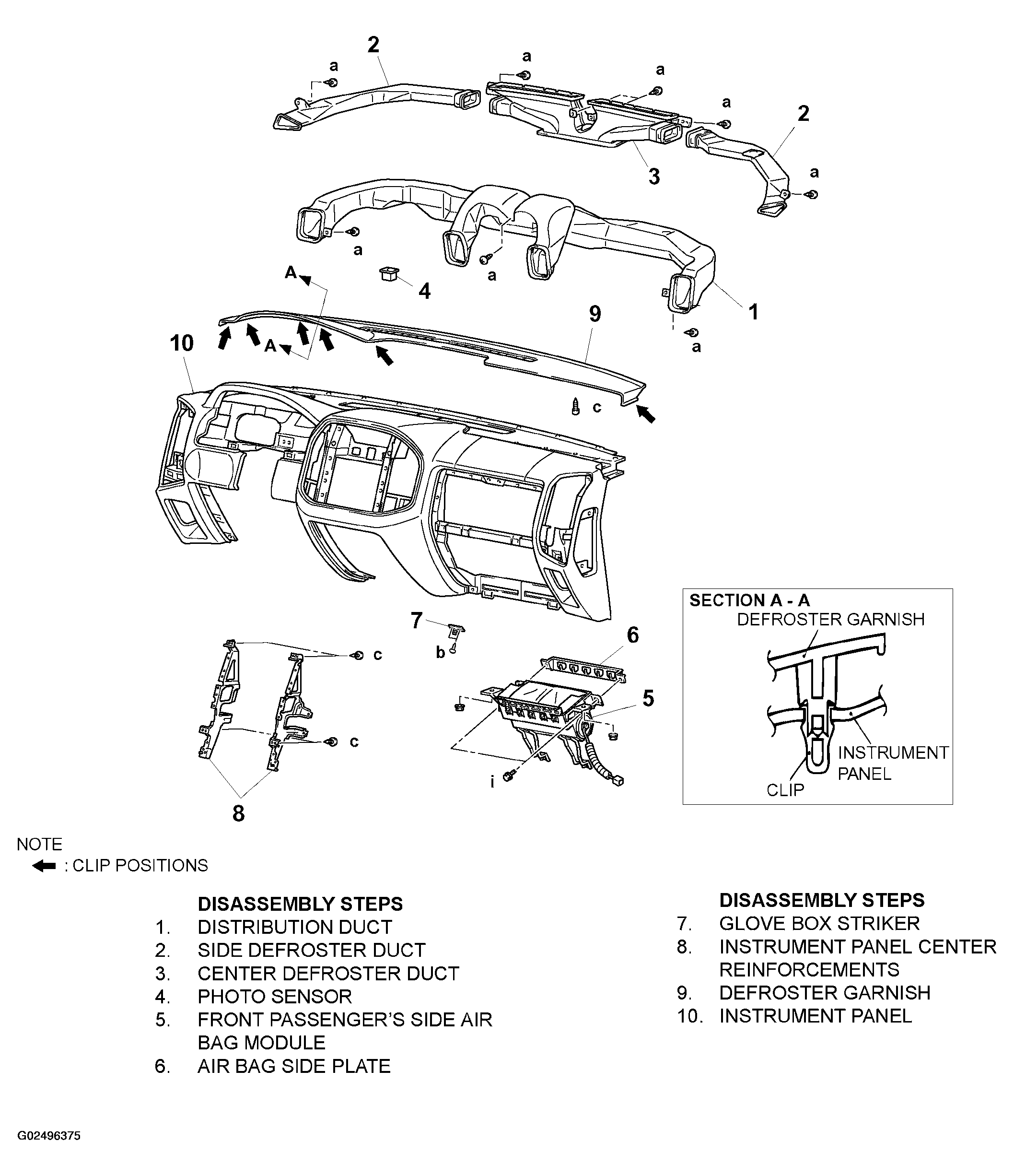

Fig 1: Disassembling/Assembling Interior Instrument Panel Assembly
G02496375Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
