Home >> Mitsubishi >> 2005 >> Montero >> Repair and Diagnosis >> Restraints >> Passive Restraints >> Interior >> Third Seat Assembly >> Disassembly And Assembly >> Notes
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Disassembly And Assembly: Notes

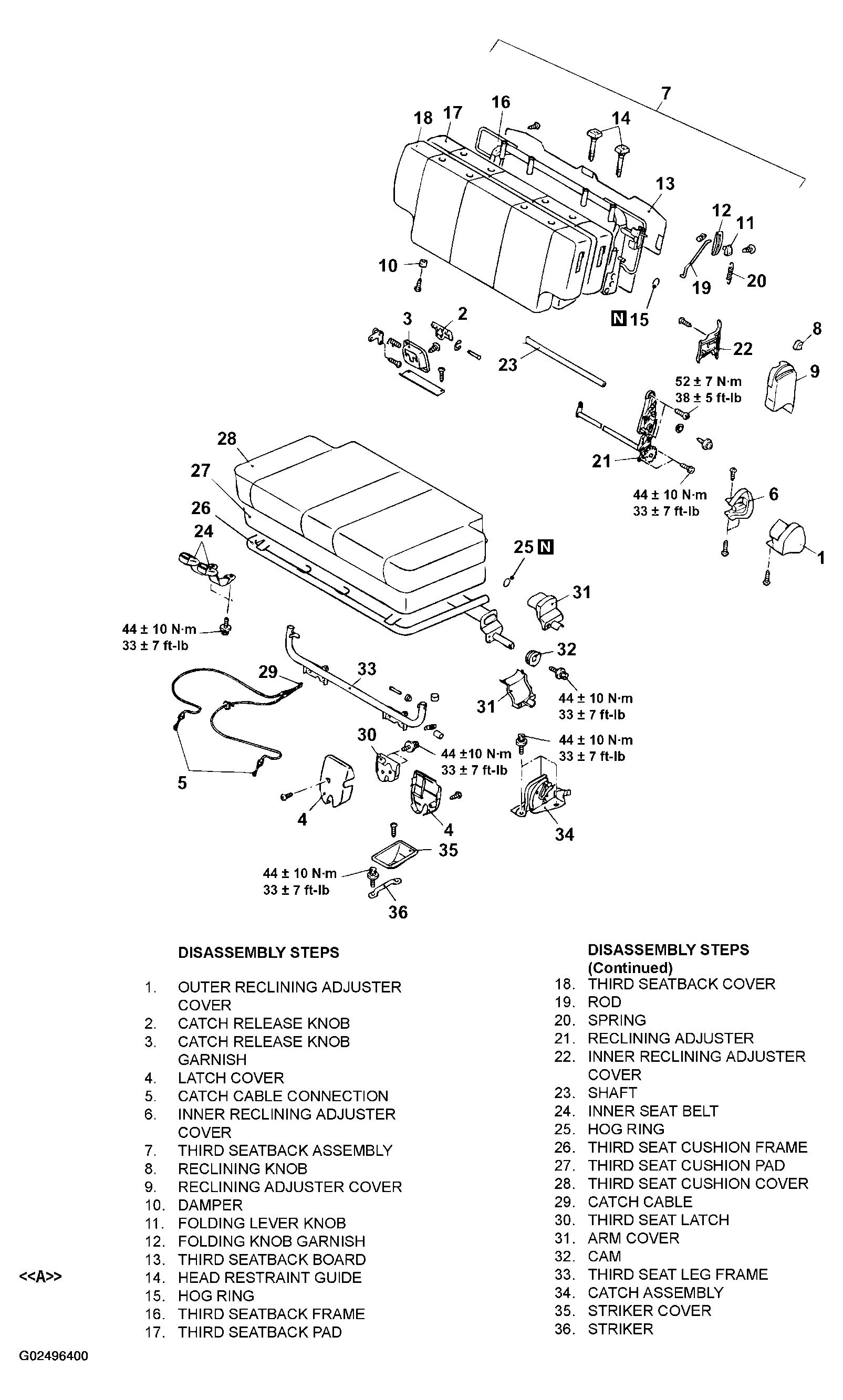

Fig 1: Disassembling/Assembling Third Seat Assembly
G02496400Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
