>> G << Seal Ring Installation.

Because the seal rings expand after installation, tighten after installing by using special tool MB991317 to compress the rings, or press down by hand.

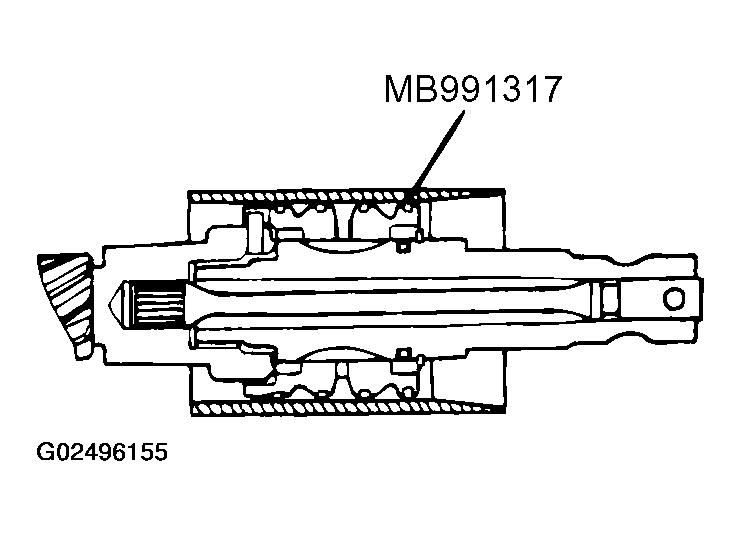

Fig 1: Compressing Rings Using Special Tool
G02496155Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
