>> I << End Plug Installation

CAUTION: Apply the sealant to the entire threaded part. Ensure that no excess is squeezed out into the gear housing.
  1. Apply 3M™ AAD Part number 8672, 8679, 8678, 8663, 8661 or equivalent to the threaded part of the end plug.
  2. Secure the threaded portion of the end plug at two places by using a punch.

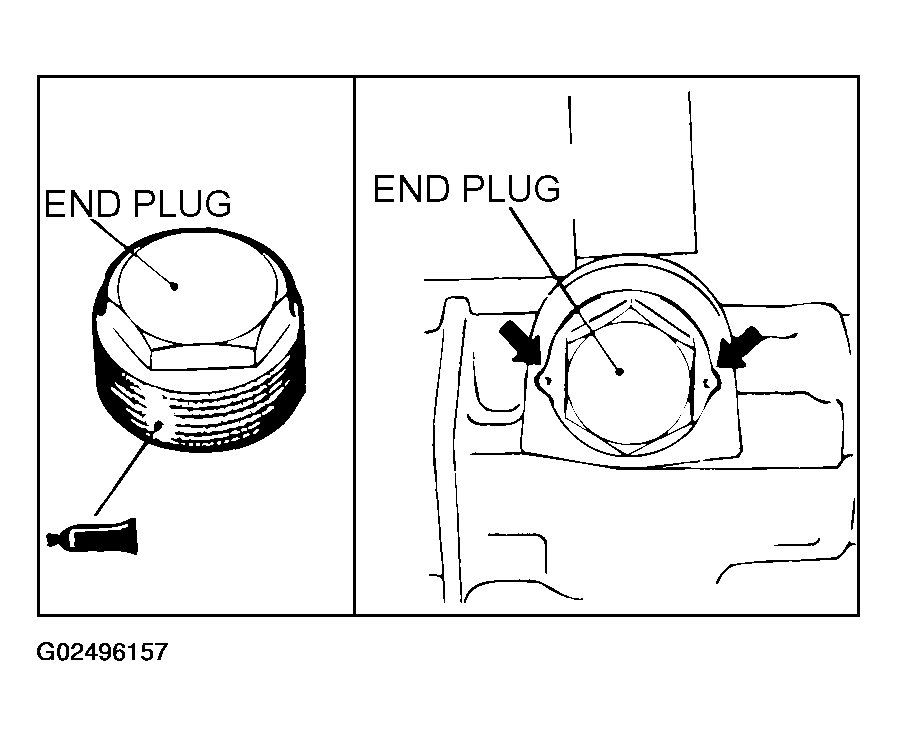

    Fig 1: Applying Sealant To Threaded Part Of End Plug
    G02496157Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
