Removal And INTALLATION: Notes

WARNING: Before removing the steering gear box, refer to SERVICE PRECAUTIONS ( ) and AIR BAG MODULES AND CLOCK SPRING ( ). Center the front wheels and remove the ignition key. Failure to do so may damage the SRS clock spring and render the SRS system inoperative, risking serious injury.

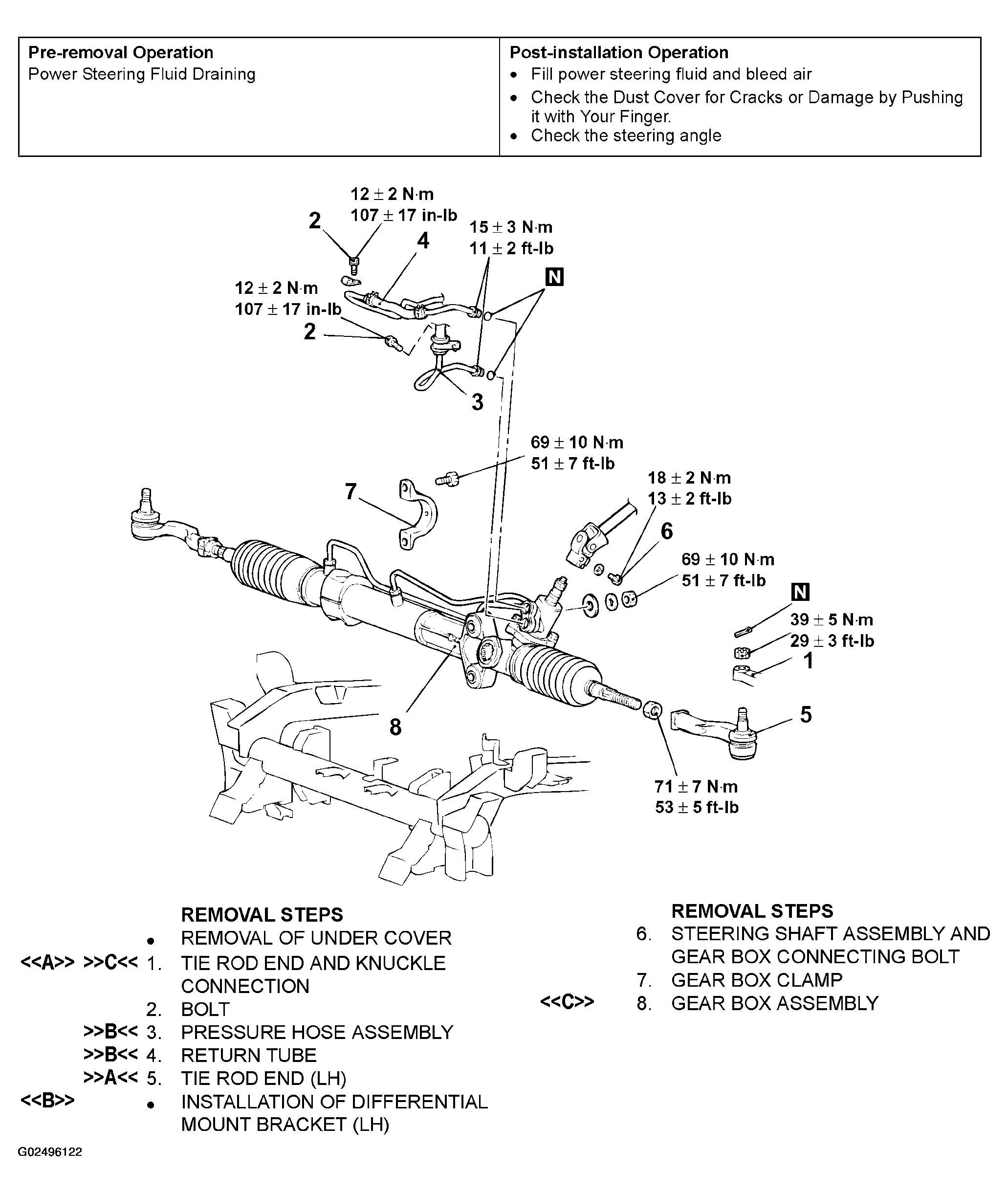

Fig 1: Identifying Power Steering Gear Box Assembly Components
G02496122Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
