Home >> Mitsubishi >> 2005 >> Montero >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering Oil Pump Assembly >> Disassembly And Assembly >> Assembly Service Point >> Notes
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Assembly Service Point: Notes

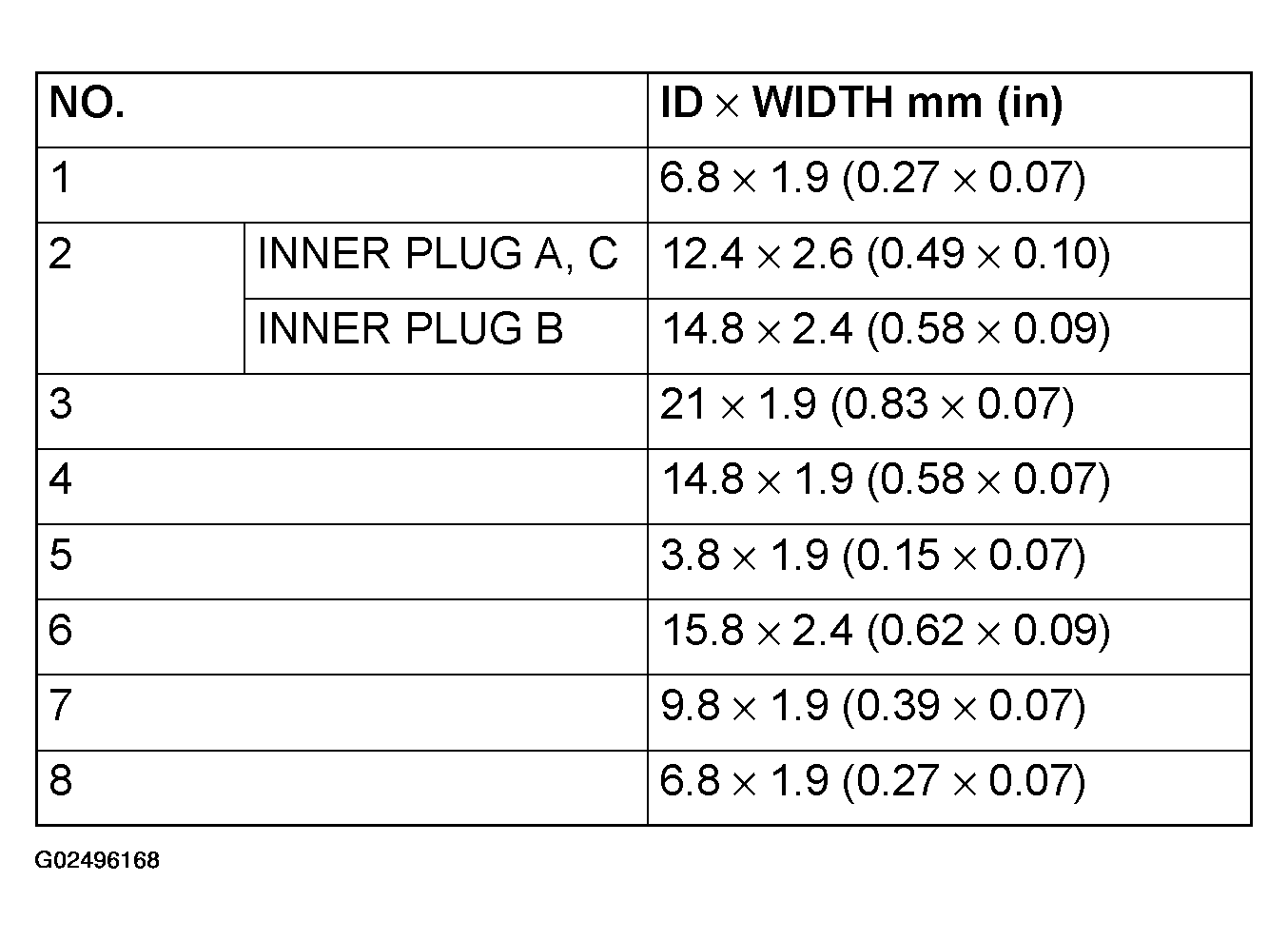

Fig 1: O-Rings Specification
G02496168Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

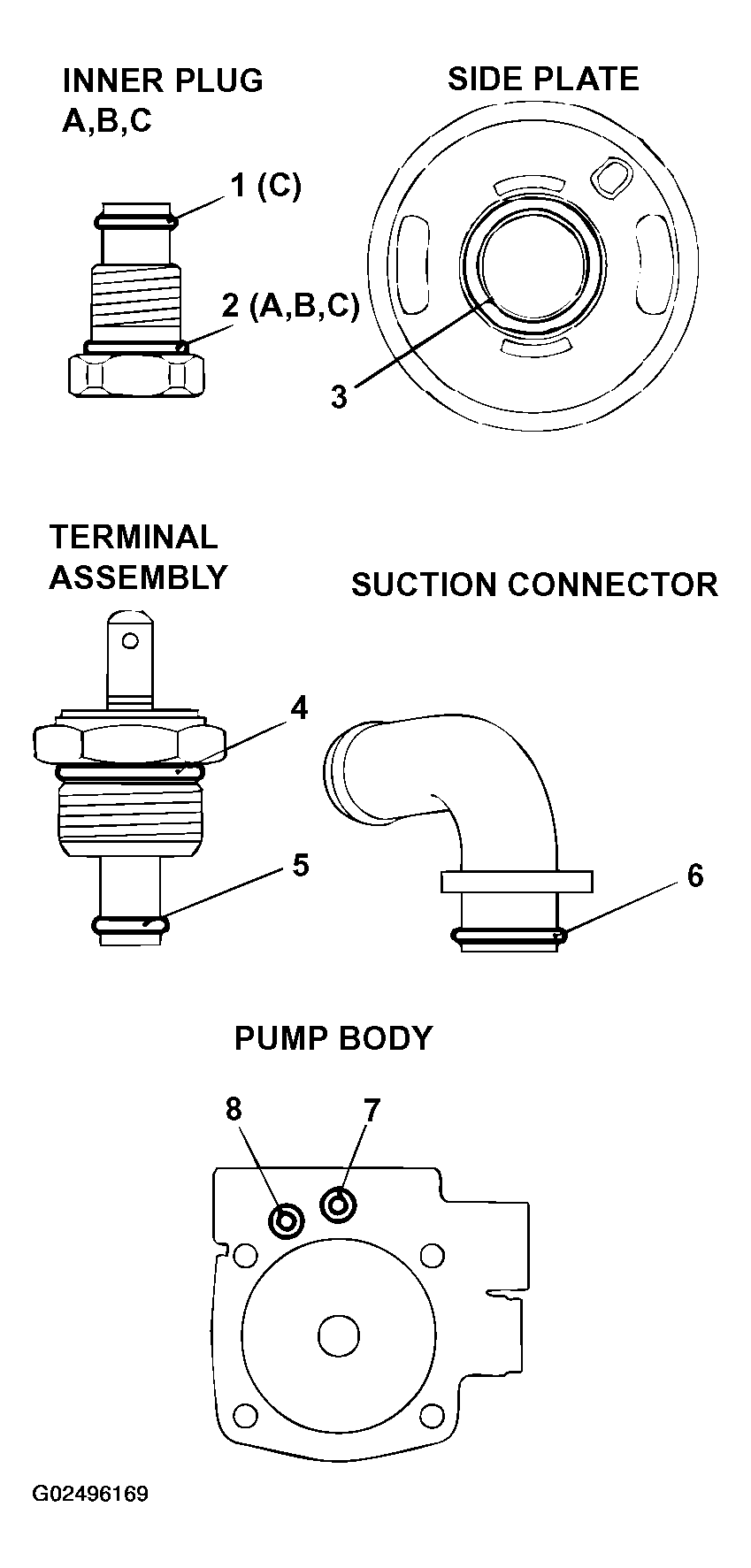

Fig 2: Identifying O-Rings
G02496169Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
