>> E << Vane Installation

Install the vane to the rotor with its round edge outwards (facing towards cam ring).

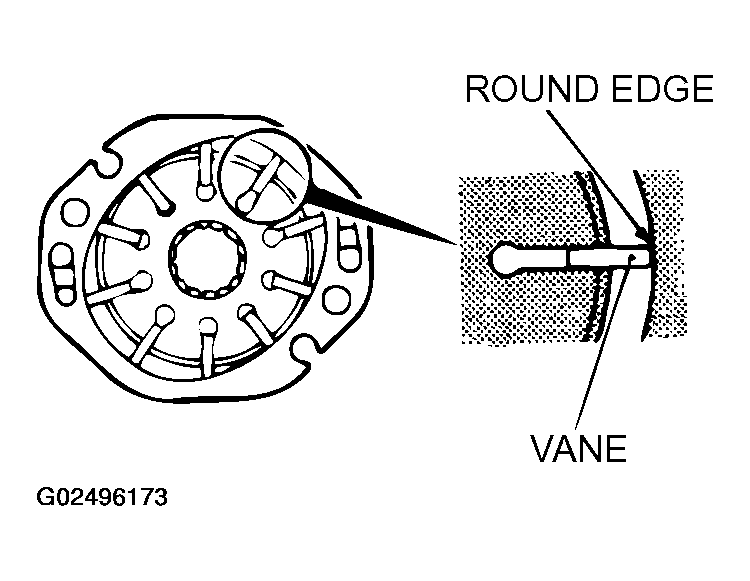

Fig 1: Installing Vane To Rotor With Round Edge Outwards
G02496173Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
