Removal And Installation: Notes

CAUTION: The rear propeller shaft incorporates a carbon fiber-reinforced plastic tube, so be sure to refer to PROPELLER SHAFT during removal.

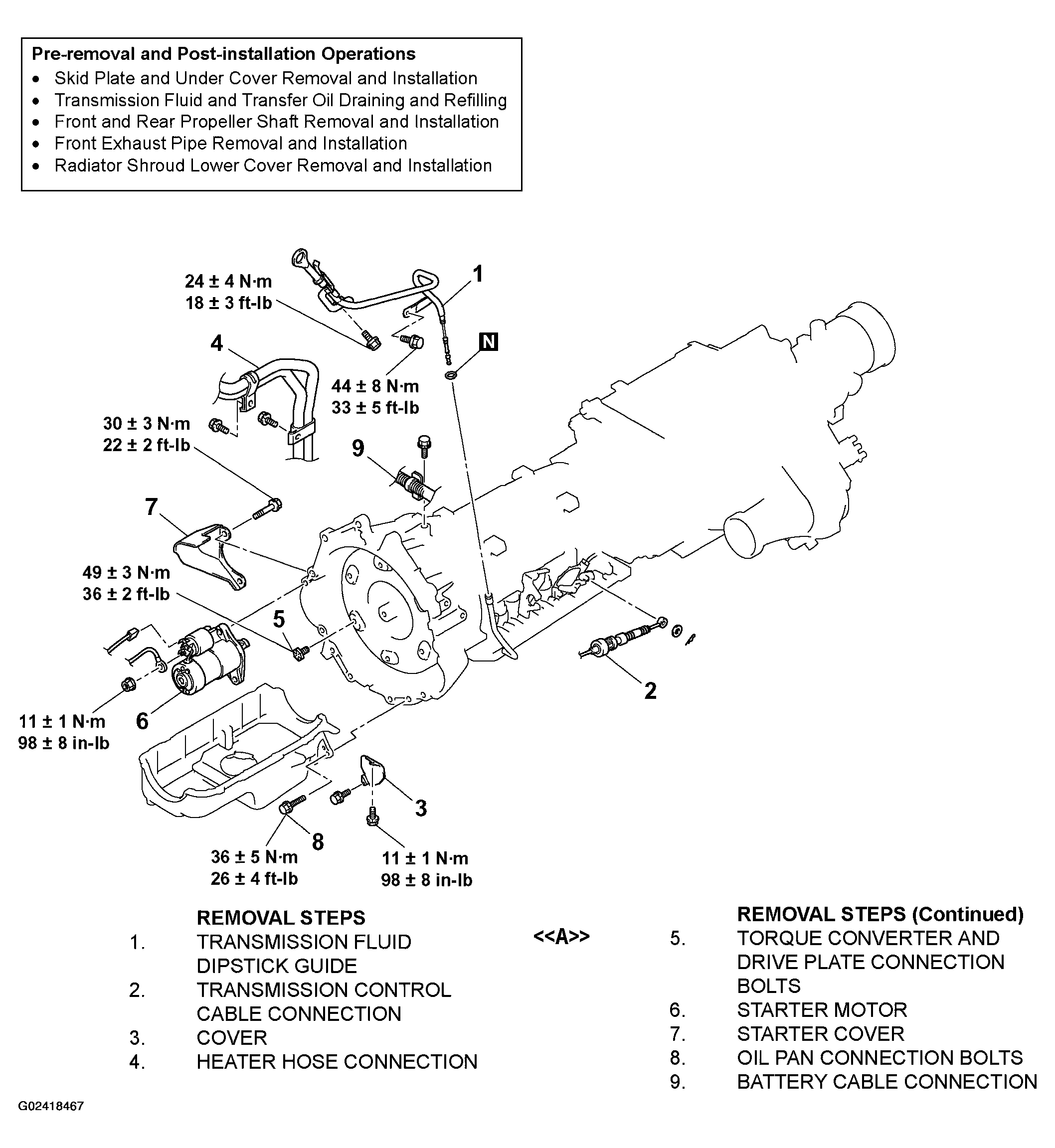

Fig 1: Removing/Installing Transmission And Transfer Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

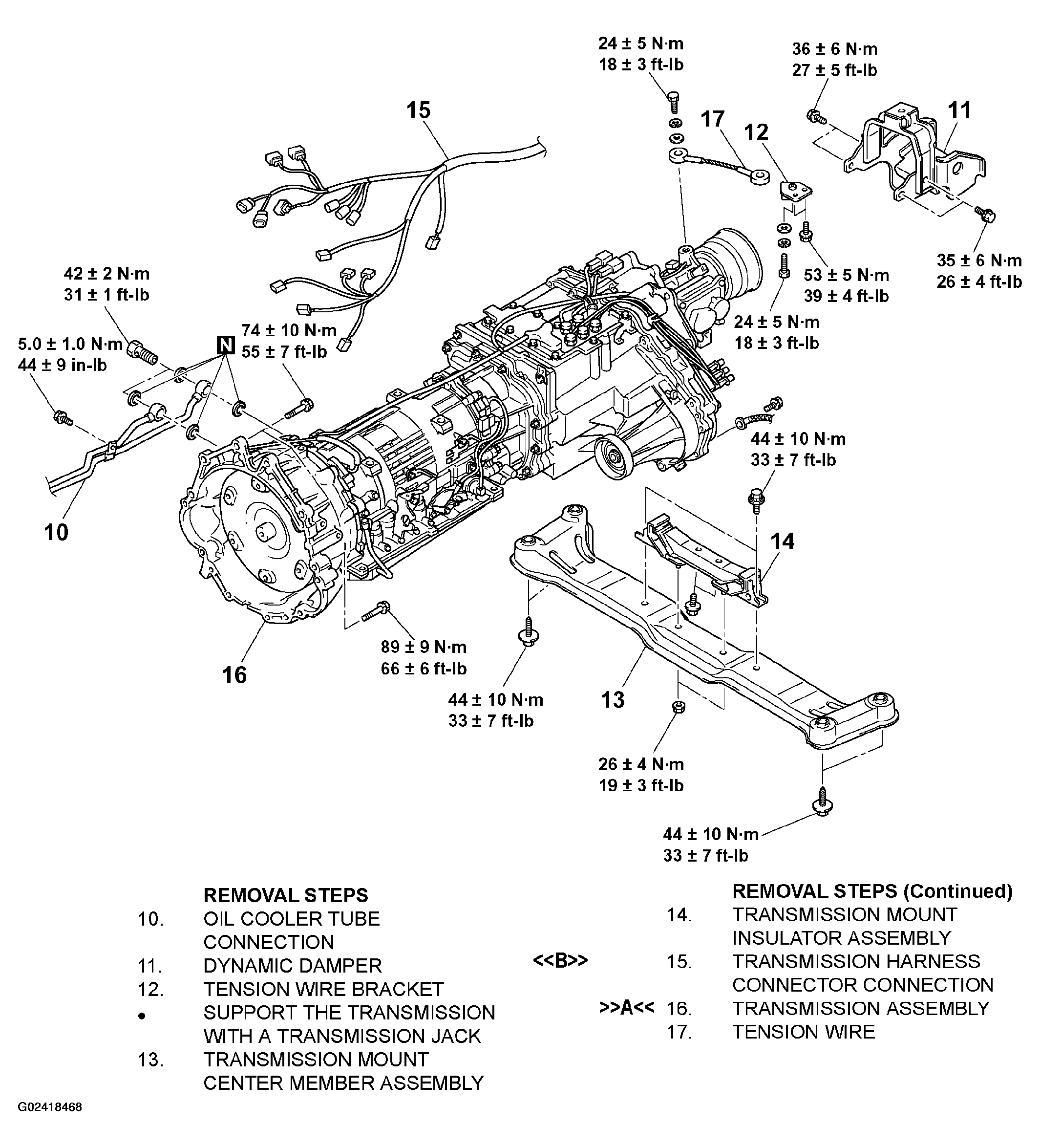

Fig 2: Removing/Installing Transmission And Transfer Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
