>> A << Spring Pin Installation

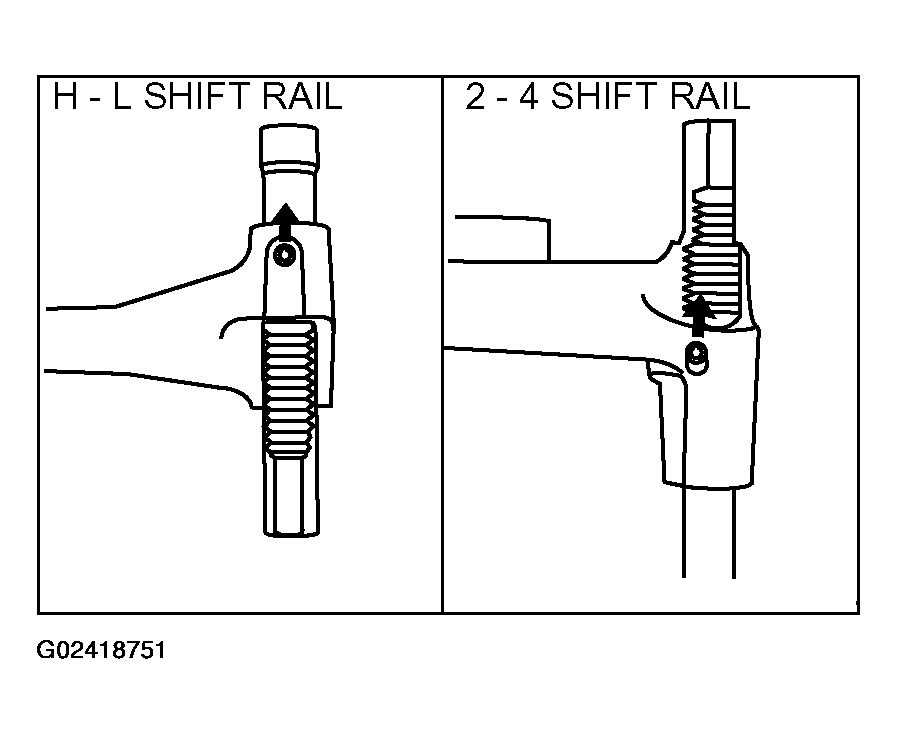

Install the spring pin so that the slit of spring pin faces forward of the transfer.

Fig 1: Installing Oil Seal
G02418751Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
