Disassembly And Assembly: Notes

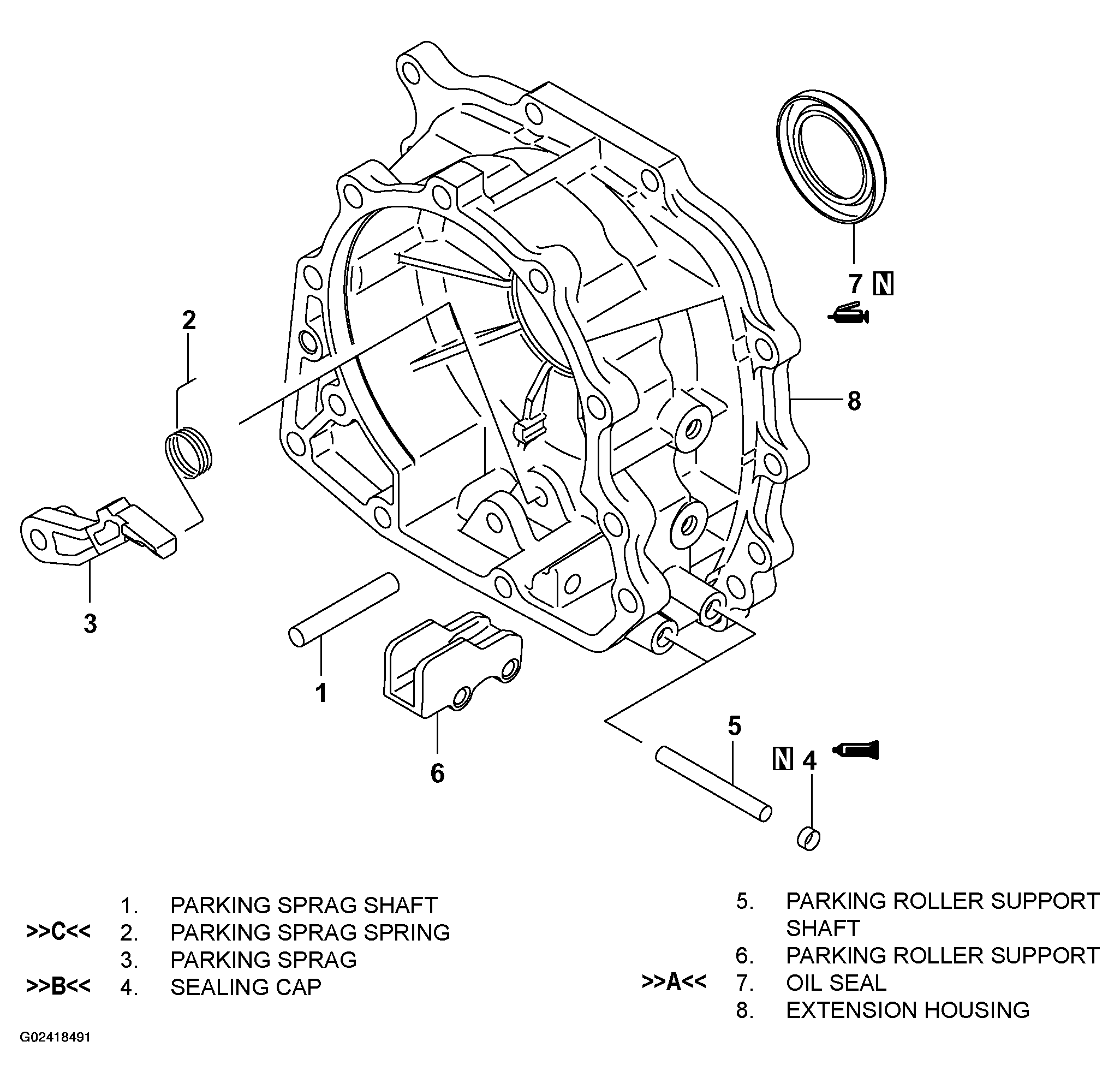

Fig 1: Identifying Transfer Case Adapter Components
G02418491Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
