Disassembly And Assembly: Notes

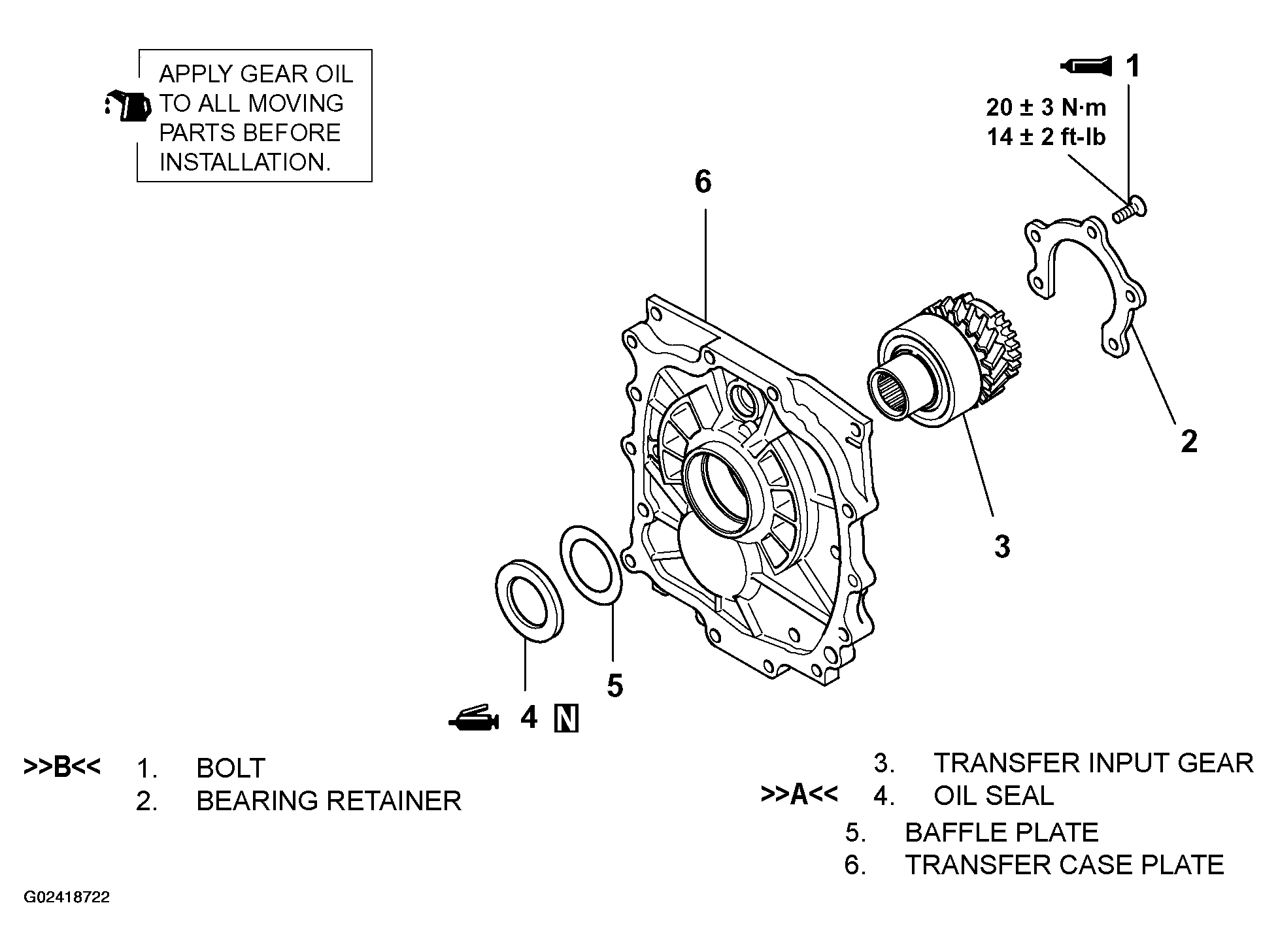

Fig 1: Identifying Transfer Case Plate Components
G02418722Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
