>> L << Synchronizer Outer Ring/Synchronizer Cone/Synchronizer Inner Ring Installation

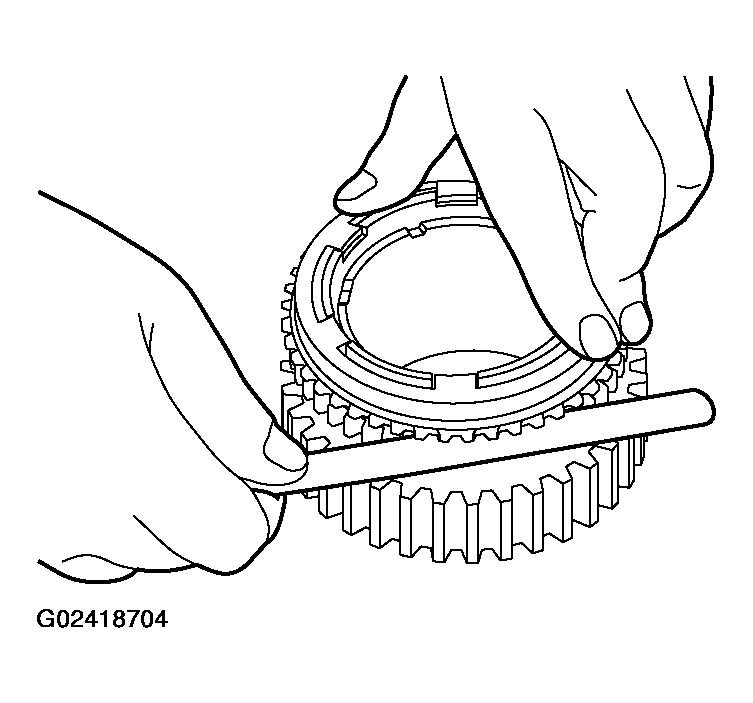

- Push the synchronizer outer ring, synchronizer corn and the synchronizer inner ring into the drive sprocket in combined state, and then measure the indicated dimension of the drive sprocket and synchronizer outer ring.
- LIMIT: 0.3 mm (0.012 inch)
- In case that the value is out of limit, exchange as the synchronizer ring set.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

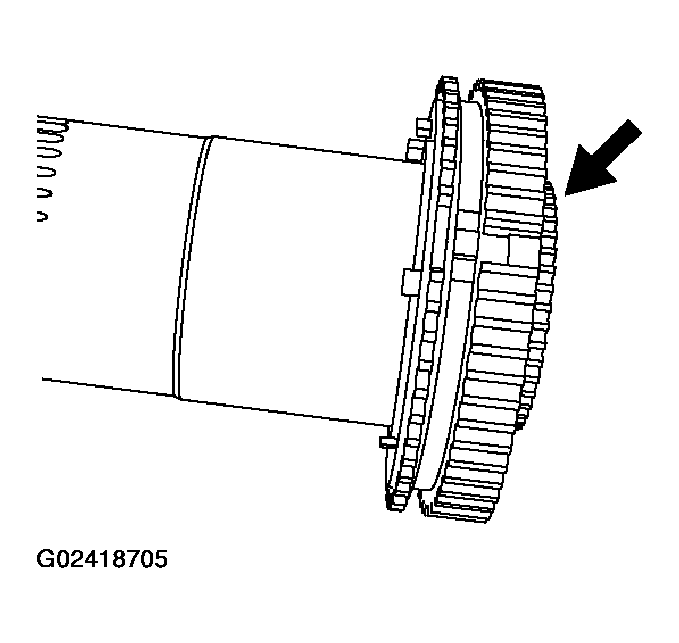

- Combine the synchronizer outer ring, the synchronizer cone and the synchronizer inner ring, and install them by mating the notch of 2-4WD clutch hub and protrusion of the synchronizer outer ring.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
