Remove and Install

KNOCK SENSOR

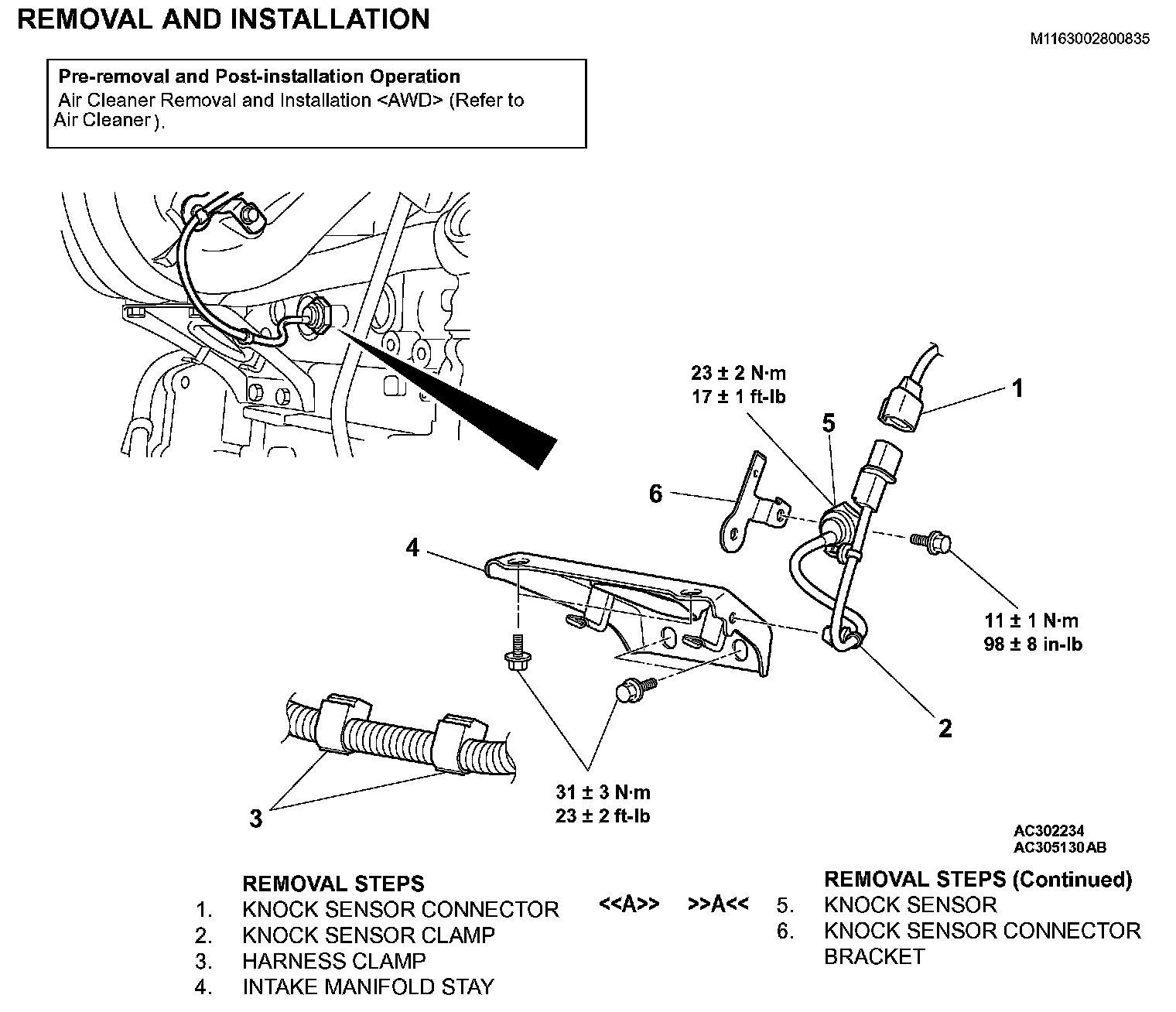

REMOVAL AND INSTALLATION

Required Special Tool:
MD998773: Knock Sensor Wrench

REMOVAL SERVICE POINT




<> KNOCK SENSOR REMOVAL

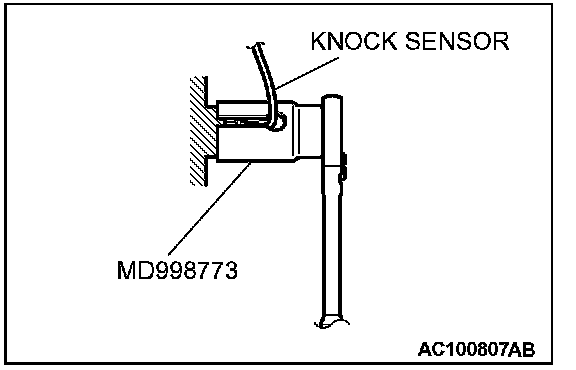

Use special tool MD998773 to remove the knock sensor.

INSTALLATION SERVICE POINT




>>A<< KNOCK SENSOR INSTALLATION
Use special tool MD998773 to install the knock sensor.
