DTC C1505: Steering Angle Sensor, DTC C1506: Steering Angle Sensor Error: Notes

WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.

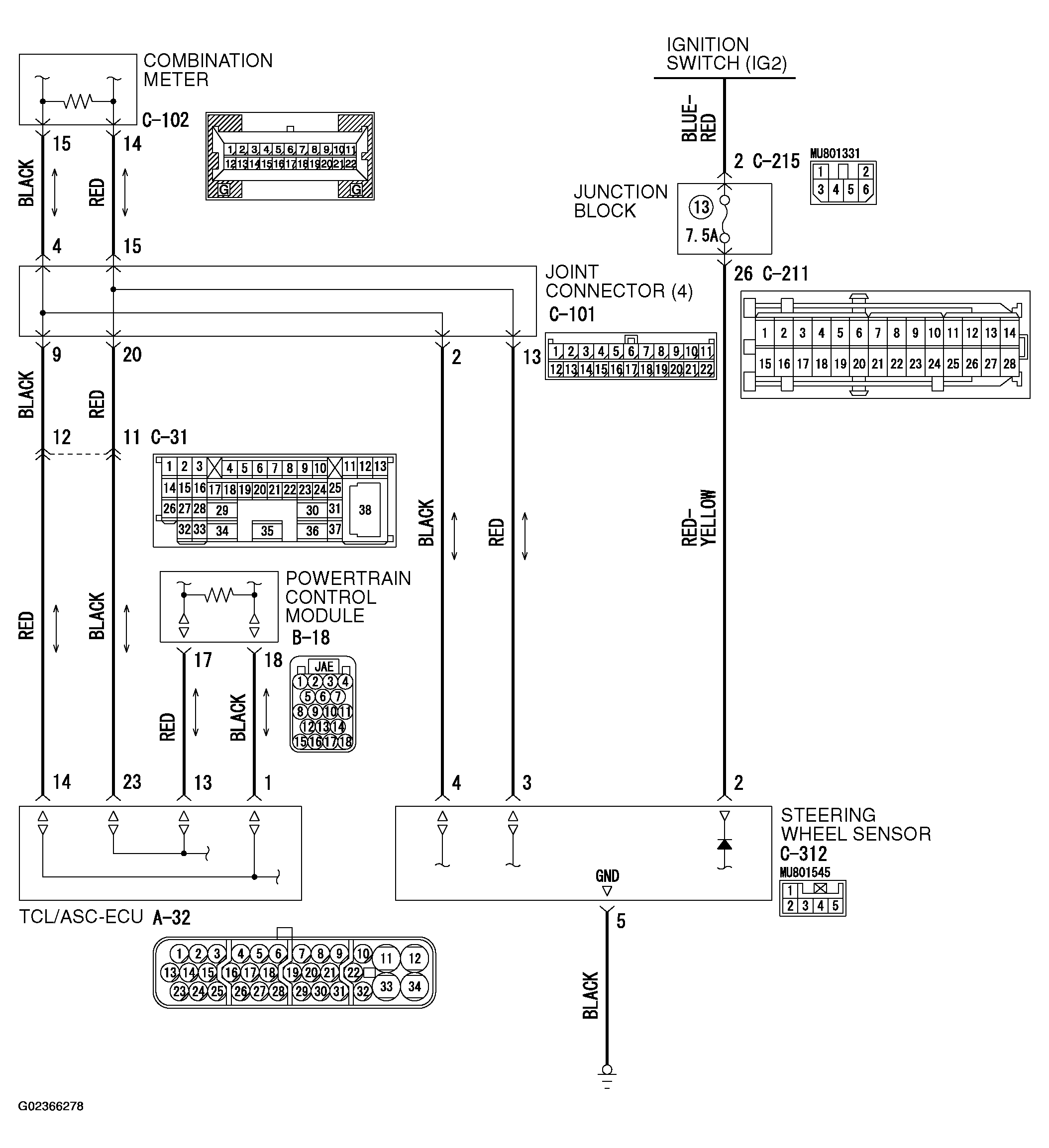

Fig 1: Steering Wheel Sensor Communication Circuit Diagram (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

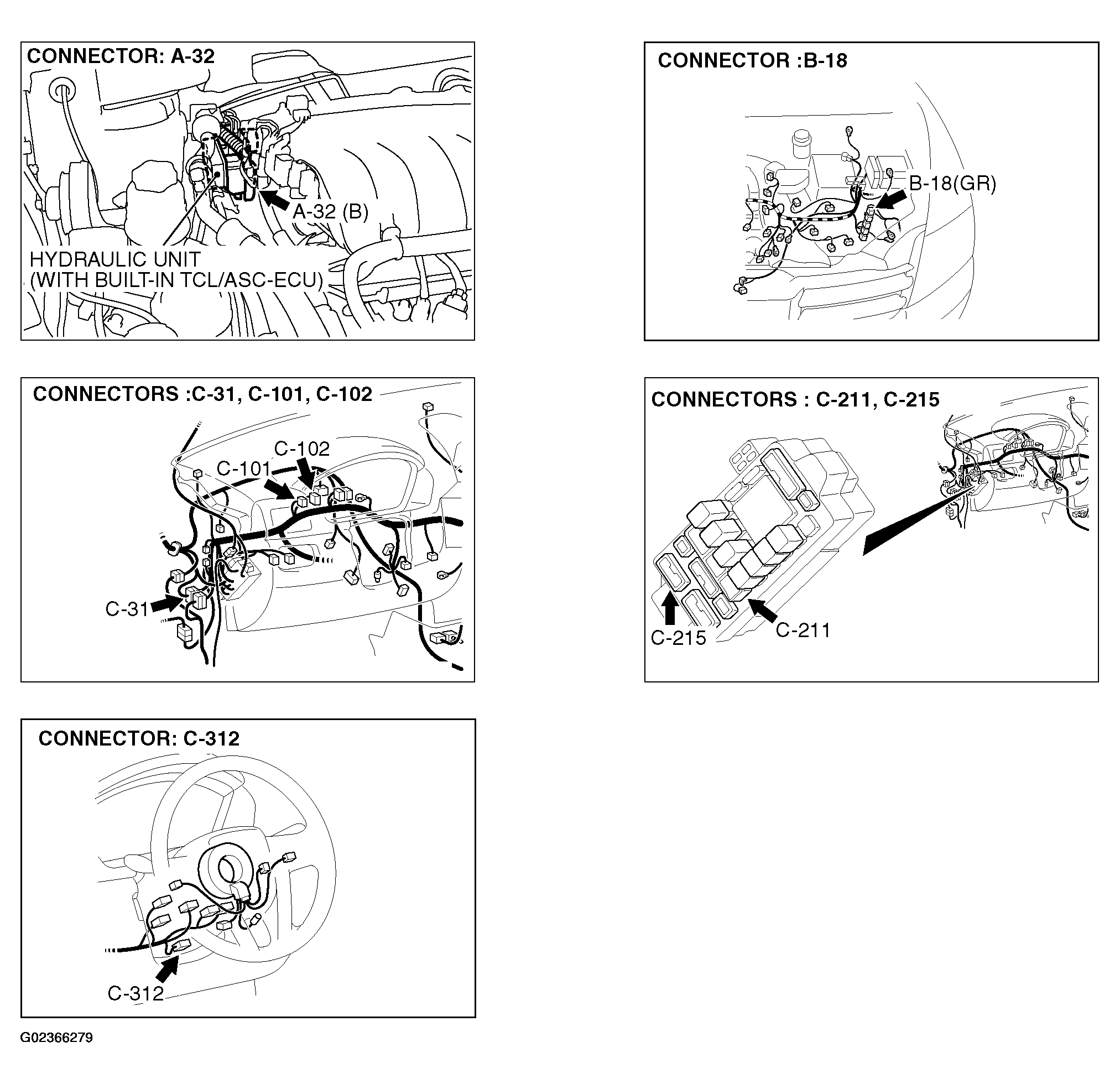

Fig 2: Steering Wheel Sensor Communication Circuit Diagram (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

CAUTION: If there is any problem in the CAN bus lines, an incorrect diagnostic trouble code may be set. Prior to this diagnosis, diagnose the CAN bus lines.

CAUTION: The steering wheel sensor-related DTC may be set when DTC C1506 is set. Diagnose the steering wheel sensor first when the steering wheel sensor-related DTC is set.
