VIN Code REGISTERATION Procedure For ETACS-Ecu.

Required Special Tools:

• MB991958: Scan Tool (MUT-III Sub Assembly)
  • MB991824: V.C.I.
  • MB991827: MUT-III USB Cable
  • MB991910: MUT-III Main Harness A

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
   Fig 1: Connecting Scan Tool To Data Link Connector

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Select "ECLIPSE."

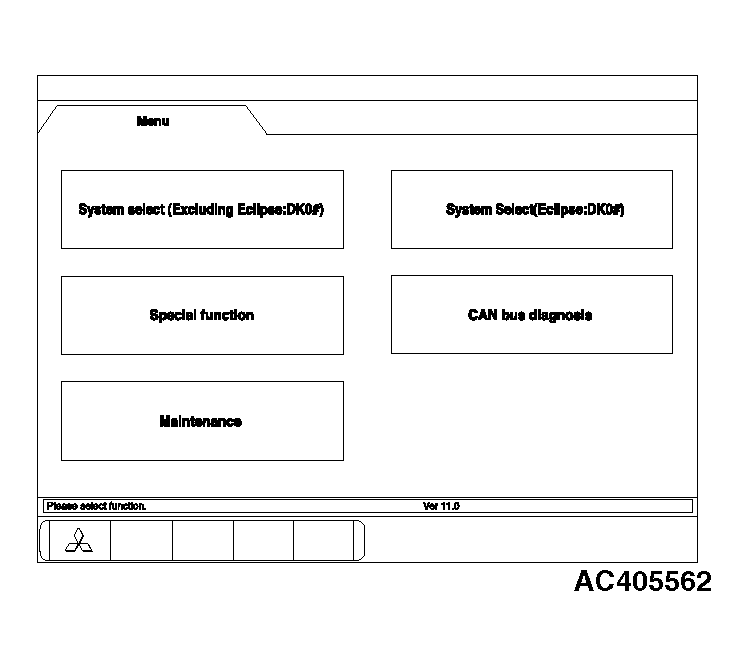

   Fig 2: Identifying Scan Tool Display - Eclipse

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Choose "IMMOBILIZER" from the "POWER TRAIN" tab.

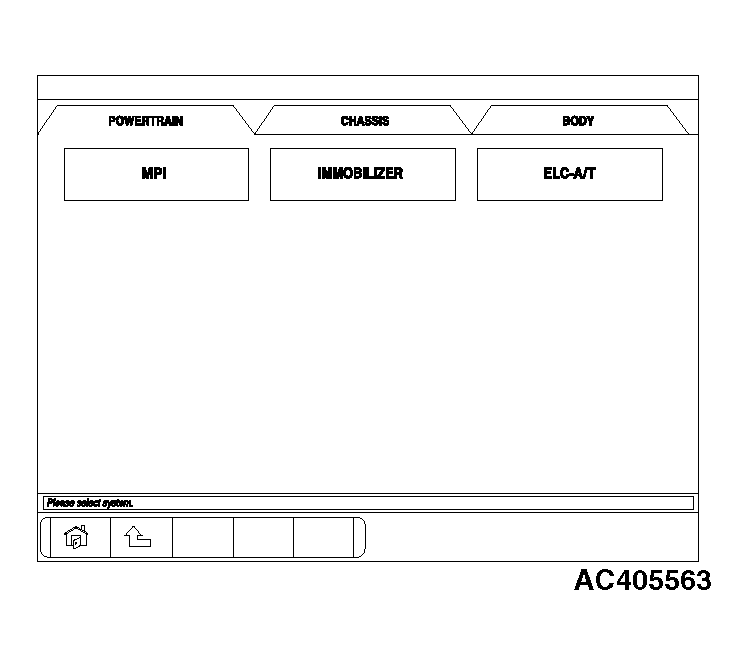

   Fig 3: Identifying Scan Tool Display - Immobilizer

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Enter the VIN code of the vehicle that is being registered. Then, press "OK" button.

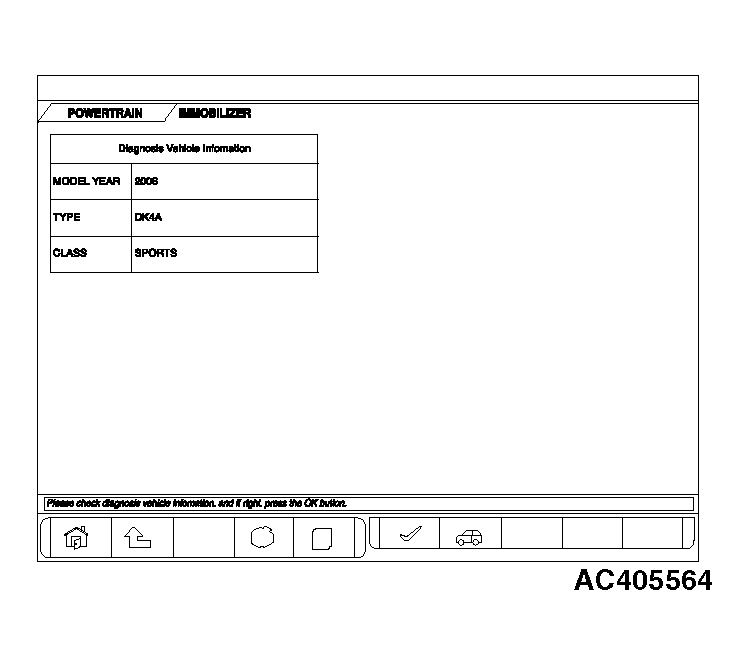

   Fig 4: Identifying Scan Tool Display - VIN Code

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

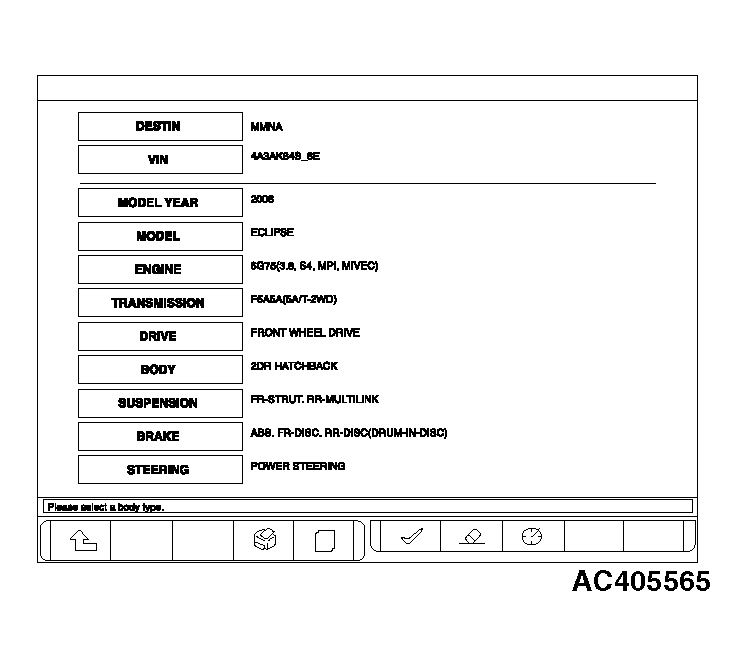

   Fig 5: Identifying Scan Tool Display - VIN Code

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
6. Select "Coding."

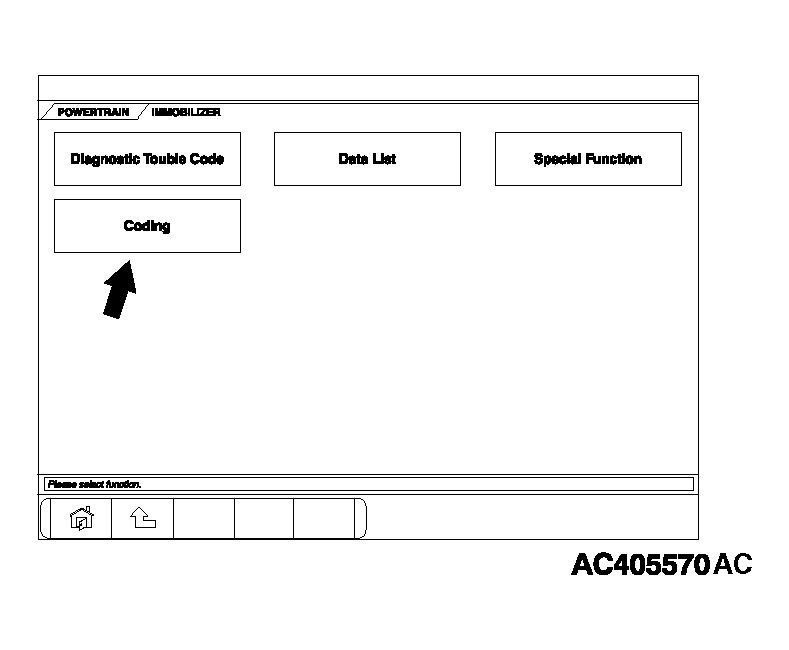

   Fig 6: Identifying Scan Tool Display - Coding

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
7. "VIN Writing."

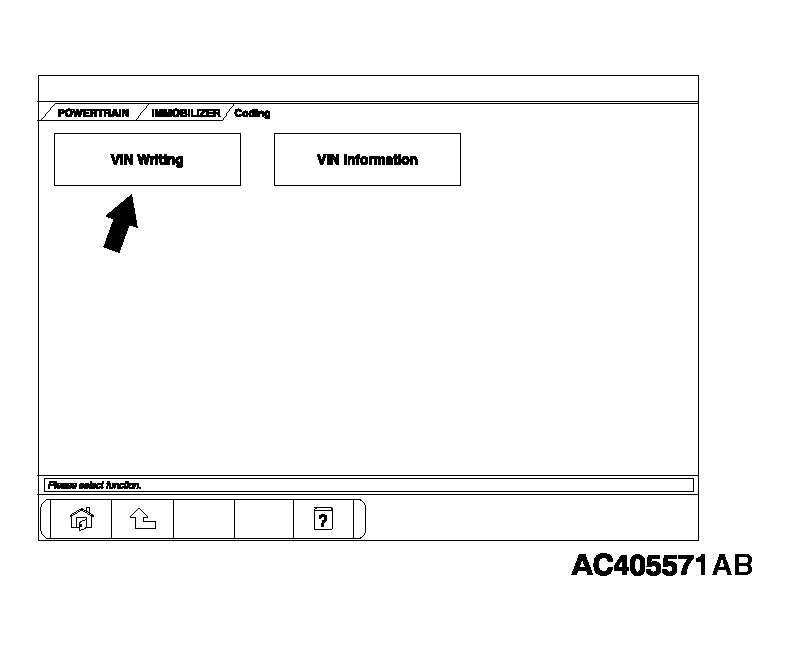

   Fig 7: Identifying Scan Tool Display - VIN Writing

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. Enter the VIN code of the vehicle that is being registered. Then, press "OK" button.

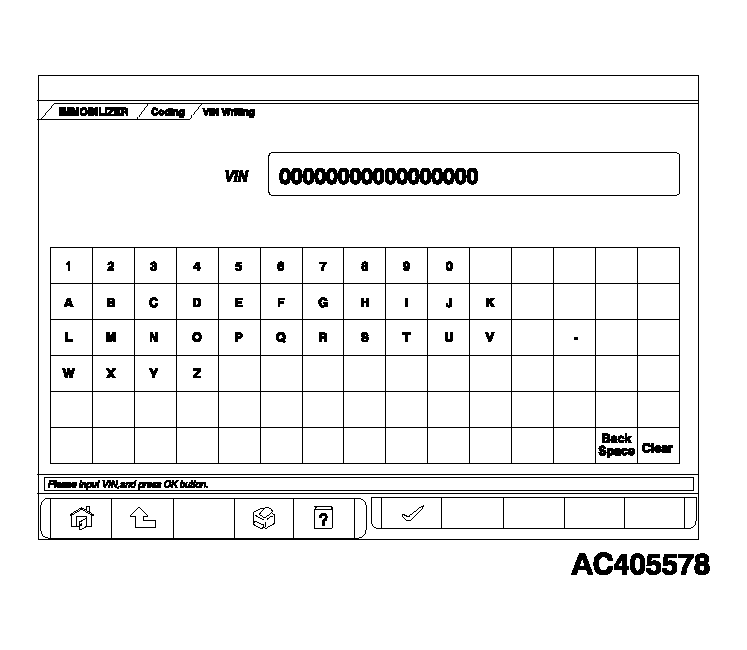

   Fig 8: Identifying Scan Tool Display - Enter VIN Code

   Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. When the execution confirmation menu of the VIN writing is displayed, press the OK button.
10. When the VIN writing completion menu is displayed, press the OK button.

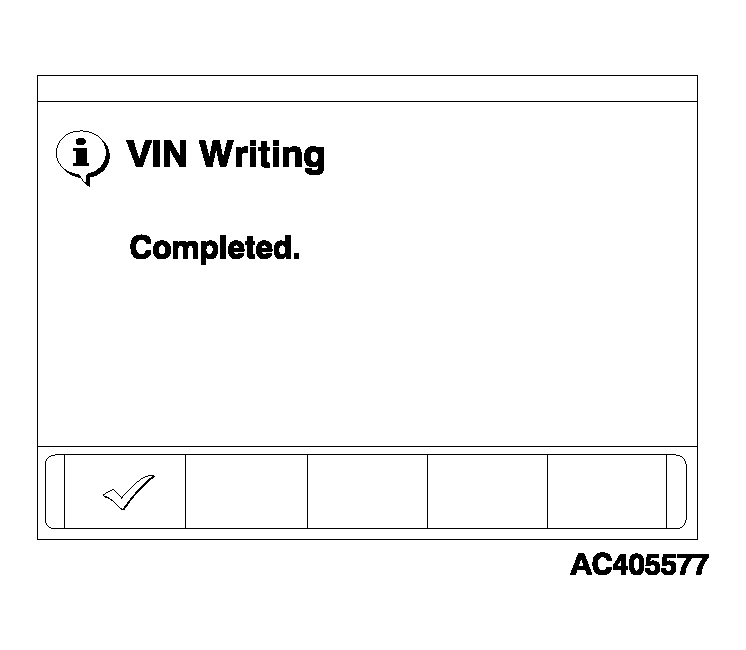

    Fig 9: Identifying Scan Tool Display - VIN Writing Completion

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
11. The results of VIN writing are displayed.

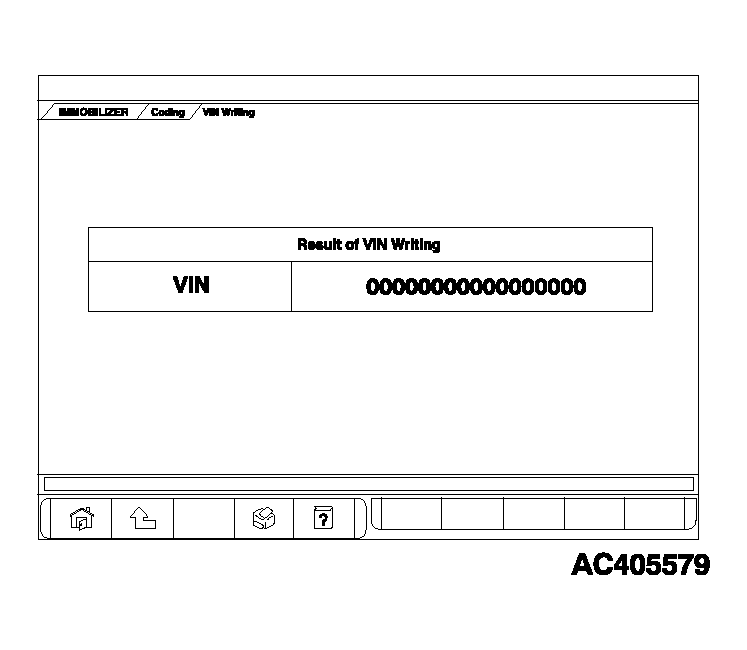

    Fig 10: Identifying Scan Tool Display - Results Of VIN Writing

    Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
12. Register the encrypted code. (Refer to ENCRYPTED CODE REGISTRATION CRITERIA TABLE ).
