INSPECTION PROCEDURE M-2: ETACS-ECU does not receive any signal from the ignition switch (IG1).: Notes

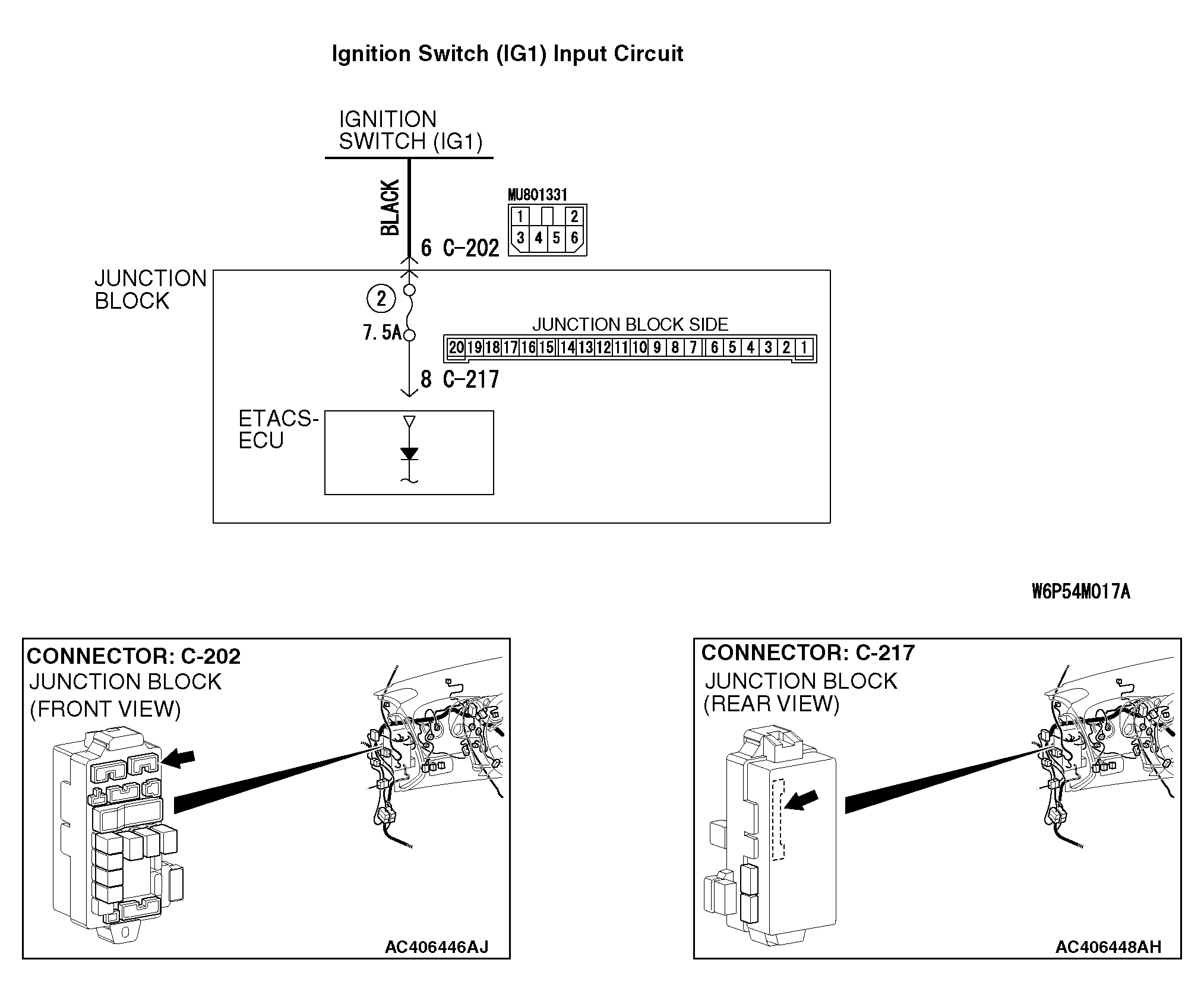

Fig 1: Ignition Switch (IG1) Input Circuit Diagram
G04239895Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
