INSPECTION PROCEDURE E-2: Keyless Entry System: The dome light, the turn-signal lights and the horn do not operate through the answerback function.: Notes

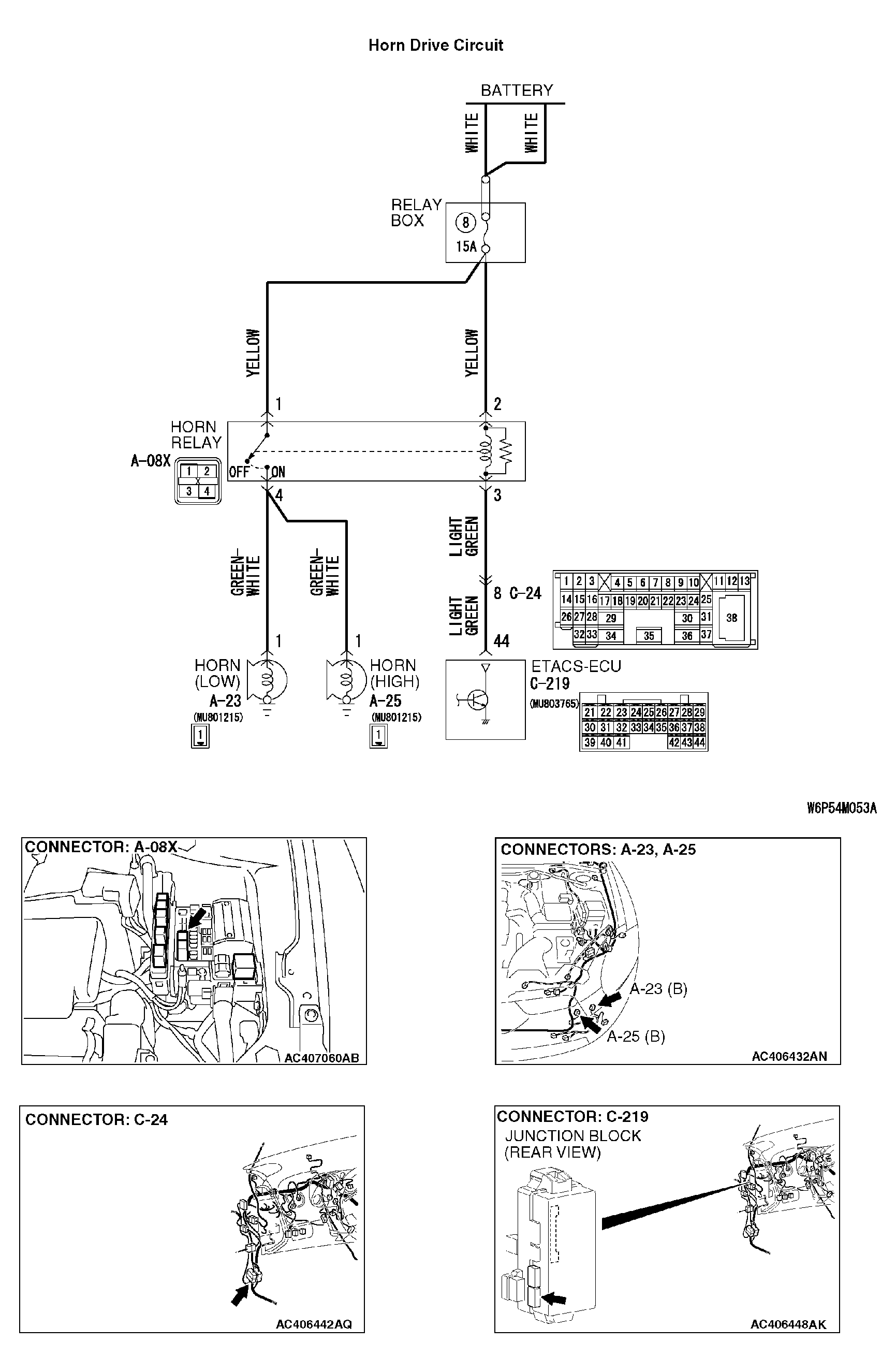

Fig 1: Horn Drive Circuit Diagram
G04239436Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
