INSPECTION PROCEDURE 2: Outside/Inside Air Changeover is not possible.: Notes

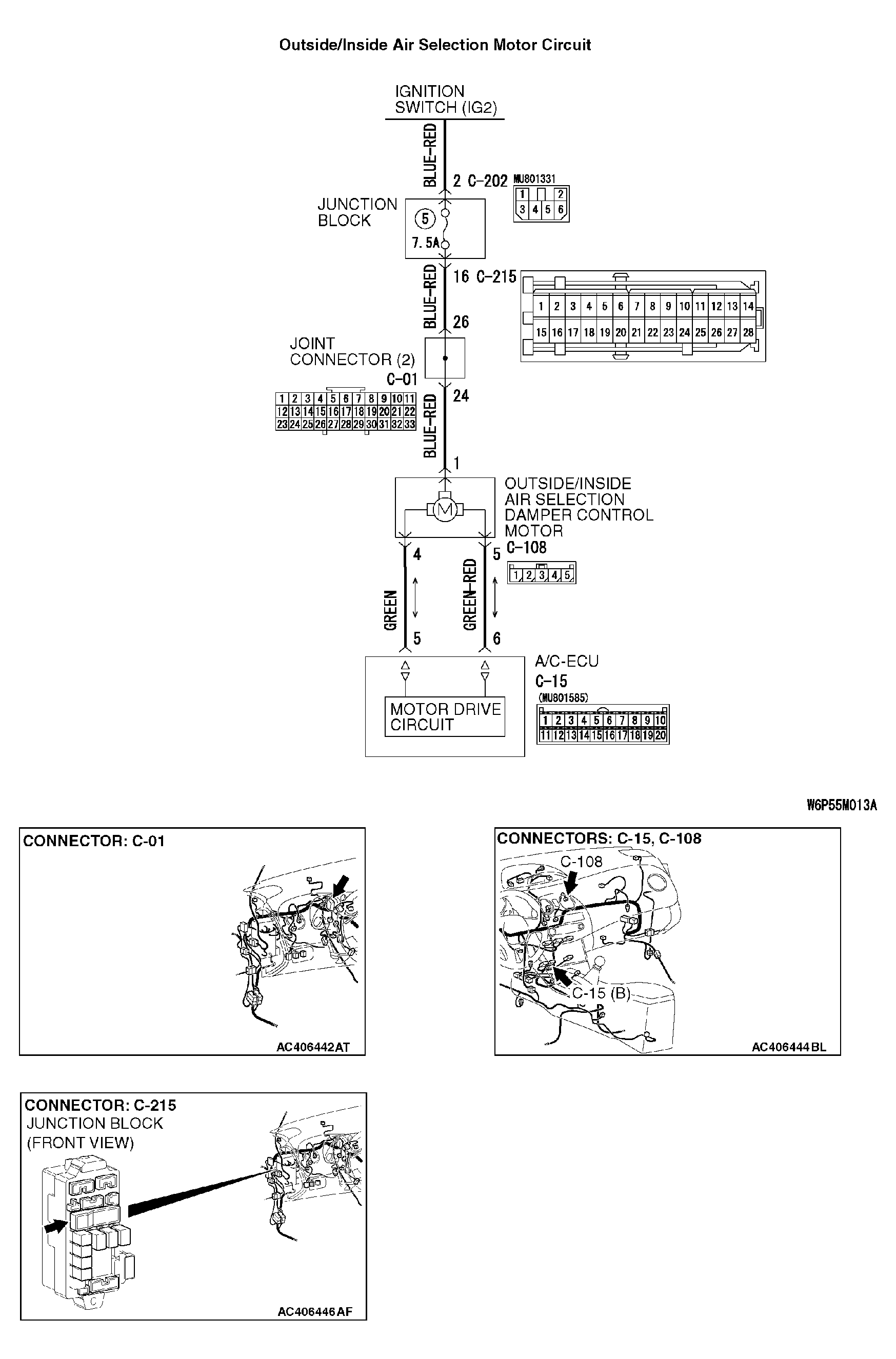

Fig 1: Outside/Inside Air Selection Motor Circuit Diagram
G04241005Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
