INSPECTION PROCEDURE 10: Rear Window Defogger Function does not Operate.: Notes

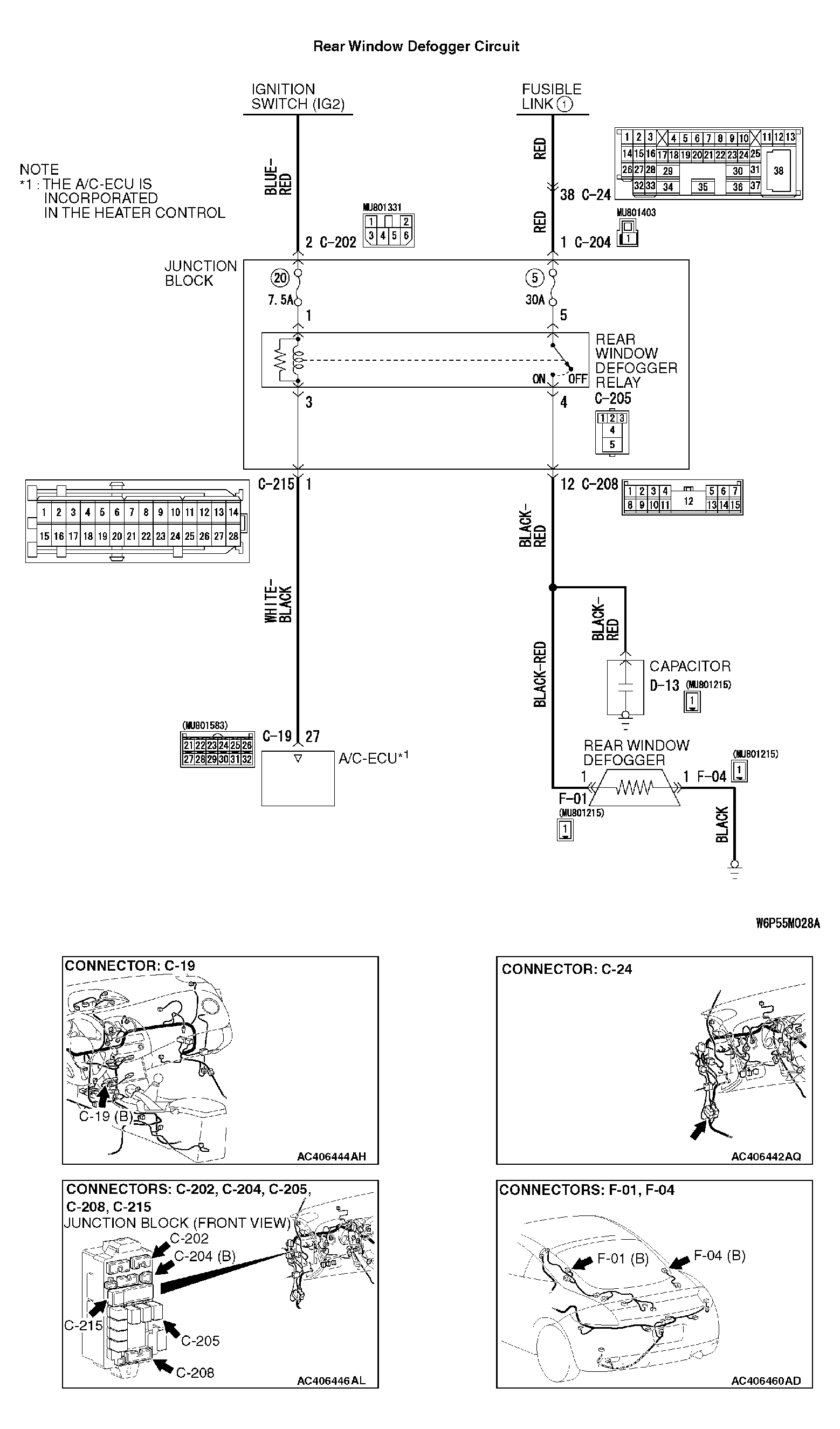

Fig 1: Rear Window Defogger Circuit Diagram
G04240697Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
