Special Tool

SPECIAL TOOL DESCRIPTION

TOOL	TOOL NUMBER AND NAME	SUPERSESSION	APPLICATION
	MB991958 A: MB991824 B: MB991827 C: MB991910 D: MB991911 E: MB991914 F: MB991825 G: MB991826 MUT-III Sub Assembly A: Vehicle communication interface (V.C.I.) B: MUT-III USB cable C: MUT-III main harness A (Vehicles with CAN communication system) D: MUT-III main harness B (Vehicles without CAN communication system) E: MUT-III main harness C (for Daimler Chrysler models only) F: MUT-III measurement adapter G: MUT-III trigger harness	MB991824-KIT NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.	For registration of Encrypted code CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.

TOOL

TOOL NUMBER AND NAME

SUPERSESSION

APPLICATION

MB991958

A: MB991824
B: MB991827
C: MB991910
D: MB991911
E: MB991914
F: MB991825
G: MB991826

MUT-III Sub Assembly

A: Vehicle communication interface (V.C.I.)

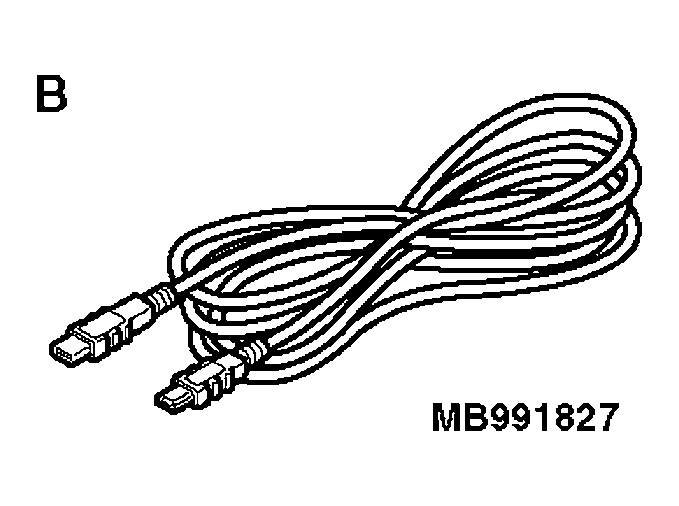

B: MUT-III USB cable

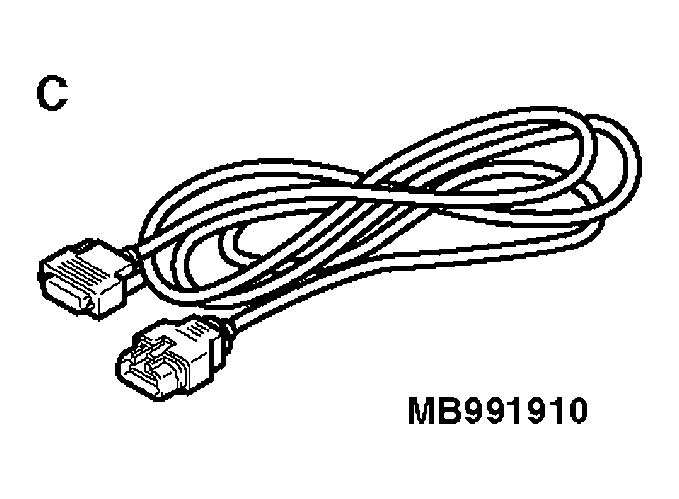

C: MUT-III main harness A (Vehicles with CAN communication system)

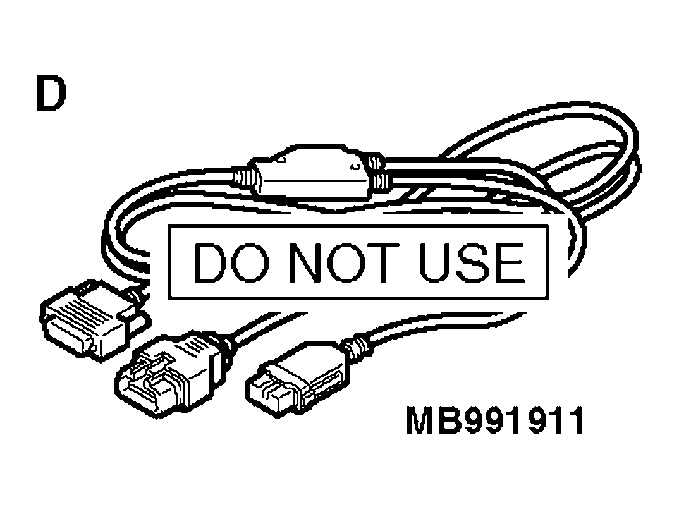

D: MUT-III main harness B (Vehicles without CAN communication system)
E: MUT-III main harness C (for Daimler Chrysler models only)

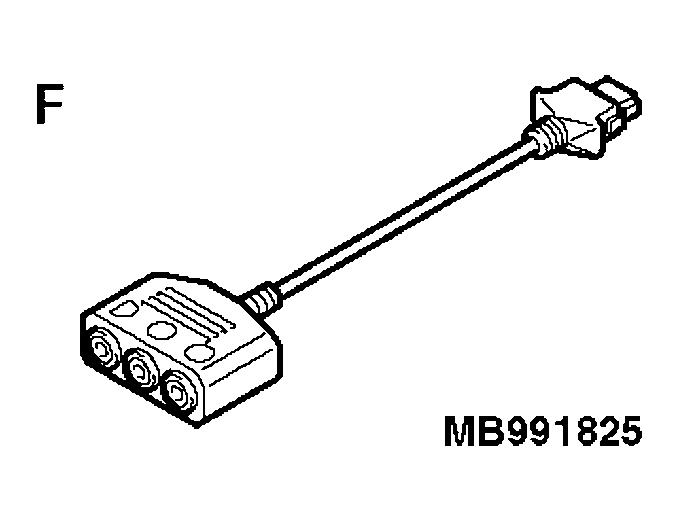

F: MUT-III measurement adapter

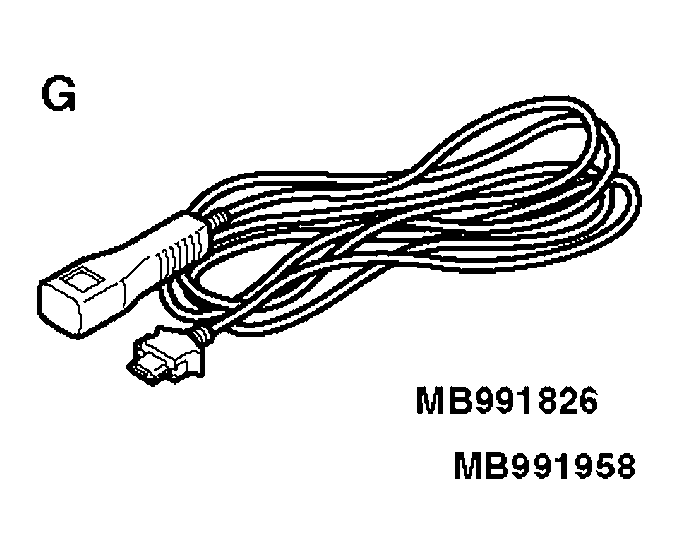

G: MUT-III trigger harness

MB991824-KIT

NOTE: G: MB991826 MUT-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.

For registration of Encrypted code

CAUTION: For vehicles with CAN communication, use MUT-III main harness A to send simulated vehicle speed. If you connect MUT-III main harness B instead, the CAN communication does not function correctly.
