Removal And Installation

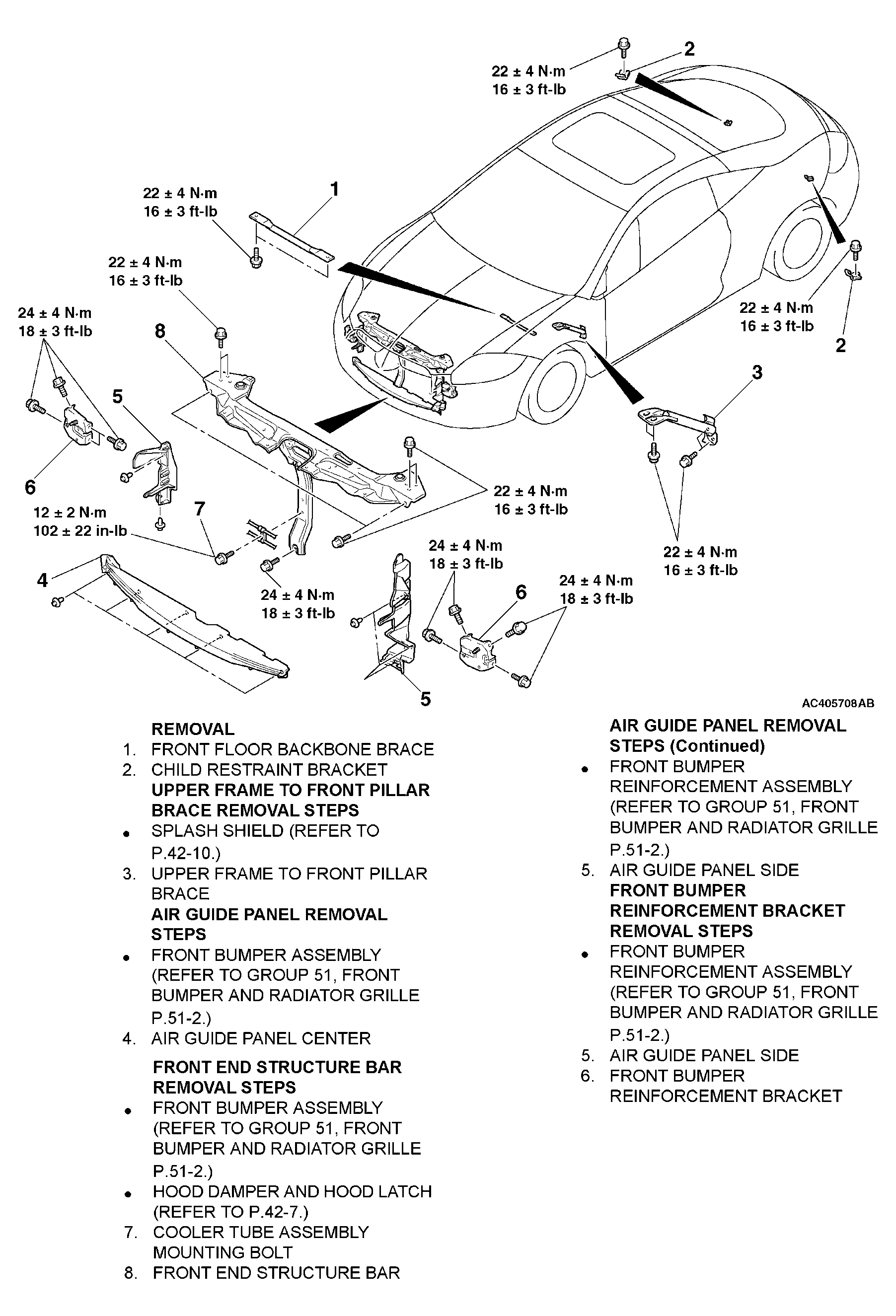

Fig 1: Removing And Installing Loose Panels With Torque Specifications
G04237662Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
