Removal And Installation: Notes

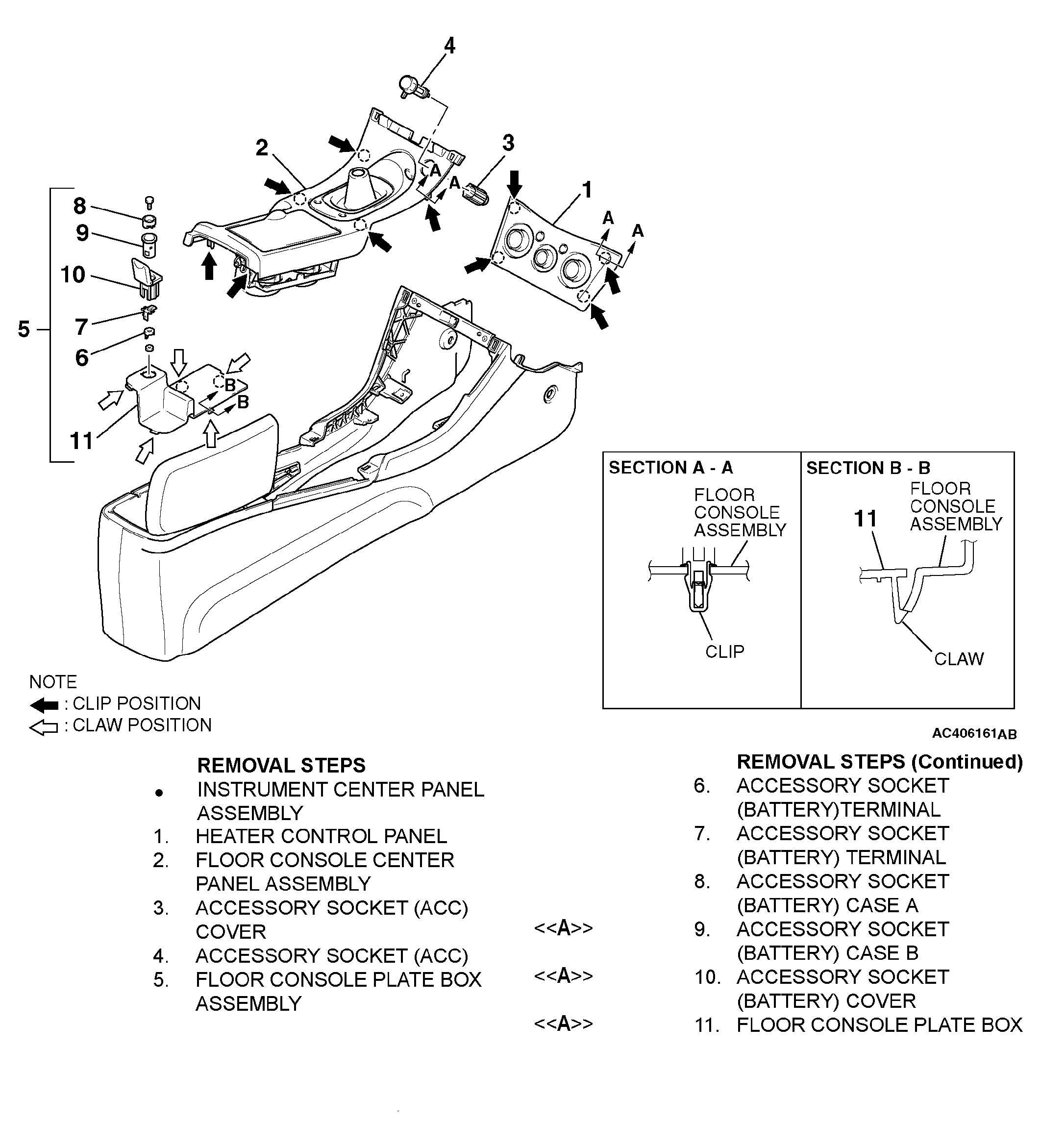

Fig 1: Identifying Accessory Socket Components
G04238925Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
