Immobilizer System: General Description: Operation: Notes

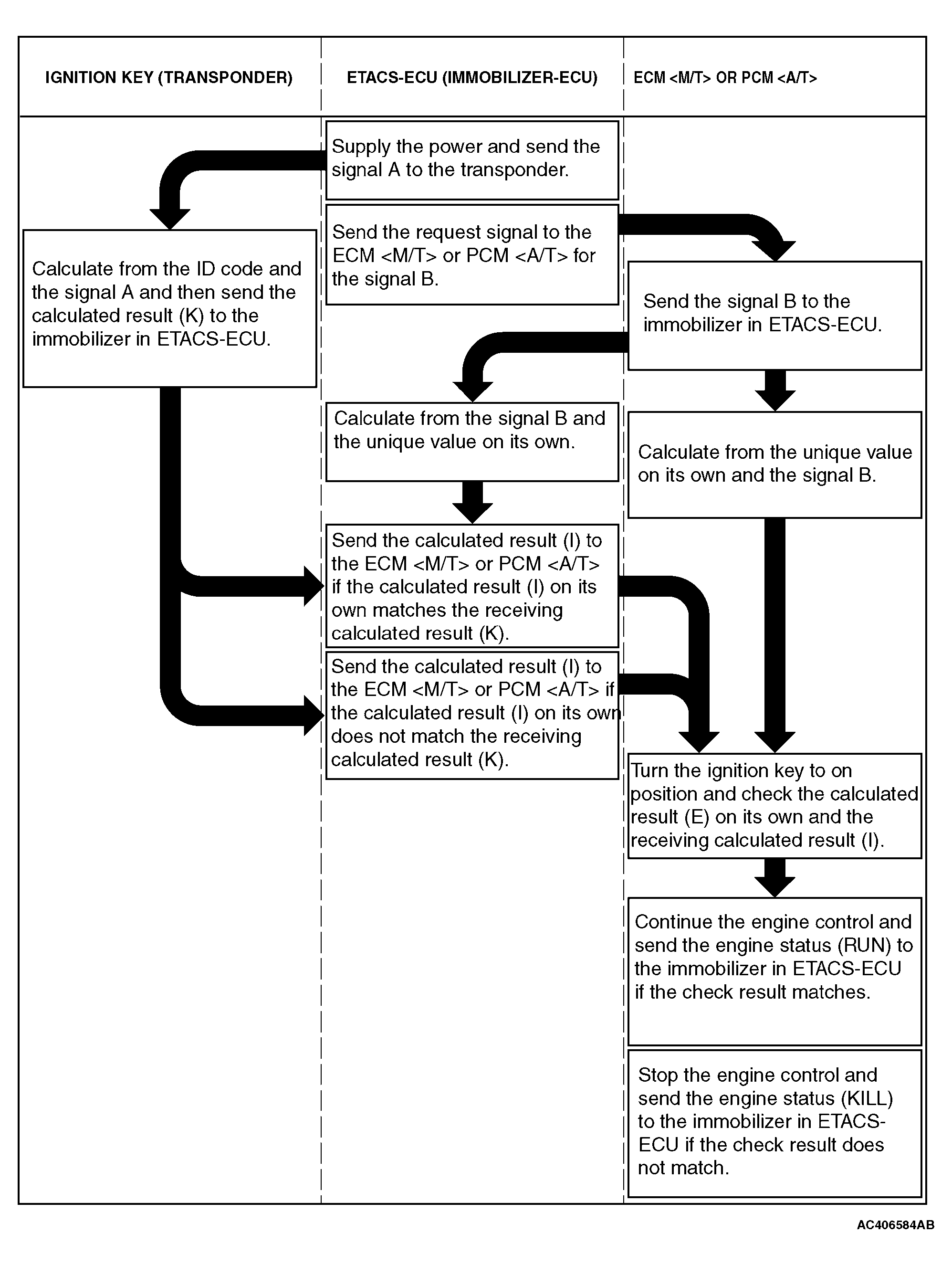

With the ignition switch "ON" position, the immobilizer system operates as shown in illustration.

Fig 1: Immobilizer System Operation Flow Chart
G04238687Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
