>> D << Front Axle CROSSMEMBER Stay Installation

Ensure that the crossmember mounting bolts have been tightened to 180 +/- 20 N.m (133 +/- 14 ft-lb), and then install the front crossmember stay with the self-locking nut.

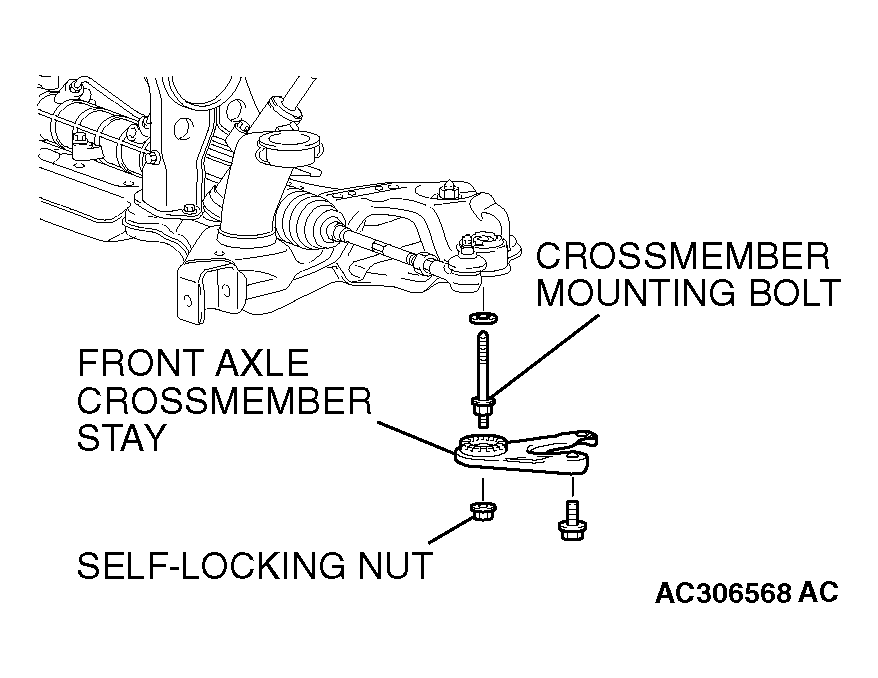

Fig 1: Installing Front Crossmember Stay With Self-Locking Nut
G04237415Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
